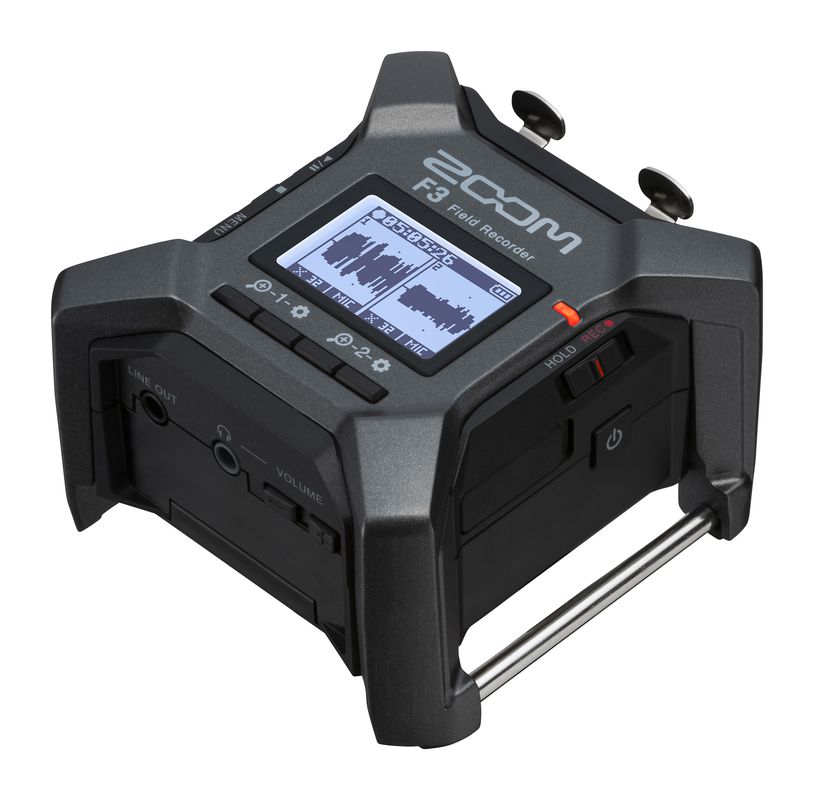

Zoom F3 kenttätallennin

Zoom F3 kenttätallennin (479,00)
- laaja dynamiikka uudella 32-bittisellä AD-muuntimella
- 2-kanavainen / 2-raitainen kenttätallennin
- 2 balansoitua XLR-tuloa

- 2-channel / 2-track field audio recorder
- Featuring 32-bit float recording and dual AD converters for full dynamic range and clip-free audio capture
- 2 discrete inputs with locking XLR connectors
- Input signals can be monitored with realtime waveform display on LCD
- Compact and Durable (can be attached to boom mic with velcro)
- High quality mic preamps provide a super-low noise floor (-127 dBu EIN)
- Record up to 192 kHz sampling/32-bit float WAV format, mono or stereo files
- Stereo Phone/Line Output jack with dedicated Volume control
- Records directly to microSDHC and microSDXC cards up to 1 TB
- Wireless iOS/Android* remote control available through optional BTA-1 Bluetooth adapter (*Android version to be released in 2022)
- Use as 2-in/2-out USB audio interface (up to 24-bit/96 kHz)
- Over 8 hours of operation with two AA alkaline batteries
- Runs on only 2 standard AA batteries or AC adapter (AD-17) or USB battery pack
- Wireless timecode synchronization (*Optional BTA-1 Bluetooth adapter and UltraSync Blue device by Timecode Systems are required.)

Specs

Input and output channels
Inputs
- MIC/LINE (mono): 2
- Outputs LINE OUT: 1
PHONE OUT: 1

Inputs
MIC/LINE (mono)
Connectors: 2 XLR (2: HOT)
Input gain: Adjustment unnecessary (dual AD converter circuits used)
Input impedance: MIC: 3 kOhm or more
LINE: 3 kOhm or more
Maximum input level: MIC: +4 dBu
LINE: +24 dBu
Phantom power: +24/48 V, Combined channel total of 10 mA or less
Equivalent input noise: -127 dBu or less (IHF-A) when waveform magnification is ×1024 with 150 O input

Outputs
LINE OUT
Connector: 1 stereo mini jack
Maximum output level: +1 dBu
Output impedance: 100 Ohm or less

PHONE OUT
Connector: 1 stereo mini jack
Maximum output level: 50 mW + 50 mW (into 32 O load)
Output impedance: 15 Ohm or less

Recorder
Maximum simultaneous recording tracks: 2
Maximum simultaneous playback tracks: 2
Recording format: WAV, 44.1/48/ 88.2/96/192 kHz, 32-bit float mono/stereo, BWF and iXML formats supported
Recording media: 4 - 32 GB cards compatible with the microSDHC specification, 64 GB - 1 TB cards compatible with the microSDXC specification

Display
LCD with backlight (96×64 resolution)

USB
Connector: USB Type-C, Use a USB cable that supports data transfer. USB bus power is supported.
Audio interface operation: USB2.0 High Speed, 44.1/48/88.2/96 kHz, 24-bit, 2-in/2-out
Mass storage operation: USB 2.0 High Speed

REMOTE
Dedicated wireless adapter (ZOOM BTA-1)

POWER
2 AA batteries (alkaline, NiMH or lithium)
AC adapter (ZOOM AD-17): DC 5 V/1 A
USB bus power is supported.
