Tascam BO-16DX/IN Breakout Box

Tascam BO-16DX/IN Breakout Box
- Breakout Box with 16 Bal. I/P XLRF to 2xSUB-D25

BO-32DE, BO-16DX/IN and BO-16DX/OUT are versatile breakout boxes that provide up to 32 balanced analogue audio inputs/outputs for audio devices equipped with D-sub audio inputs/outputs like the Tascam ML-16D/ML-32D or older multi-track recorders like the Tascam DA-98HR or DA-78HR, for example. They can also be used with any other product fitted with D-sub connectors compatible with standard Tascam pin assignment according to AES59-2012.

- 16-channel balanced audio input breakout box for ML-16D/ML-32D or other products with compatible D-Sub connectors

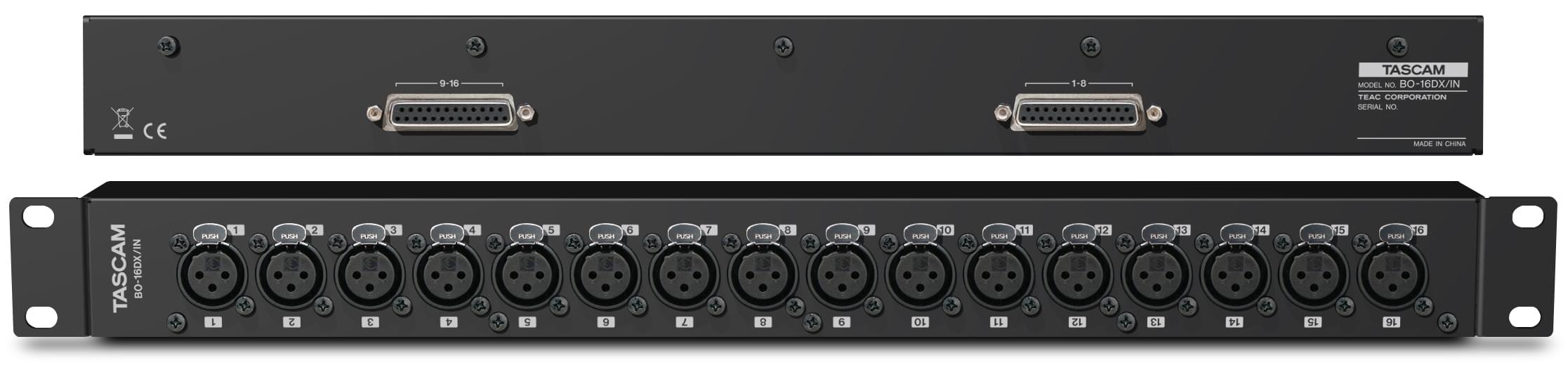

- 16 XLR female connectors on front panel for balanced audio inputs
- Two 25-pin D-Sub connectors (8 audio channels each) on rear panel with standard Tascam pin assignment (AES59-2012)
- Rugged metal chassis
- 19-inch rackmount (1U)
- Removable rackmount ears can be attached to either front or rear
- Dimensions (w × h × d): 483 mm × 44 mm × 55 mm
- Weight: 0.9 kg
- Cables not included
