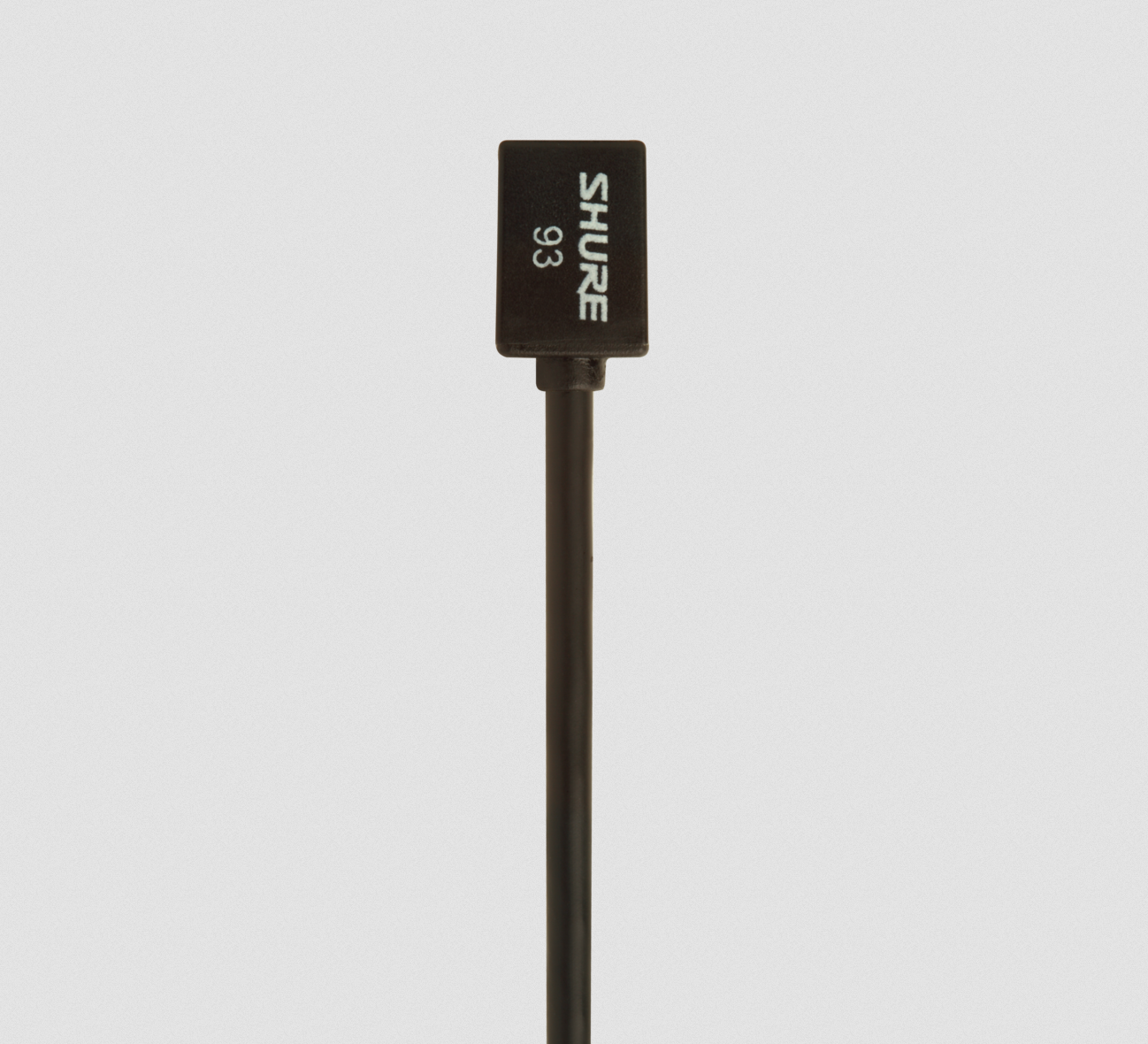

Shure SM93 Lavaliermikrofoni

Shure SM93 rintanappimikrofoni

Monisuuntainen miniatyyrimikrofoni tarjoaa täydellisen, selkeän äänen puhesovelluksissa, kuten lähetyksissä ja luennoissa. Ominaisuuksiin kuuluu tasainen laajennettu taajuusvaste ja monipuoliset asennustarvikkeet vähäisen näkyvyyden takaamiseksi.

The SM93 is supplied with a sew-on mounting bracket, a mounting block with attached tie bar, and an acoustic windscreen to minimize wind noise in outdoor applications. It is also supplied with a dual mounting block with attached tie bar.

Features:
- Subminiature lavalier design; ideal size for theater, television broadcasting, video, film, and sound reinforcement
- Small, inconspicuous mounting hardware
- Full, clear sound comparable to larger microphones
- Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
- Controlled low-frequency rolloff reduces low-frequency clothing and room noise
- Low distortion, wide dynamic range
- Uniform omnidirectional polar pattern
- Preamplifier assembly (SM93) can be pocketed, strapped to the body, or clipped to belt or waistband
- Wide-range phantom powering (SM93) accepts all commonly used voltages

Specs:
Type: Condenser (electret bias)
Frequency Response: 80 to 20, 000 Hz, dB/octavebelow 100 Hz
Polar Pattern: Omnidirectional, uniform with frequency
Output Impedance: rated at 150 Ohm (90 Ohm actual) Recommended minimum load impedance: 800 Ohm (May be used with loads as low as 150 Ohm with reduced clipping level)
Output Level: open circuit voltage: -43 dBV/Pa(7 .0 mV)
Output Clipping Level: at 1 kHz, -18 dBV (0.13 V) minimum
Total Harmonic Distortion: Less than 1% at 120 dB
Maximum SPL: 120 dB
Dynamic Range (Maximum SPL, A-weighted): 98 dB
Output Noise (equivalent SPL)
A-Weighted: 22 dB typical
weighted per DIN: 26 dB 45 405
Hum Pickup: -4 dBequivalent SPL in a 1millioersted field (60 Hz)
Signal-to-Noise Ratio: 72 dB at 94 dB SPL (IEC 651)
Polarity: Positive pressure on microphone diaphragm produces positive voltage on pin 2 relative to pin 3 of preamplifier output cable connector
Recommended Operating Voltage: 11 to 52 V DCphantom. Protected against reverse voltage application
Current Drain: 0.33 mA
Cable: Black 1.27 m (4.17 ft), attached, two-conductor, shielded, terminated by miniature Connector Type (TA4F)
Net Weight:
Microphone: 16 g (0.57 oz.)
Preamplifier: 118 g (4.17 oz.)
1 Pascal = 94 dB SPL
