Kabeltronik CPC2 Hybridikaapeli

Kabeltronik CPC2 Hybridikaapeli (19,90/m)
Rajoitettu tarjous!
- Hybridikaapeli 2x2x0.22m2 + 3x2.5mm2
- 2 x linja + 3 erillistä sähköjohdinta
- 2 x 2x0.22 mm2 (AES/EBU/DMX) linja + 3x2.5mm2 virta
- Esim. DMX-, mikrofoni tai balansoiduksi linjakaapeliksi.
- Kaapelin ulkohalkaisija 12,5 mm
- 225 g / m
- Metrihinta

Application / Description

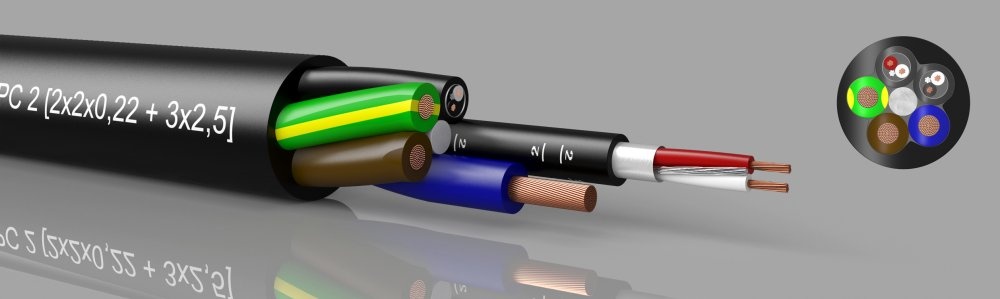

Hybrid cable with 2 shielded data pairs (audio pairs) and 3 power-cores. Operational ranges are e. g. control of active speakers or DMX-applications.
Small outer diameter, very flexible, audiopairs 110 Ohm digital.
Product range

bare stranded copper wire
Structure of conductor: 28 x 0,10 mm
Conductor dimension: 0,22 qmm
number of cores: 4
number of pairs: 2
Element shield: AL/PT Foil + drain wire
Element jacket: PVC
Characteristic impedance: 110 Ohm +/- 10%
