JTS Wireless Guitar System langaton kitarajärjestelmä

JTS Wireless Guitar System UR-816PD / UT-16GTP (469,00)
- Langaton Diversity instrumenttijärjestelmä erityisesti kitaralle
- Erillistä vyölähetintä ei tarvita
- Taajuusikkuna 640 - 664 MHz

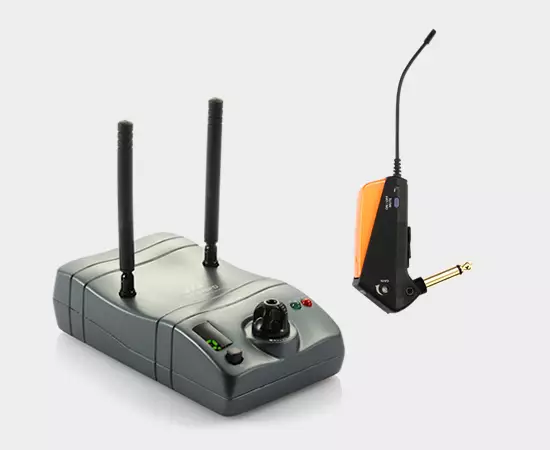

- Sisältää pedaalilautaan mahtuvan vastaanottimen ja kätevän pienikokoisen kitaralähettimen
- UHF-taajuus 16 valittavalla kanavalla
- Balansoitu XLR-ulostulo ja balansoimaton 6,3mm plugiulostulo
- Ammattiominaisuudet: diversity, UHF-alue, valittavat taajuudet

UR-816PD:

- Preset 16 selectable UHF channels.
- Single transmitter operation.
- Diversity technology prevents dropouts in the RF link.
- PLL synthesized technology.
- Noise mute and pilot tone squelch.
- Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
- Tuned antennas maximize the effective range of the wireless link.
- Compact space design.

UT-16GTP :

- Sub miniature guitar transmitter with patent pending design.
- UHF PLL 16 preset selectable channels.
- Powered by one AAA battery for over 8 working hours.
- Over 60 meters of stable operation distance.
- High signal to noise ratio.
- Standby function provided for stable wireless link.
- Provide great convenience to guitar player.

SPECIFICATIONS

UR-816PD

- Frequency Preparation: PLL Synthesized Control
- Carrier Frequency Range: 502-960 MHz
- S/N Ratio: >105dB
- T.H.D. <0.6%@1KHz
- Display:LED
- Display Contents: Antenna A/B, RF/AF Status
- Controls: Power On/Off, Channel Selecting, Audio Level
- Audio Output Level: -12dB
- AF Output Impedance: 600O
- Squelch.: Pilot Tone, Noise and Mute
- Operation Voltage: 9-15 VDC, 200mA
- Output Connector: 1 Unbalanced Ø6.3mm phone jack
- Dimensions: 124mm (W)* 33mm (H)* 73mm (D)

UT-16GTP:

- Frequency Preparation: PLL Synthesized Control
- Carrier Frequency Range: 502-960 MHz
- RF Outputs: Maximum 10mW
- Stability: +- 10KHz
- Frequency Deviation: ±48KHz
- LED Display: Power On/Off, Low battery
- Controls: Power On/Off, AF Level, Channel Selecting, Mute
- Spurious Emissions: <-50 dBC
- Audio Frequency Response: 40-18,000 Hz
- Battery: LR03, AAA 1.5V
