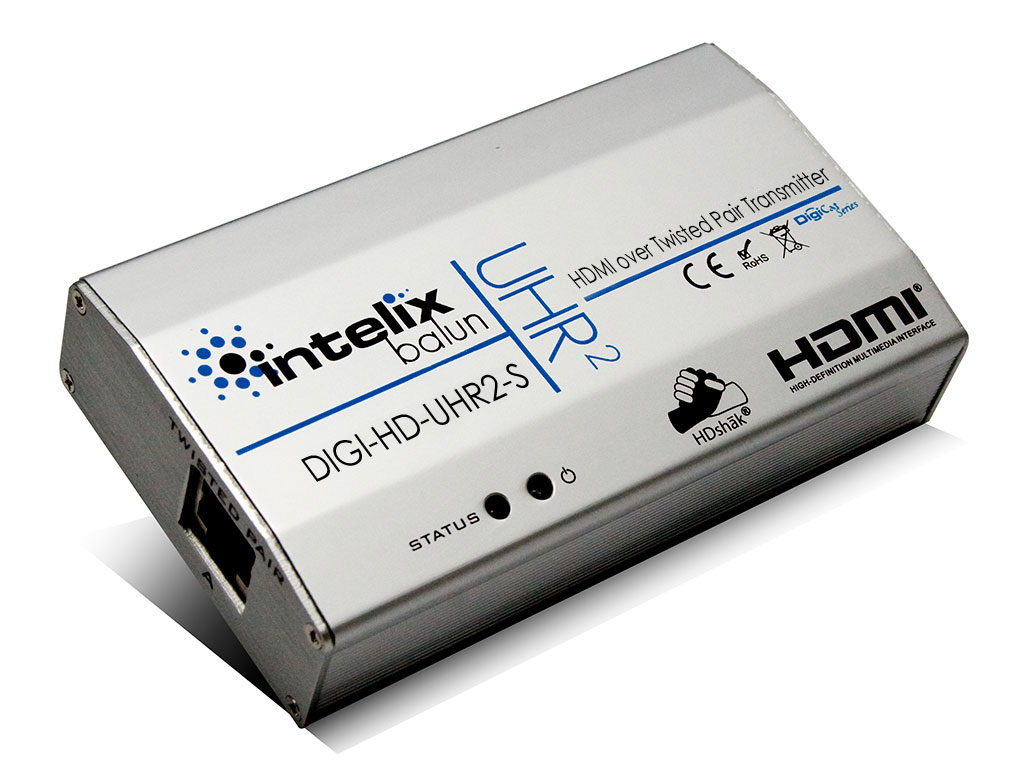

DIGI-HD-UHR2-S HDMI lähetin

DIGI-HD-UHR2-S lähetin HDMI
- erikoistarjous sisällä olevista lähettimistä

The Intelix DIGI-HD-UHR2 transmits HDMI up to 300’ over a single twisted pair cable. Built-in HDshak® technology provides dynamic HDMI, EDID/DDC and HDCP mode selection, gauranteeing performance and image quality. Plus, onboard HDMI amplification and buffering allows multiple extenders to be daisy-chained for greater distances.

The DIGI-HD-UHR2 features electrostatic discharge (ESD) protection circuitry which safegaurds the HDMI circuit against static electricity and other destructive stray voltage.

Maximum Distance (Cat 5e): 1080p: 100’ 1080i/720p: 200’
Maximum Distance (Cat 6): 1080p: 150’ 1080i/720p: 300
Supported Video Resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p 8, 10, 12 bits per channel
Supported Audio: Dolby TrueHD 7.1, Dolby TrueHD 5.1, Dolby Digital 5.1, DTS-HD Master Audio 7.1, DTS-HD Master Audio 5.1, DTS 5.1, PCM 2.0, PCM 5.1
Video Amplifier Bandwidth: 1.65 Gbps
Output Video: HDMI 1.3 with HDCP
Compliancy: HDMI 1.3b, HDCP
Input DDC Signal: 5.0 volts p-p (TTL)
Input Video Signal: 0.5 to 1.0 volts p-p
Cabling: one twisted pair cable required; minimum grade of Cat 5e
Connectors: one (1) HDMI, one (1) shielded RJ45
Maximum Daisy-Chains: 3 sets (approx. 450’ w/Cat 5e)
Operating Temperature: -5 to 35 degrees C
Operating Humidity Range: 5 to 90% non-condensing
Dimensions: 4.38” x 2.50” x 1.00”
Enclosure: metal
Max Power Consumption: 1.5 watts
Power Supply Requirement: power required on send and receive end
Power: 5 VDC
Regulatory: CE, RoHS
Shipping Weight: 1 lbs.
Intelix Part Number: DIGI-HD-UHR2
ESD Protection: yes
Diagnostic Indicators: power and status LEDs
Included Accessories: (2) power supplies
Mounting: AVO-CLIP-F
Similar Part Numbers: DIGI-HD-UHR2-S: transmitter DIGI-HD-UHR2-R: receiver
