Atlona HDVS-RX HDMI Scaler Receiver

Atlona HDVS-RX HDMI Scaler Receiver
- For HDMI transmission over category cable
- Receives AV signals up to 1080p/60Hz and 1920×1200 video with embedded multi-channel audio and control signals up to 230 feet (70 meters)
- Features include balanced analog audio de-embedding, RS-232 control, and Power over Category cable (PoCc) for sending remote power to the HDVS series transmitter
- The receiver offers advanced scaling capabilities including image adjustment capability and an Auto-set feature for matching incoming signals to the display’s native resolution
- Designed for use with the HDVS series transmitters, the transmitter/receiver pair enables auto display on/off, auto-switching, 3rd-party control, and other features
- The built-in scaler works with matrix switchers to optimize source signals with different resolutions to a display’s native resolution
- The AT-HDVS-RX is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources

Package Contents:
- HDVS-RX HDMI Scaler Receiver
- trs to D-sub adapter
- 5pin audio female connector
- 2pin power female connector
- 24V DC captuive screw power adapter

Analog to Digital Transition

The Atlona HDVS series was designed to smooth the transition from analog to digital displays, allowing advanced HDMI display devices to be used with legacy VGA sources. The series also adds the simplicity and performance of HDBaseT technology to eliminate multiple cable runs and signal degradation that can occur with long transmission lines. Cost-effective and easy-to-terminate category cable provides additional integrator and benefits.

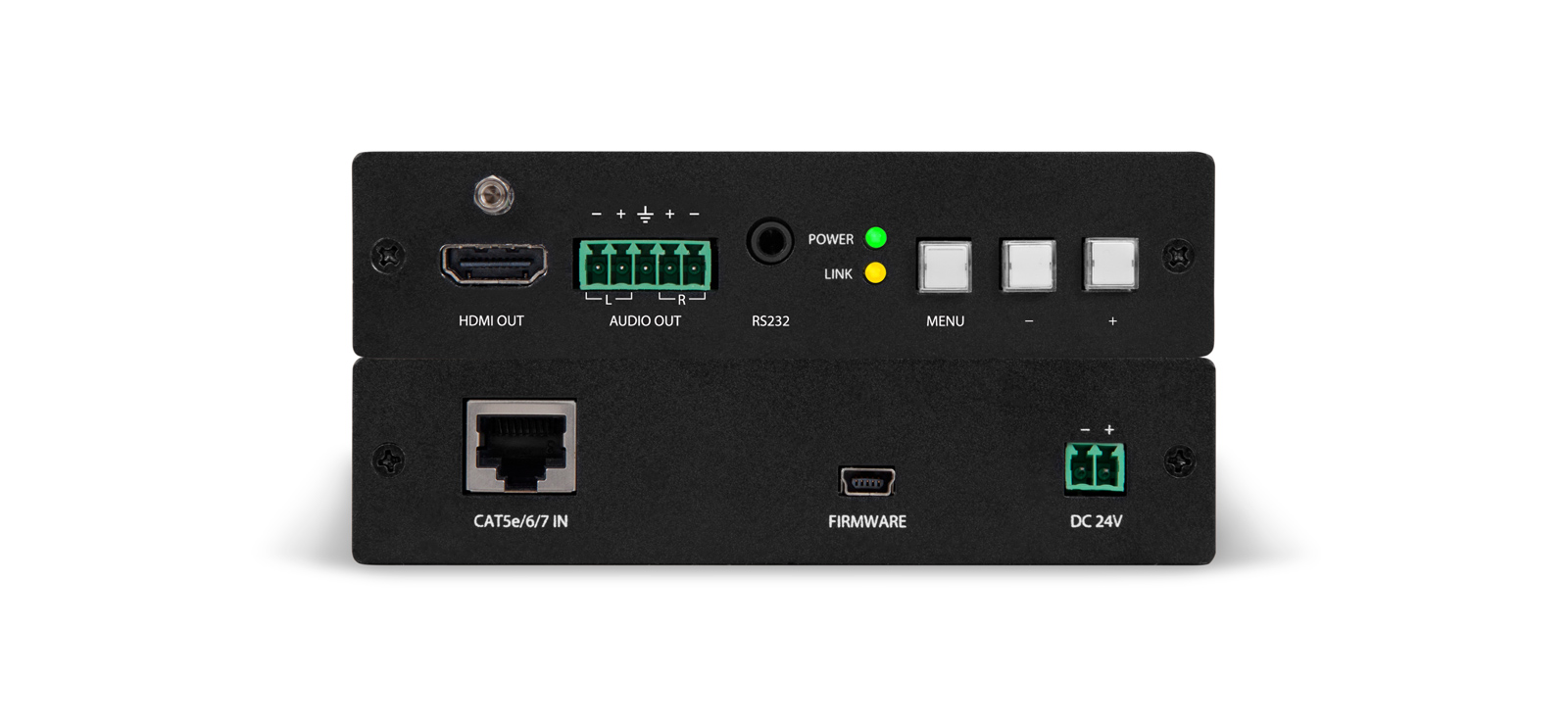

The AT-HDVS-RX offers an HDBaseT input and scaled HDMI output with audio de-embedding on a balanced captive screw connector. The receiver supports Power over Category cable (PoCc™) to power the remote transmitter. Used with HDVS series transmitters, the system provides a complete AV system with switching, distribution, scaling, and control that ensures overall system compatibility and ease-of-installation.
