ART HP-1 kuulokevahvistin

ART HP1 kuulokevahvistin (99,00)
- Paristokäyttöinen kuulokevahvistin
- Kompakti 2-kanavainen kuulokevahvistin
- Input kytkettävissä joko balansoitu mono tai balansoimaton stereo moodiin
- Käyttöaika yli 40 tuntia kahdella AA-paristolla
- Sisääntulo: XLR (balansoitu monotulo) / TRS plugi (balansoimaton stereotulo)
- Kuulokeulostulo 3,5mm ministereoplugilla
- Vyöklipsi
- Mitat: 4.6 cm x 13.7 cm × 43.cm
- Paino: 230 g

Huom! Laitteen sisällä on kytkin, joka pitää laittaa mono-asentoon, jos äänilähde on AUX-mono!
The switch should be set to mono when you are using the
HP-1 with a mixer’s aux send or any other mono source
(near battery position) and set to stereo when you are
connected to a headphone output or other stereo sources
(near input connector).

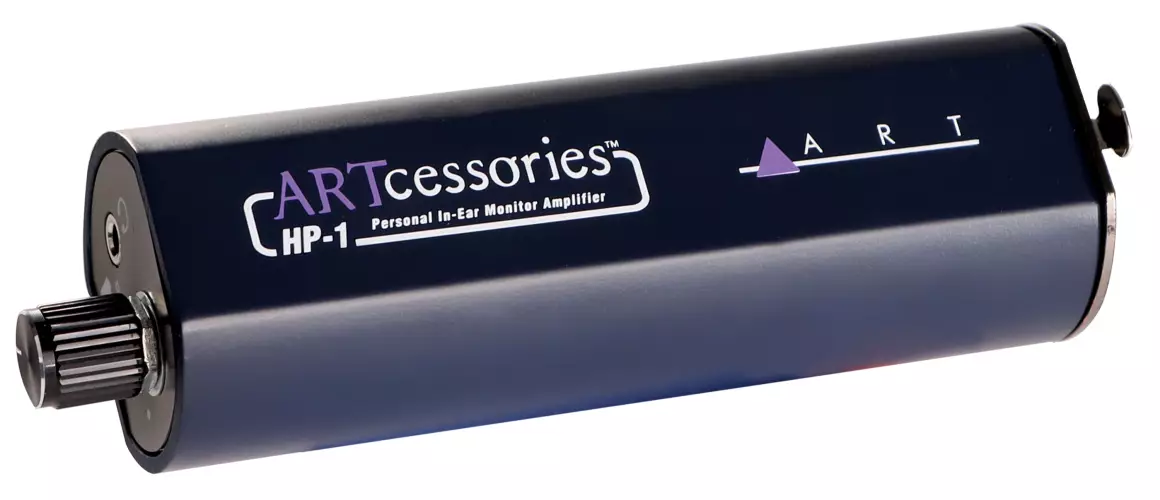

The HP-1 is a compact, battery-powered headphone amplifier for players who prefer a wired connection for their in-ear monitors.

It features a locking Combo input for XLR and 1/4 TRS connections, and an 1/8 headphone output with a volume control. The HP-1 is switchable for mono or stereo operation, and provides over 40 hours of performance from two AA batteries.

With a rugged enclosure and heavy-duty jacks, the HP-1 is built to withstand the rigors of the road and deliver clear, powerful, reliable sound.

Features:

- Locking Combo Input Jack
- Balanced Mono / Unbalanced Stereo Switch
- 1/8" Headphone Output
- Over 40 Hours of Battery Life (2x AA)
- Battery Status LED
- Sturdy Belt Clip

Specifications:

- Inputs: 1/4" /XLR combo jack
- Outputs: 3.5mm Jack (1/8”)
- Input Impedance: 5K ?
- Maximum Output Level: 105mW @ 0.1% THD
- Maximum Gain: +9 dB
- Total Harmonic Distortion: = .02% @1kHz Typical.
- Power Requirements: 2-AA batteries Included
- Dimensions (LWH): 1.6" x 72” x 5.4, (4.6 cm x 13.7 cm × 43.cm ).
- Weight: 0.51 lbs. / 0.23kg

1. The input Combo jack, for connections to a monitor mix as
an example. Accepts both XLR and TRS ¼-inch jacks.
2. The Volume knob controls the output level and will power
down the HP-1, when turned fully counterclockwise.
3. The green led will light when the power is on and acts as
a battery indicator. Replace the batteries when red.
4. The Headphone output has a 1/8” stereo jack.
5. The Belt clip attaches to a belt or pant waistline for hands-
free use.
6. The Battery storage area button. Pressing the button and
sliding the shell toward the headphone jack opens the
compartment.
7. The Battery storage section allows the unit to be powered
by a pair of AA batteries. Please observe the correct
polarity when inserting new batteries.
8. The switch should be set to mono when you are using the
HP-1 with a mixer’s aux send or any other mono source
(near battery position) and set to stereo when you are
connected to a headphone output or other stereo sources
(near input connector).
