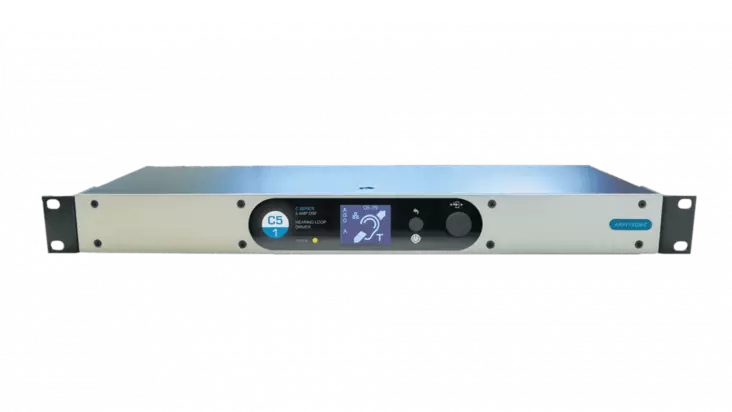

Ampetronic C5-1 induktiosilmukkavahvistin

Ampetronic C5-1 induktiosilmukkavahvistin
- n. 150-250 m2 silmukka pinta-alalle
- Mikrofoni- ja linjatason sekä 100V linjatulot
- Ampetronicin C-sarjan induktiosilmukkavahvistimet ovat merkittävä kehitysaskel apuvälineteknologiassa.
- Yksinkertainen digitaalinen käyttöliittymä tarkkaa asetusta ja säätöä varten
- Alhaiset käyttö- ja ylläpitokustannukset
- Erittäin energiatehokkaat D-luokan vahvistimet
- 1U Räkkiasennettava, sisäinen muuntaja helppoa räkkiasennusta varten
- Taajuusalue: 80Hz - 65kHz

The C Series hearing loop drivers from Ampetronic mark a substantial development in hearing loop technology for assistive listening.
Compact, elegant, and sturdy, C Series units, the most versatile and powerful solutions available in their class, feature digital signal
processing and networking functionality. Dante options are available with a dedicated input for network audio.
Seven class 'D' drivers (four dual output and three single output models) make up the C Series; offering a significant increase in
energy efficiency over existing solutions in a similar price range.
The drivers feature a simple digital user interface, enabling accurate adjustment and providing clear indicators, system diagnostics
and built-in test tones. C Series drivers are fully networkable with a Wi-Fi accessible standard browser based control panel, for
remote set-up, monitoring and email alerts, and with Loopworks Measure LoopLink for easy test and commissioning.

Features
•
Simple digital interface enabling accurate adjustment
•
Single or dual output options. Dual outputs featuring
accurate and stable 90° phase shift
•
Highly energy efficient Class-D amplifiers with low
heat dissipation providing low running and
maintenance costs
•
Networking with browser interface for remote
reporting, adjustment, active status monitoring and
remote fault reporting via email, SNMP or Telnet
•
Built-in test tones
•
Compatible with the Loopworks Measure LoopLink
app for direct and automated driver control
•
AGC and dual slope configurable MLC (including HF
boost option for un-even loss scenarios)
•
Up to 3,200m2 area coverage
•
Compact 1U rack mount unit with internal
transformer for simple rack installation
•
Optimised for speech frequencies with unmatched
intelligibility and capable of high quality musical
reproduction
•
Dante option with AES67
•
100V line input
•
Industry standard Phoenix connectors
•
Data compliant with IEC 62489-1 Standard






The range goes from 5 to 14 Amps RMS current and 20 to 48 Volts RMS per output with the C14-2 providing the most powerful
loop driver on the market. This makes them suitable for a wide range of applications and room sizes. Installation can be performed
with total confidence; unique, multi-stage filtering ensures compatibility with other systems and global EMC regulations. The C
Series also boasts dual slope Metal Loss Control that caters for a wide range of metal loss frequency characteristics (network
versions only).
