Alva Analog 10 m DSub25-8xXLRu kaapeli

Alva Analog 10m D-Sub 25 uros - 8 x XLR3 uros kaapeli (239,00)

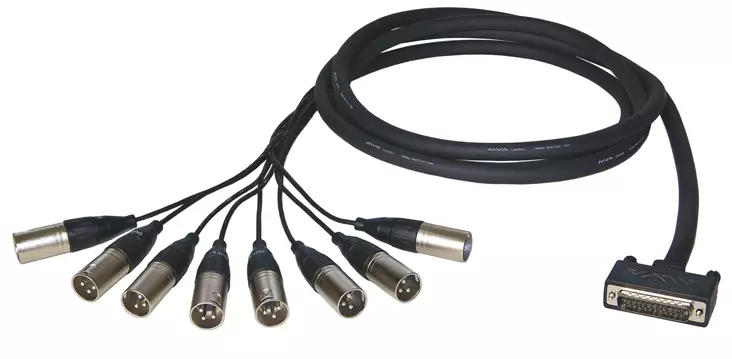

Alva Analog Breakout-Cable, D-Sub 25 male - 8x XLR3 male

Specifications

• Cable Color: black
• Numbered XLR fan-out
• D-sub: 25-pin male, UNC 4/40 thread

• Cable Ø: 15 mm

  D-Sub Pin-Out Diagramm

  Channel 1	Channel 2	Channel 3	Channel 4
  Pin 24= (+)	Pin 10= (+)	Pin 21= (+)	Pin 7 = (+)
  Pin 12= (-)	Pin 23= (-)	Pin 9= (-)	Pin 20= (-)

  Channel 5	Channel 6	Channel 7	Channel 8
  Pin 18= (+)	Pin 4= (+)	Pin 15= (+)	Pin 1 = (+)
  Pin 6= (-)	Pin 17= (-)	Pin 3= (-)	Pin 14= (-)
  GND is connected to Pins: 2, 5, 8, 11, 16, 19, 22, 25. Pin 13 is not connected
