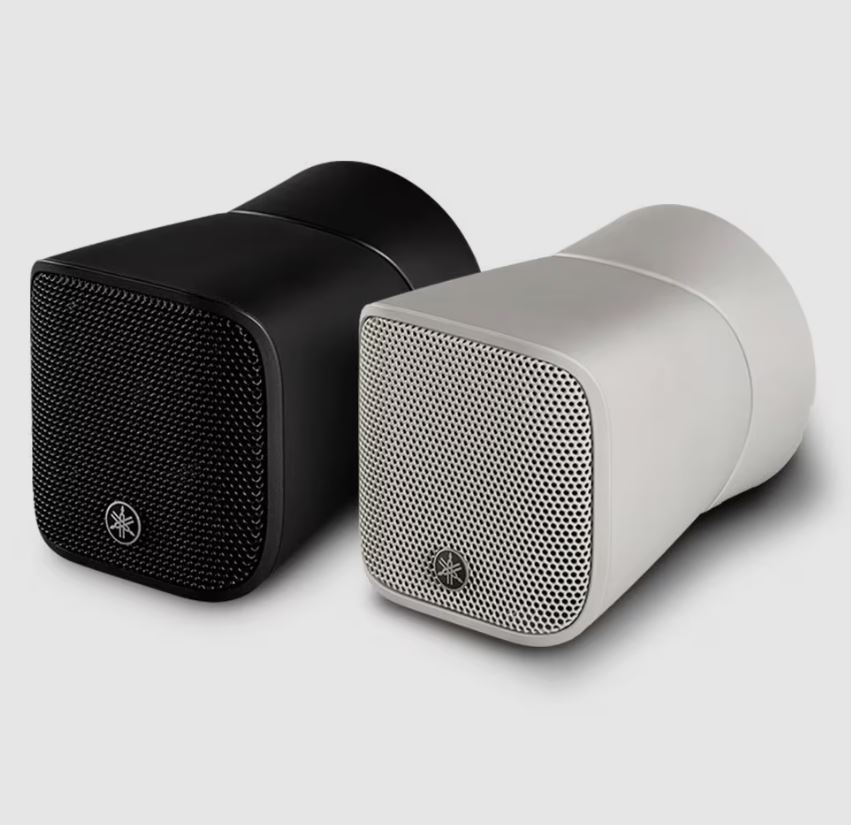

Yamaha VXS1MLB asennuskaiutin

Yamaha VXS1MLB asennuskaiutin

Full-range compact surface mount speaker with a 1.5" driver
- Newly developed 1.5-inch full-range driver unit
- Wide 170° horizontal and vertical dispersion
- Compact 62mm x 62mm form blends unobtrusively with any décor
- Dedicated wall/ceiling mount hardware supplied
- Black and white models available
- Packaging single
- Paintable enclosures and grilles

General specifications:
Speaker type: Full-range, acoustic suspension type
Frequency range (-10dB): 180Hz-20kHz
Nominal coverage: Horizontal (H) 170°, Vertical (V) 170°
Components: LF-HF 1.5" Cone
Power rating:
- NOISE: 5W
- PGM: 10W
- PEAK: 20W
Nominal impedance: 8 Ohm
SPL (Sound Pressure Level):
- Sensitivity (1W; 1m on axis): 79dB SPL *1
- Peak (Calculated): 92dB SPL *2
I/O connectors: Euroblock (2 pin) × 1
Finish:
VXS1MLB: Black (approximate value: Munsell N3)
VXS1MLW: White (approximate value: Munsell N9)
Dimensions:
Width (W): 62mm (2.4") *3
Height (H): 62mm (2.4") *3
Depth (D): 82mm (3.2") *3
Net weight: 0.17 kg (0.37 lbs) *3
Accessories: Wall/Ceiling Bracket
Packaging: Packaged each
Certificate: NFPA70, CE, RoHS
Options:
CMA1MB / CMA1MW: Ceiling Mount Adapter
RMA1MB: Rail Mount Adapter
