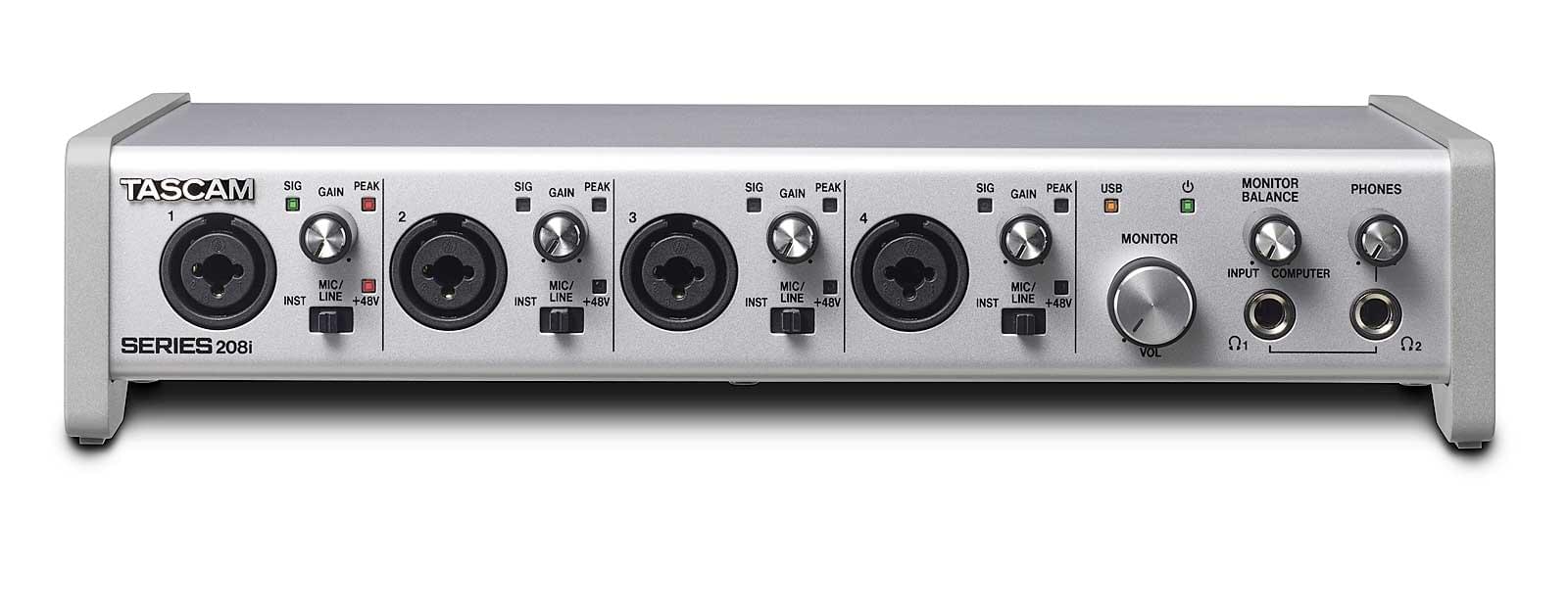

Tascam Series 208i Audio/MIDI-sovitin

Tascam Series 208i Audio/MIDI-sovitin
- Provides up to 20 audio inputs and eight audio outputs to a Windows or Mac computer or iOS device
- Audio resolution up to 192 kHz / 24 bit
- USB Audio Compliance 2.0 for iOS connection

The SERIES 208i audio/MIDI interface is the right choice for professional studio and live recording. It provides up to 20 audio inputs and eight audio outputs to a Mac or Windows computer or an iOS device, for recording and playback at up to 192 kHz / 24 bit and with the superb audio performance one expects from Tascam. Controllable with included custom software, this versatile USB interface is equipped with a powerful DSP input and output mixer with built-in digital reverb, compressor, phase invert and four-band EQ for each channel. Having this processor included internally eliminates all latency issues and takes the load off the computer allowing it to process the audio more efficiently. A new USB driver offers very high stability, ensuring reliable performance throughout all phases of your projects.

Hardware features
- Four analogue mic/line inputs on XLR/TRS balanced combo connectors
- High-grade Ultra-HDDA (High Definition Discrete Architecture) microphone pre-amps with ultra-low noise (EIN: –127 dBu)
- High-quality audio input circuits for low-noise recording
- Individually switchable 48-Volt phantom power on XLR inputs
- Each TRS input can be switched to instrument-level for direct recording of guitar or bass
- Gain controls, signal and peak indicators on each analogue input
- Two optical multi-channel audio inputs for expansion by a maximum of 16 additional inputs
- ideally suited for use with one or two Tascam SERIES 8p Dyna microphone preamplifiers
- S/MUX format with support for high sampling rates (ADAT-compatible)
- 16 inputs at 44.1/48 kHz
- 8 inputs at 88.2/96 kHz
- 4 inputs at 176.4/192 kHz
- Eight line outputs (balanced TRS)
- Line outputs 1–2 can be used as monitor output with level control
- Direct monitor option for low-latency monitoring
- Monitor mix control for adjusting the level balance between signals from external devices and signals from the computer
- Two 6.3-mm standard headphones outputs with level control (45 mW per channel)
- Wordclock input and output for integration with other digital equipment
- MIDI input, MIDI output
- USB 2.0 computer connection
- Power supply by dedicated PS-P1220E AC adapter (included)
- Rugged all-metal chassis

Software features
- In-house developed driver for Windows devices ensures stable operation with low latency
- Built-in DSP with mixer, routing and effects accessible through dedicated settings panel
- Compressor and 4-band EQ with low-cut filter on each input channel
- Phase invert, Bypass, Solo, channel Link and Mute buttons on each input channel
- Four Aux sends, switchable pre/post (Aux 1 used for internal reverb)
- Reverb effect with five presets and adjustable pre delay, reverb time, diffusion and return level (Reverb can be used up to 96 kHz only)
- Master section with Stereo fader, Aux Master controls and Mute button
- Comfortable routing of output channels
- Bundled with Cubase LE (64-bit Windows application), compatible with Cubasis LE
- Bundled with iZotope Neutron 3 Elements, AmpliTube and T-Racks plug-in effects
- Automatic update function available for software, driver and firmware updates
- Compatible with major DAW software (Pro Tools, Live, Cubase, Studio One, GarageBand etc.)
