Tascam MX-8A matriisimikseri

Tascam MX-8A matriisimikseri
- 8x8 Matrix Mixer w/DSP for installation 19"
- 1HE

The MX-8A is a 10×10 matrix mixer with eight mic/line inputs, eight line outputs and stereo USB I/O compatible with software- or cloud-based conferencing platforms. It offers powerful internal DSP mixing and routing plus multiple audio processing functions and is ideal for many applications including meeting rooms, huddle spaces, court rooms, restaurants, stores, banqueting rooms and others.

Hardware features
- Eight balanced mic/line inputs and eight balanced line outputs
- Euroblock connectors – ideal for permanent installation
- USB audio interface mode allows to record audio or play background music with a computer

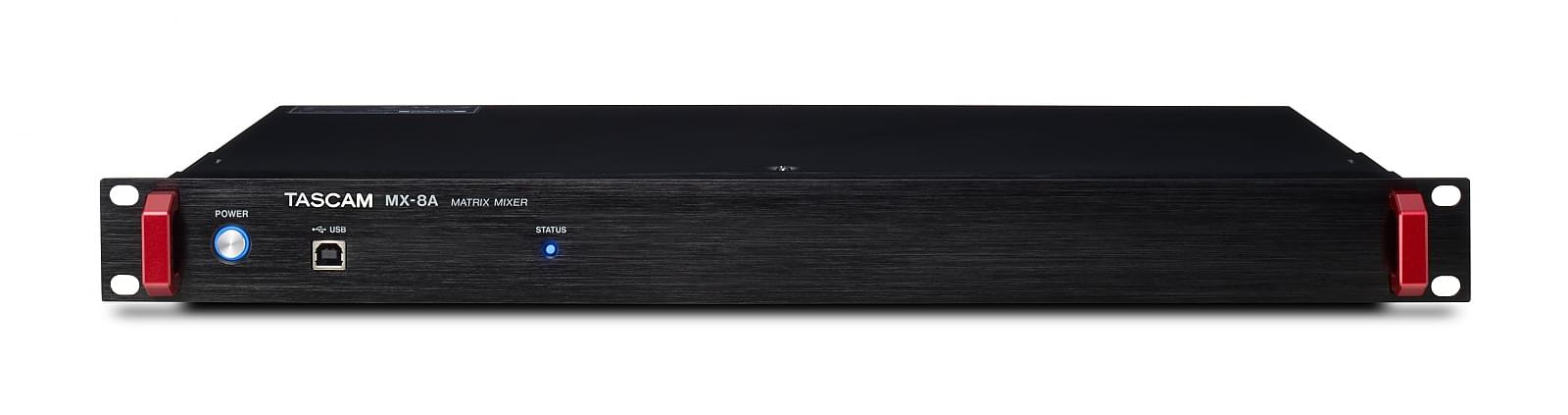

- Status indicator on front panel
- USB connector on front panel for easy connection of a computer, tablet or smartphone (is also used for firmware updates)
- High-quality internal power supply (no AC adapter)
- 19 inch rackmount size (1U)

Controllable via
- an Ethernet network (using the Tascam MX Connect computer application or the Tascam Mixer Protocol)
- RS-485 (using the dedicated RC-W100 remote controller)
- RS-232C

Software features
- Five different reference levels available to adapt to virtually any application in consumer, professional or broadcast environments (selectable via software)
- Powerful DSP mixer (controllable via software)
- Input features: phantom power on/off, phase, sensitivity, trim, automatic level control, 4-band equalizer, mute, fader
- Mixer features: Matrix mixer, ducking, ambient noise compensator (ANC), routing
- Outputs features: 10-band equalizer, limiter, delay, mute, fader, phase
- Up to 50 scene presets can be saved
- Timer event function allows presets to be switched at specific times (planned for a future update)
- Two types of control software available (compatible with Windows/Mac/iOS/Android devices):
- Tascam MX Connect for system integrators offers full access to virtually all settings
- Tascam EZ Connect for end-users is a simple app for only the most necessary settings

USB audio interface features
- Two audio inputs and two audio outputs when connected to a Windows/Mac computer or iOS/Android device
- Allows audio to be recorded / played back via Windows Media Player, iTunes or DAW applications
