Tascam Model 12 mikseri moniraitatallennuksella

Tascam Model 12 mikseri moniraitatallennuksella
- Kompakti all-in-one 10-kanavainen mikseri tallennusominaisuuksilla, DAW-ohjausmahdollisuudella ja USB-äänikortilla
- 10 kanavainen mikseri 8 mikrofonikanavalla
- 12-kanavainen tallennus ja 10-kanavainen playback
- 12 sisään / 10 ulos USB-äänikortti (USB C -liitäntä)
- 12-raitainen tallennus WAV/BWF-muodossa SD/SDHC/SDXC-korteille jopa 512 Gt:n asti
- 44,1–48 kHz
- 16/24-bittinen
- MIDI sisään/ulos
- Sisäänrakennettu efektiprosessori
- Kytkettävä phantom-syöttö +48 V
- Sisältää virtalähteen, USB A - USB C -kaapelin ja TRRS-kaapelin
- Mitat (L x K x S): 343 x 99 x 360 mm
- Paino: 4,3 kg

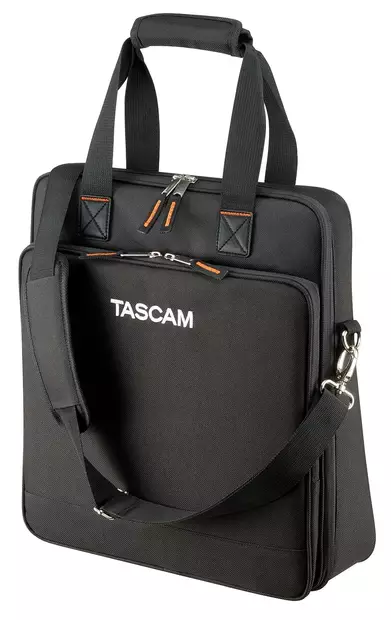

- Kuljetuslaukku saatavissa lisävarusteena

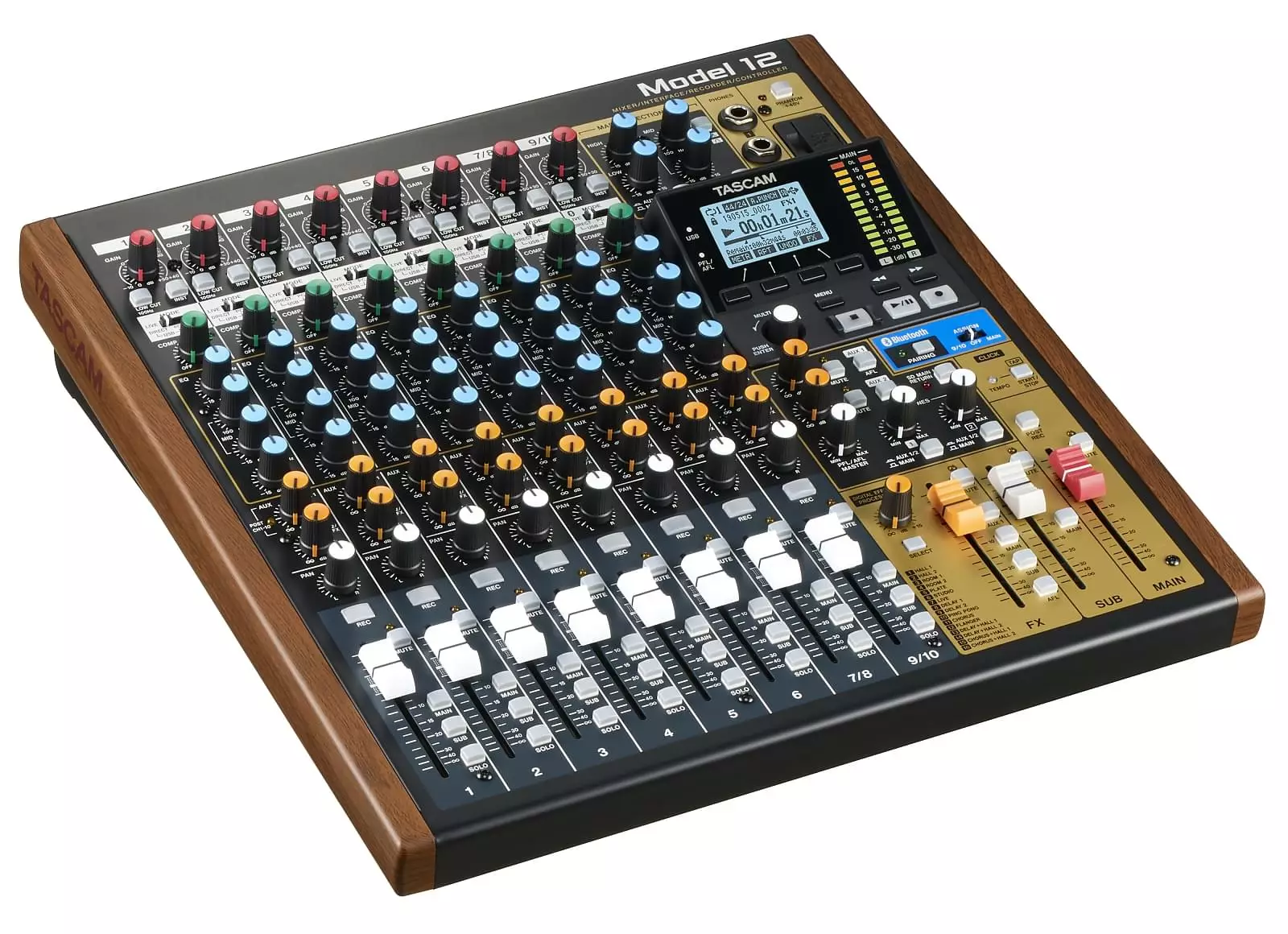

Tascam Model 12 is a compact all-in-one integrated mixing and recording suite designed for music and multimedia creators, songwriters and performers. It consists of a 10-input mixer, a 12-track version of the highly acclaimed Tascam multi-track audio recorder, USB audio interface, MIDI connectivity, DAW control functions, and unique podcasting capability including mix-minus and smartphone input.

Combining the feel of an analogue user interface with the efficient workflow and pristine quality associated with digital recording and production, the compact and affordable Model 12 supports your creative process from start to finish.

12-Track Recording and 10-Track Playback

The Model 12’s intuitive internal 12-track recorder creates WAV files of up to 24-bit/48 kHz audio quality directly to an SD card. Up to ten tracks can be played back simultaneously. Supporting metronome, punch-in/out, and overdubbing functions, the internal recorder also allows WAV files to be imported from another Tascam Model Series mixer like the Model 12, Model 16 or Model 24. And, of course, it is possible to export tracks in WAV file format which can then be imported directly into a DAW for further editing or production.
0-channel mixer with built-in 12-track recorder and USB audio interface

Mixer features

Ten analogue inputs on six mono and two stereo channels
Eight mono mic inputs on XLR connectors with switchable phantom power (48 V)
Ultra-HDDA microphone preamps on inputs 1–6
Eight channels can be used with high-impedance instruments like electric guitars/basses
Ten balanced line inputs (six mono, two stereo)
Multi-purpose stereo channel for input from mobile devices via Bluetooth or TRRS smartphone connector (CH 9/10)
Inserts on input channels 1 and 2
Mix-minus function on smartphone mini-jack input
Two Aux outputs (monitor, effects) and two stereo outputs with independent master faders (Main, Sub)
Monitoring can be selected between PFL (pre-fader), AFL (after-fader) and SIP (solo-in-place)
Dedicated click output with tap tempo feature
One-knob compressor for all input channels
Three-band equalizer with sweepable mids for all input channels
Switchable low-cut filter (100 Hz) on each channel
Semi-parametric EQ with sweepable mid band for aux or main outputs
Built-in Bluetooth receiver for wireless playback
On-board effects processor
16 effects types
Can be used on all input channels, aux busses, sub and main stereo bus
Can be turned on/off by an optional footswitch (Tascam RC-1F)
Compact 60-mm faders
12-segment LED output level meters
Dedicated Settings Panel application with meter bridge (added in v1.50)
XLR balanced outputs for main stereo bus
TRS balanced outputs for sub and aux outputs
Two headphones outputs with separate level controls

Recorder features

Tascam multi-track recording engine, uses SD cards as storage media (up to 512 GB)
Up to 12 tracks (10 input channels + stereo mix) can be recorded without the need for a computer
Recording/playback format: Linear PCM (WAV format, 44.1/48 kHz, 16/24 Bit)
Overdubbing, punch in/out recording
Multi-track playback for advanced live performance
Illuminated Play/Record/Stop buttons for better legibility in poorly lit environments

Audio interface features

USB audio interface for use with Windows (ASIO) and Mac (Core Audio) computers
Transfer to computer: 12 channels (all 10 inputs + stereo mix)
Transfer from computer: 10 channels, assignable to each channel input

Audio resolution 44.1/48 kHz, 16/24 bit
USB MIDI interface function
Simple DAW control support via HUI/MCU protocol emulation
Avid Pro Tools
Apple Logic Pro
MOTU Digital Performer
Steinberg Cubase
Ableton Live
Cakewalk by BandLab
PreSonus Studio One (since firmware v1.30)
Cockos Reaper (since firmware v1.30)
Steinberg Cubasis 3.3 (since firmware v1.30)

Other features

MIDI input and output
Support for MIDI timecode (MTC) and MIDI clock output with song position pointer (SPP)
Simple and quick menu operation with multi-jog dial
