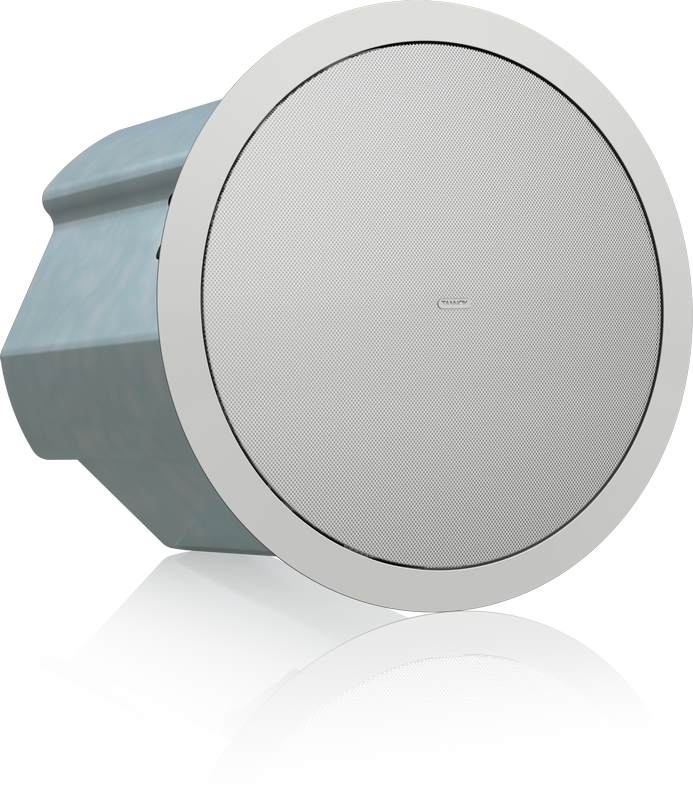

Tannoy CMS801DC BM kattokaiutin, valkoinen

Tannoy CMS801DC BM kattokaiutin, valkoinen (650,00)
Poistotarjous !
- Valkoinen kattoasennuskaiutin
- 8" 200mm Dual Concentric elementti
- Tehonkesto: 180 W, hetkellinen 360 W
- Impendassi: 8 ohm
- Suositeltu vahvistinteho 180W @ 8 ohm
- Suuri teho ja korkea herkkyys laajennetulla taajuusvasteella ja erittäin alhainen särötaso
- UV / säänkestävä UL94V-0 ABS etuosa
- Taajuusvaste (-3dB) (1) BM Back can 47Hz - 30kHz
- Äänenpaine: 112dB
- Väri: valkoinen

The CMS801 DC is extremely compact despite its larger format performance credentials. This full bandwidth, high power handling and high sensitivity ceiling monitor system is specifically designed for applications requiring the combination of higher output levels as well as premium sonic quality for music and speech reinforcement, exceptional intelligibility and long term reliability.

The design comprises a 200mm (8") Dual Concentric transducer mounted in a rigidly constructed injection moulded. vented front baffle. This is manufactured from paintable UV/weather resistant UL94V-0 ABS material. Spring loaded self-aligning clamps make for quick and easy installation as well as ensuring a secure, performance enhancing bond with the ceiling material. The zinc plated steel back can has an integrated, recessed termination box. The removable locking connector has screw terminals for secure wire termination and "loop through" facility. Strain relief is provided by a clamping mechanism for use with plenum rated cable or conduit.

CMS 801DC comes supplied with two tile support rails and one C-ring included in the package. A plaster (mud) ring is available as an optional accessory.

The CMS801 DC is also equipped with a low insertion loss 60 W line transformer, for use in constant voltage distributed audio systems, easily configurable to various tappings via front baffle mounted rotary switch.

Features:

200mm (8") point source Dual Concentric driver
High power & high sensitivity with extended frequency response and very low distortion
Wide, controlled constant directivity dispersion for optimum coverage.
Does not suffer from massive loss of energy in the vertical plane at crossover causéd by two way discreet designs
UV/weather resistant UL94V-0 ABS front baffle
Blind Mount & Pre Install options
Dynamic high frequency protection
Easily accessible tapping switch on front baffle.
Low insertion loss 60 W line transformer
Ferrofluid cooled neodymium HF
Packaged with tile rails and C-ring for quick & easy installation and simple stocking logistics

Specifications:

Frequency Response (-3dB) (1) BM Back can 47Hz - 30kHz
Frequency Range (-10dB) (1) BM Back can 40Hz - 35kHz
Frequency Range (-10dB) (1) PI Back can 41Hz - 35kHz
System Sensitivity (1W @1m) (2) 92dB (1W = 2.83V for 8 Ohms)
Nominal Coverage Angle 90 degrees conical
Coverage Angle (1kHz to 6kHz) 100 degrees
Directivity Factor (Q) 5.5 averaged 1kHz to 6kHz
Directivity Index (DI) 7.2 averaged 1kHz to 6kHz
Rated Maximum SPL Average: 112dB
Peak: 118dB
Average: 110dB (with THP60)
Power Handling (3) Average: 90W
Programme: 180W
Peak: 360W
Recommended Amplifier Power 180W @ 8 Ohms
Nominal Impedance 8 Ohms
Transformer Taps (via front rotary switch) 70V: 60W / 30W / 15W / 7.5W / OFF
& Low Impedance operation
100V: 60W / 30W / 15W / OFF
& Low Impedance operation
Crossover 2kHz - 2nd order LF, 2nd order HF
(with dynamic HF protection)
TRANSDUCERS
Low Frequency 1 x 200mm (8.00") Dual ConcentricT constant directivity driver with multi fibre paper pulp cone
High Frequency 1 x 25mm (1.00") titanium dome with neodymium magnet system
PHYSICAL
Enclosure Back Can: Zinc plated steel
Baffle: Reflex loaded UL 94V-0 rated ABS Grille: Steel, with weather resistant coating
Safety Features Safety ring located at rear of enclosure for load bearing safety bond
Clamping Design Min / Max clamping range: 0.0mm (0.0") / 20.0mm (0.79")
Recommended clamp torque: 1.5Nm
Back Can Options Blind Mount (BM): Complete with fixed back can
Pre Install (PI): Separate back can for pre installation
Cable Entry Options Cable clamp & squeeze connector for conduit up to 22mm
Conduit Knockouts 3 Sets of horizontal positions: 19 / 22 / 28mm 0.75 / 0.87 / 1.10"
Connectors Removable locking connector with screw terminals with "loop through" facility
