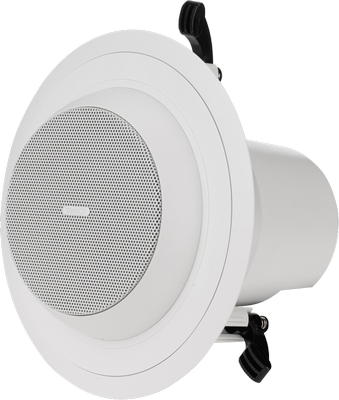

Tannoy CMS401DCe kattokaiutin, valkoinen

Tannoy CMS401DCe kattokaiutin, valkoinen (455,00)
Poistotarjous ! Vain kahden kappaleen erä!
- Kokoäänialuekaiutin Dual Concentric Driverilla kattoasennuksiin (Blind Mount)
- Hyvä soundinen Tannoy 4" kokoäänialue-elementti + 0,75" titaani tweetteri
- hifikäyttöön, kotiteatterin kattokaiuttimeksi tai julkiseen asennukseen
- Tehonkesto: 60W jatkuva RMS, 240W Peak hetkellinen
- Dispersio: 90°
- Säädettävä kallistuskulma 360 °:n rotaatiolla haastaviin asennuskohteisiin
- Suositeltu vahvistinteho: 120W @ 8 Ohms
- Taajuusvaste: 85Hz - 54kHz
- Impedanssi: 8 ohm pieni-impedanssisena
- Blind Mount kotelo
- Yksiosainen rakenne helpottaa asennusta
- Jauhemaalattu, UV-kestävä rei'itetty teräsverkko, jossa on pölynsuojaus
- Etugrilli irroitettavissa esim. maalausta varten
- Mukana kiinnitystarpeet
- Väri: valkoinen
- Paino: 2.725kg

The CMS401 DCe is a full bandwidth ceiling monitor system suited to high-level music and speech reinforcement applications requiring exceptional sonic quality with uncompromised reliability.

Specifically designed for fast, simple and cost effective installation in new and existing buildings, the 100mm (4.00) Dual Concentric™ equipped CMS401 DCe can be entirely angled towards the listener within the fixed ceiling-mounting ring. The challenge of difficult speaker placement, in less than perfect room configurations, is therefore eliminated by being able to discreetly pivot the loudspeaker towards the desired area of coverage.

The driver and passive frequency dividing network are mounted in an injection-moulded pod. This, like the ceiling mounting ring in which the pod can be swivelled, is manufactured from UV/weather resistant UL94V-0 ABS material. When mounting the speaker the three self aligning clamps locate the speaker while at the same time locking the pod angle securely

The inclusion of a premium quality Tannoy THP 30 multi-tap transformer, for distributed line operation, provides high system sensitivity, wide bandwidth and dynamic range; achieved with very low insertion loss.

Transformer taps are adjusted via the rotary switch mounted on the rear of the speaker pod:

70V systems: 30W / 15W / 7.5W / 3.75W / OFF & Low Impedance operation
100V systems: 30W / 15W / 7.5W / OFF & Low Impedance operation
The CMS401 DCe is packaged with tile rails and C-ring for quick & easy installation and simple stocking logistics. A plaster (mud) ring is available as an optional accessory.
- Mitat: halkaisija: 205mm, syvyys: 147.6mm

The Tannoy CMS401 DCe is a full bandwidth ceiling monitor system suited to high-level
music and speech reinforcement applications requiring exceptional sonic quality with
uncompromised reliability.

The CMS401 DCe features Tannoy's exclusive point source Dual ConcentricTM driver. The
mid-bass and tweeter sections are coincidentally aligned to a true point source; ensuring a
wide and controlled dispersion for optimum coverage; this while avoiding the massive loss of
energy, in the vertical plane at the crossover frequency, inherent in two-way discreet designs.

This point source, constant directivity drive unit comprises a 100mm (4.00") multi fibre paper
pulp mid bass cone and a 19mm (0.75") ferrofluid cooled, titanium dome HF unit with
neodymium magnet system. The WideBandTM high frequency unit in the Dual ensures that
this drive unit delivers an exceptionally detailed and open sound stage for unrivalled
intelligibility. Extending the bandwidth gives percussive sounds more reality and impact,
with vocals and instruments clearly more separate and distinct. This design, with extended
frequency response and very low distortion, is equipped with dynamic high frequency
protection.

The driver and passive frequency-dividing network are mounted in an injection-moulded
pod. This, like the ceiling mounting ring in which the pod can be swivelled, is manufactured
from UV/weather resistant UL94V-0 ABS material.

The inclusion of a premium quality Tannoy THP 30 multi-tap transformer, for distributed-line
operation, provides high system sensitivity, wide bandwidth and dynamic range; achieved
with very low insertion loss.

Specifically designed for fast, simple and cost effective installation in new and existing
buildings, the CMS401 DCe can be entirely angled towards the listener within the fixed
ceiling-mounting ring. The challenge of difficult speaker placement, in less than perfect room
configurations, is therefore eliminated by being able to discreetly pivot the loudspeaker
towards the desired area of coverage.

Applications:

- Multi-zone foreground music & paging systems
- Boardrooms & offices
- Business music systems
- Airports, convention centres, hotels
- Reception and waiting rooms
- Houses of worship
- Retail outlets and shopping malls
- Lounges and bars
- Cruise ships
- Courtrooms
- Multi-room stereo systems
- Home theatre
