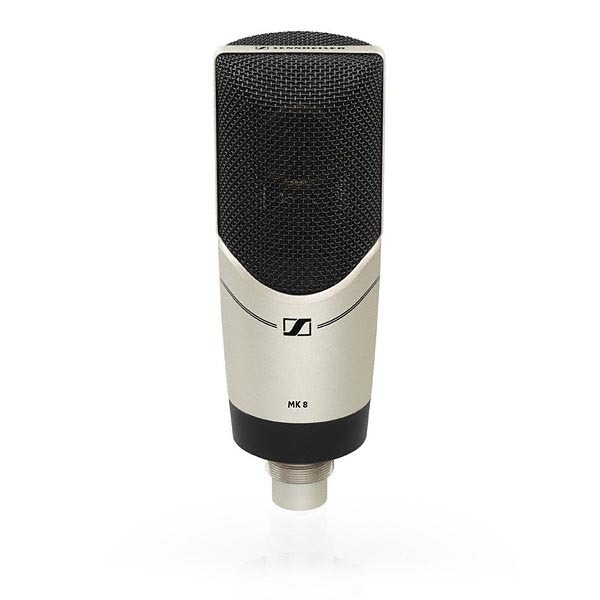

Sennheiser MK 8 isokalvoinen kondensaattori mikrofoni

Sennheiser MK 8 isokalvoinen kondensaattori mikrofoni

Overview

The MK 8 offers a great solution for advanced home recording applications and project studios alike. It is the microphone for people who pour all of their passion into their audio projects. The MK 8 offers sophisticated options to sign off your sound with your own personal handwriting. The dual-diaphragm condenser microphone delivers warm and precise sound reproduction. Its five independent polar patters allow for a multitude of recording applications and sound design options.
No matter which mixing desk or recording device is used, the MK 8 matches the input sensitivity with a 3-step attenuator. Two adjustable filters compensate for the proximity effect as well as low frequency rumble or structure born noise.

The MK 8 has dual one-inch diaphragms precisely spattered with 24-carat gold. The shock-mounted capsule is accommodated within a sturdy metal housing.

The MK 8 will be available in late summer 2014.

The MK 8. Pride in Sound - Made in Germany.

Features

- Dual-diaphragm true condenser microphone
- Five switchable polar patterns
- 3-position switchable low cut/roll-off filter
- 3-position pad switch
- Two 24-carat gold plated 1” diaphragms
- Shock-mounted capsule
- Rugged metal housing
- Safely sheltered electronics
- Designed and made in Germany

What's in the box?

- MK 8 microphone
- MZQ 4 Microphone clamp
- Pouch
- Instruction manual

Technical Data

Dimensions
160 x 57 mm (L x D)

Frequency response
20 Hz – 20 kHz

Transducer principle
externally polarised condenser microphone, 1‘‘ diaphragm

Weight
485 g

Pick-up pattern
Switchable: omni-directional, wide cardioid, cardioid, super-cardioid, figure-of-eight

Nominal impedance
50 Ohms

Min. terminating impedance
1000 Ohms

Storage temperature
-20°C to 60°C

Operating temperature
0°C to +40°C

AF sensitivity
14,1 mV /-37 dB dBV

Equivalent noise level
10 dB(A)

Maximum sound pressure level (passiv)
142 dB SPL (Dämpfung 0 dB)

Power supply
48 V phantom powering (P48)

Current consumption
4,1 mA

Dynamic range
132 dB

Low-cut filter
Switchable: Low cut: 60 Hz, -18dB/Octave / Roll off: 100 Hz, -6dB/Octave

Pre-emphasis
Switchable: 0dB, -10dB, -20dB
