Sennheiser EW-D SK vyölähetin

Sennheiser EW-D SK vyölähetin

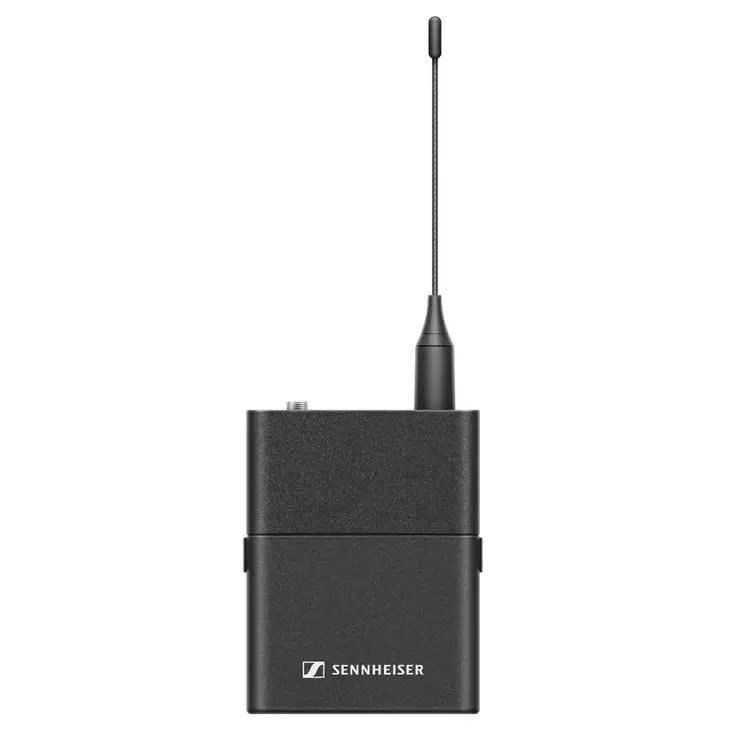

Compact and versatile bodypack transmitter for use with Evolution Wireless Digital receivers.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This bodypack transmitter is compatible with a wide range of Sennheiser headset microphones and clip-on/lavalier microphones.

- Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
- Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
- Auto scan creates reliable connections with minimal time and effort
- 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
- Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
- 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
- 2,240 selectable frequencies allow for fine tuning
- Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)



Specifications

Frequency ranges:
662 - 693.8 MHz
552 - 607.8 MHz
470.2 - 526 MHz
1785.2 - 1799.8 MHz
925.2 - 937.3 MHz
823.2 - 831.8 MHz & 863.2 - 864.8 MHz
630 - 662 MHz
606.2 - 662 MHz
520 - 576 MHz

Dimensions:
63 x 80 x 20 mm (without antenna)

THD, total harmonic distortion:
= -60 dB for 1 kHz @ -3 dBfs input level

Weight:
approx. 120 g

Operating temperature:
-10 °C - +55 °C (14 °F - 131 °F)

Operating relative humidity:
5 - 95 % (non-condensing)

Audio frequency response:
20 Hz - 20 kHz (-3 dB) @ 3 dBfs

Input voltage range:
2.0 - 4.35 V

Current consumption:
< 300 mA

Power supply:
2 AA batteries 1.5 V (alkaline manganese)
or BA 70 rechargeable battery pack

Transmission power:
Audio link: 10 mW
ERP (Range Y1-3): 12 mW ERP
BLE: max. 10 mW EIRP
