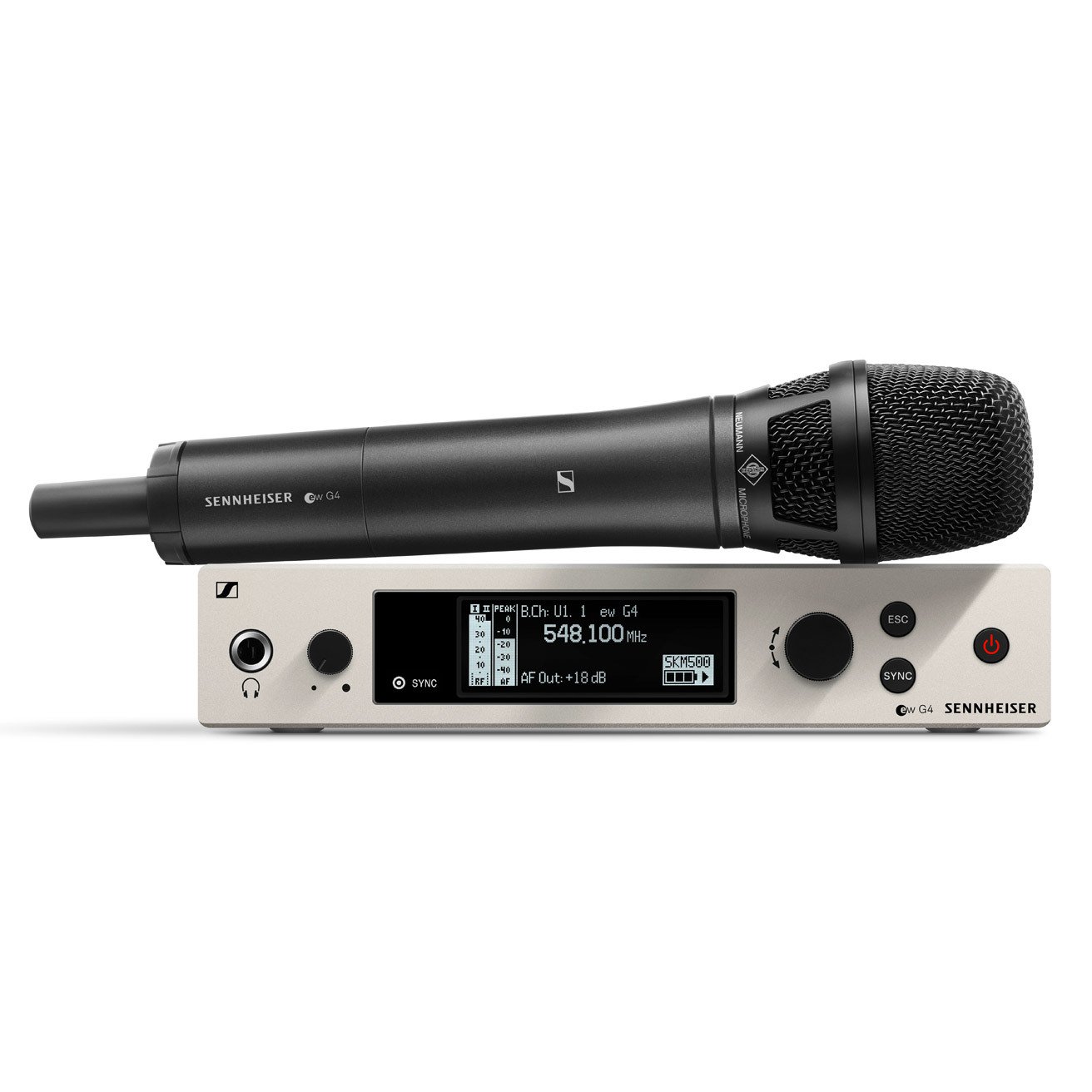

Sennheiser ew 500 G4-KK205 langaton mikrofonijärjestelmä

Sennheiser ew 500 G4-KK205 langaton käsimikrofonijärjestelmä
- ew 500 G4 -sarjan huippuluokan langaton käsimikrofonijärjestelmä
- Käsikapula varustettu erinomaisella Neumann KK205 hyperkardioidi kondensaattori-mikrofonikapselilla
- Eri taajuusikkunavaihtoehtoja
- Ammattilaisen valinta
- Helppo ja joustava langaton synkronointi lähettimen ja vastaanottimen välillä infrapunan ansiosta
- Metallikoteloinen True Diversity half-rack vastaanotin intuitiivisella OLED-näytöllä täydelliseen hallintaan
- 88 MHz bandwidth
- Jopa 32 kanavaa
- Ethernet-liitäntä Wireless Systems Manager (WSM) multikanavakäyttöä varten
- Korkea RF ulostuloteho jopa 50 mW (säädettävissä 10/30/50 mW, riippuen maakohtaisista käytännöistä)

Järjestelmä sisältää:

- EM 300-500 G4 räkkiasenteisen true-diversity vastaanottimen
- SKM 500 G4 käsikapulan
- KK 205 hyperkardioidi kondensaattori mikrofonikapselin (herkkyys 2.8 mV/Pa, sn ratio 70 dB, max spl 150 dB)
- NT 2-3 virtalähteen
- GA3 räkkiasennussarjan
- Mikrofonitelineadapterin


The best of two brands. Sennheiser and Neumann bring the reliability of wireless transmission and the excellence of studio sound together. The KK 205 is a premium quality capsule head for professional Sennheiser handheld transmitters, now available with the evolution wireless G4 500 Series.

Key Features

True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control

Easy and flexible wireless synchronization between transmitter and receiver via infrared

Up to 32 compatible channels

Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups

High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Neumann KK 205 bk Supercardioid condenser capsule head for Sennheiser wireless systems



Dimensions
Approx. 202 x 212 x 43 mm

Compander
Sennheiser HDX

THD, total harmonic distortion
= 0.9 %

Weight
Approx. 980 g

Audio output
6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu

Signal-to-noise ratio
= 115 dBA

Switching bandwidth
up to 88 MHz

Peak deviation
±48 kHz

Nominal deviation
±24 kHz

Modulation
Wideband FM

Power supply
12 V DC

Current consumption
350 mA

Adjacent channel rejection
Typically = 75 dB

Intermodulation attenuation
Typically = 70 dB

Receiving frequency
Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

RF sensitivity
< 2.5 µV for 52 dBA eff S/N

Squelch
5 to 25 dBµV in steps of 2 dB

Equalizer
Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)

Antenna Connector
2 BNC sockets

Temperature Range
-10 °C to +55 °C

Receiver Principle
True diversity

Blocking
= 75 dB

SKM 500 G4

Dimensions
Approx. Ø 50 x 265 mm

Compander
Sennheiser HDX

THD, total harmonic distortion
= 0.9 %

Weight
(incl. batteries) approx. 450 g

Signal-to-noise ratio
= 115 dBA

RF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW

Switching bandwidth
up to 88 MHz

Peak deviation
±48 kHz

Nominal deviation
±24 kHz

Operating time
Typically 8 h

Modulation
Wideband FM

Power supply
2 AA batteries, 1.5 V or BA 2015 accupack

Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: = 25 µA

Powering
3 V battery / 2.4 V rechargeable battery

Transmission frequency
Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels

AF frequency response
80 – 18,000 Hz

Temperature Range
-10 °C to +55 °C

Frequency stability
= ±15 ppm
