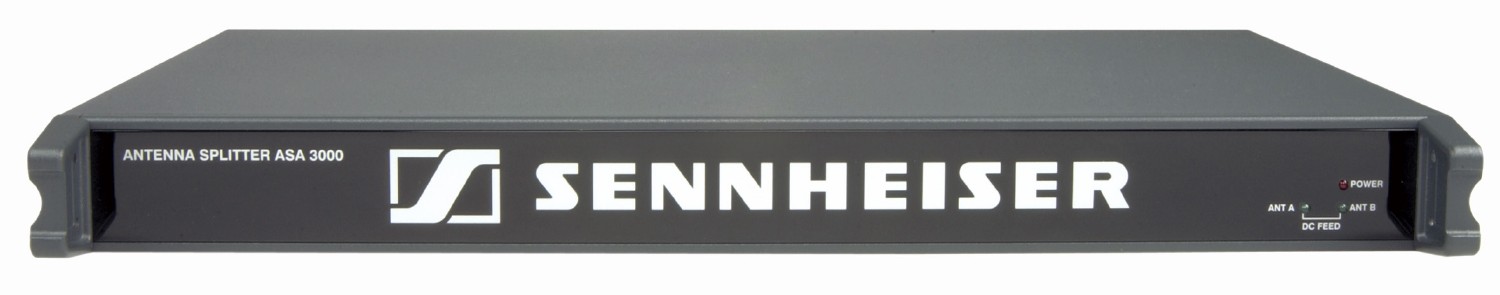

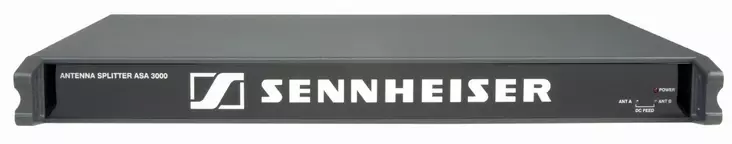

Sennheiser ASA 3000 antennisplitteri

Sennheiser ASA3000 antennisplitteri (2485,00)
Sennheiserin aktiivinen laajakakaistainen (470-870) MHz 16-kanavainen antennisplitteri.
Vain rajoitettu tarjous!

Overview
Active wideband antenna splitter for up to 16 channels (8 dual receivers), may be made narrowband with optional
IM3000 selective RF input modules - cables not included.

Technical Data:
RF frequency range 470 - 870 MHz
Transmission loss 0 dB
Nominal impedance 50 O
Antenna connector BNC
Remarks Booster Feed: 12 V, 200 mA
Mains voltage 100 - 240 V
Mains frequency 50 - 60 Hz
Dimensions 19 '', 1U
Weight ~ 3 kg

Specifications

RF characteristics / active diversity antenna splitter
Antenna splitter: 2 x 1:8, active
Frequency range: 470.870 MHz
Distribution attenuation: +3/-1 dB
Nominal impedance
of the inputs/outputs: 50 Ħ
Connections inputs A/B: BNC sockets
Connections outputs
A1-A8/B1-B8: BNC sokkets
Booster supply 12 V, 70 mA max. each,
at the inputs A and B: short circuit-proof
Overall unit
Supply voltage range: nom. 100.240 V AC,
50.60 Hz
Power consumption: max. 8 VA
Weight: approx. 3 kg
Dimensions: 19", 1 U
Temperature range: -10 to +55 ‹C
Selective input module (optional)
Variable two-circuit bandpass filter
Frequency range: 470.870 MHz
Insertion loss: < 1.5 dB
Bandwidth -1 dB: . 40 MHz
Bandwidth -3 dB: . 60 MHz
Bandwidth -10 dB: . 100 MHz
Far-off selection: . 50 dB
DC feed: max. 0.5 A, 20 V
Input: BNC socket, 50 Ħ
Output: IEC connector
