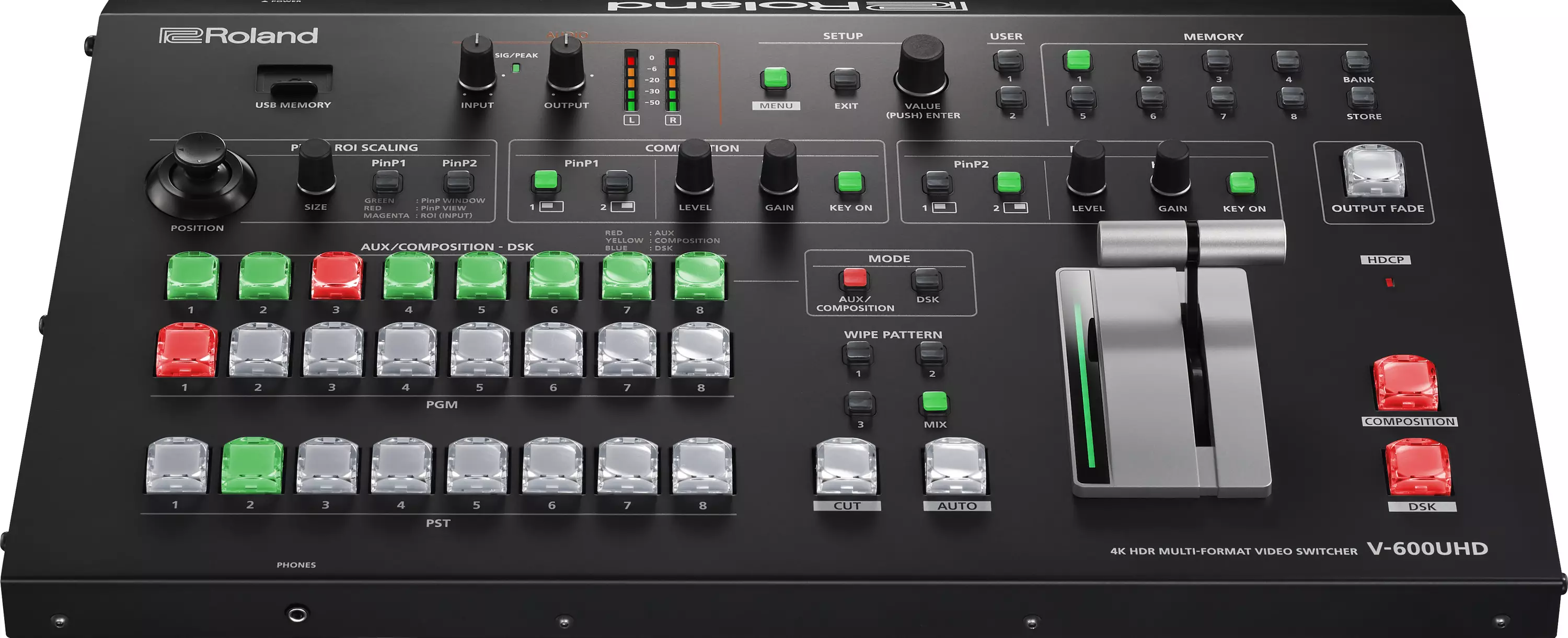

Roland V-600UHD videomikseri

Roland V-600UHD videomikseri
- 4K HDR Multi-format video switcher
- Ammattitason erittäin kehittynyt UHD video-audiovaihtaja ja produktiostudio
- Täysi 60 Hz frame rate tuki
- High Dynamic Range [HDR]
- DCI Cinema 4K resoluutiotuki
- Sisäinen 10-bit värisyvyysprosessointi
- Videoprosessointi: 4:4:4 (Y/Pb/Pr), 10-bit
- Audioprosessointi: 24-bit 48kHz
- Mitat: 482 (L) x 300 (S) x 109 (K) mm
- Paino: 5.3 kg
- Myyntipakkaus sisältää laitteen lisäksi räkkiasennussarjan, virtajohdon ja ohjekirjan

As clients and audiences start demanding 4K at events, your current HD sources and displays shouldn’t become obsolete—and the V-600UHD lets you transition to 4K workflows as demand and budgets allow. With Roland’s Ultra Scaler technology, scaling is provided on every input, so you can use Full HD and 4K sources simultaneously, and output at multiple resolutions. You can also leverage the high pixel density of 4K camera sources in Full HD workflows for problem-free, visually-impressive productions.

PROCESSING

Video Processing: 4:4:4 (Y/Pb/Pr), 10-bit

Supported Video Input Formats

HDMI (Video, CEA-861-F): 720/50p, 720/59.94p
HDMI (Video, CEA-861-F): 1080/50i, 1080/59.94i
HDMI (Video, CEA-861-F): 1080/50p, 1080/59.94p
HDMI (Video, CEA-861-F): 2160/50p (UHD 4K), 2160/59.94p (UHD 4K)
HDMI (Video, CEA-861-F): 2160/50p (DCI 4K), 2160/59.94p (DCI 4K)
HDMI (PC, VESA DMT): 1024 x 768/60Hz (XGA)
HDMI (PC, VESA CVT): 1280 x 768/60Hz (WXGA)
HDMI (PC, VESA DMT): 1280 x 1024/60Hz (SXGA)
HDMI (PC, VESA CVT): 1400 x 1050/60Hz (SXGA+)
HDMI (PC, VESA DMT): 1600 x 1200/60 Hz (UXGA)
HDMI (PC, CEA-861-F): 1920 x 1080/30 Hz (FHD), 1920 x 1080/60 Hz (FHD)
HDMI (PC, VESA CVT): 1920 x 1200/60 Hz (WUXGA, Reduced blanking)
HDMI (PC, CEA-861-F): 3840 x 2160/24 Hz (UHD 4K), 3840 x 2160/30 Hz (UHD 4K), 3840 x 2160/60 Hz (UHD 4K)
HDMI (PC, CEA-861-F): 4096 x 2160/24 Hz (DCI 4K), 4096 x 2160/30 Hz (DCI 4K), 4096 x 2160/60 Hz (DCI 4K)

RGB (PC, VESA DMT): 1600 x 1200/60Hz (UXGA)
RGB (PC, CEA-861-F): 1920 x 1080/60Hz (FHD)

SDI (Video, SMPTE ST274): 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
SDI (Video, SMPTE ST2036): 2160/59.94p (UHD 4K), 2160/50p (UHD 4K)
SDI (Video, SMPTE ST2048): 2160/59.94p (DCI 4K), 2160/50p (DCI 4K)

Still Image: Windows Bitmap File (.bmp), Maximum 4096 x 2160 pixels, 24-bit per pixel, uncompressed
Still Image: PNG File (.png), Maximum 4096 x 2160 pixels (*1)
*1 Alpha channel of PNG file is not loaded.

Supported Video Output Formats

HDMI (Video, CEA-861-F): 1080/50p, 1080/59.94p
HDMI (Video, CEA-861-F): 2160/50p (UHD 4K), 2160/59.94p (UHD 4K)
HDMI (Video, CEA-861-F): 2160/50p (DCI 4K), 2160/59.94p (DCI 4K)
HDMI (PC, CEA-861-F): 1920 x 1080/30Hz (FHD) (*2), 1920 x 1080/60Hz (FHD)
HDMI (PC, CEA-861-F): 3840 x 2160/30Hz (UHD 4K), 3840 x 2160/60Hz (UHD 4K)
HDMI (PC, CEA-861-F): 4096 x 2160/30Hz (DCI 4K), 4096 x 2160/60Hz (DCI 4K)
*2 Available when Down Convert of HDMI OUT 1-3 is set to "Enabled".

SDI (Video, SMPTE ST274):1080/59.94p, 1080/50p
SDI (Video, SMPTE ST2036):2160/59.94p (UHD 4K), 2160/50p (UHD 4K)
SDI (Video, SMPTE ST2048):2160/59.94p (DCI 4K), 2160/50p (DCI 4K)

* Conforms to VESA DMT, VESA CVT, CEA-861-F
* Color Gamut: Rec.709, Rec.2020
* Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG

Video Effects

Transition: Mix, Cut, Wipe (9 patterns)
Composition: PinP, Key (*1), PinP + Key (*1)
DSK: PinP, Key (*1), PinP + Key (*1)
Others: Output Fade, Output Freeze, Output Capture

*1 Luminance Key, Chroma Key

Audio Processing

24 bits/48 kHz

Audio formats

SDI IN/OUT: Linear PCM, 24 bits/48 kHz, 16 ch (Conforms to SMPTE 299M)
HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2 ch

Audio Effects

Matrix mixer
Delay (1 ms units, max 500 ms)
Test tone output

CONNECTORS

Input Connectors

HDMI IN 1--4 connectors: HDMI type A (HDMI 2.0)
SDI IN 5--6 connectors: BNC type (12G/3G/HD-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B), 292M)
RGB IN 1 connector: HD DB-15 type (Analog RGB, Select HDMI IN 1 or RGB IN 1 using menu)
AUDIO IN L/R connectors: XLR-3-31 type (balanced)

Output Connectors

SDI OUTPUT connector: BNC type (12G/3G-SDI, Conforms to SMPTE 2082, 424M (Level-A, Level-B))
HDMI OUT 1--3 connectors: HDMI type A (HDMI 2.0)
MULTI-VIEW connector: HDMI type A (HDMI 1.4)
AUDIO OUT L/R connectors: XLR-3-32 type (balanced)
PHONES jack: Stereo miniature phone typeOther ConnectorsUSB MEMORY port: USB A type (for USB flash drive)
RS-232 connector: DB-9 type (Male) (for Remote Control)
LAN port: RJ45 type, 100BASE-TX (for Remote Control)
TALLY/GPI port: DB-25 type (Female) (Tally: 16, GPI: 8)

* XLR type: 1 GND, 2 HOT, 3 COLD

AUDIO INPUT/OUTPUT CHARACTERISTICS

Input Level

AUDIO IN L/R: +4 dBu (Maximum: +24 dBu)

Input Impedance

AUDIO IN L/R: 15 k ohms

Output Level

AUDIO OUT L/R: +4 dBu (Maximum: +24 dBu)
PHONES: 92 mW + 92 mW (32 ohms)

Output Impedance

AUDIO OUT L/R: 600 ohms
PHONES: 10 ohms

OTHER

Power Consumption 80 W
Dimensions 482 (W) x 300 (D) x 109 (H) mm

* When rack mount angles are fitted.

Weight 5.3 kg

* Including rack mount angles.
