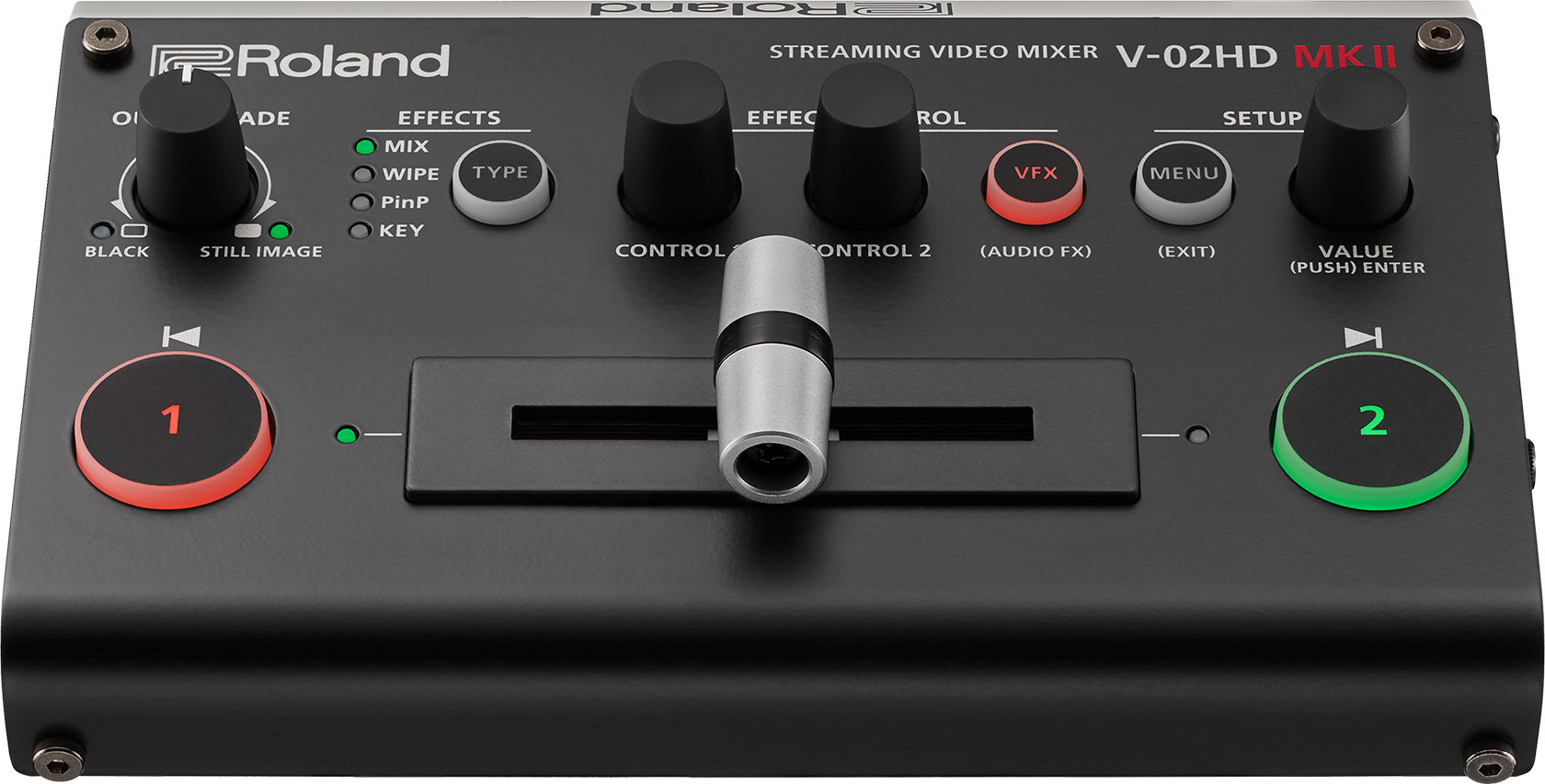

Roland V-02HD MKII videomikseri

Roland V-02HD MKII videomikseri (585,00)

Ditch the webcam and step up your livestreams with the Roland V-02HD MK II Streaming Video Mixer. Compact, affordable, and simple to use, this desktop device allows you to connect and switch two high-quality HDMI cameras and send them directly to your favorite streaming platform over USB-C. You can also mix in audio sources via dedicated inputs and HDMI, apply video effects and transitions, and more. With the V-02HD MK II, you have the interface you need to bring higher production values to your live video productions.

The V-02HD MK II connects to the streaming computer you already own and the audience you already have. It’s instantly recognized as a camera source when you plug in via USB, so it’s ready to go for Facebook, YouTube, Twitch, and Zoom. It also integrates seamlessly with OBS Studio, StreamYard, and Restream for more advanced workflows. High-quality streaming up to 1080p/60 FPS is supported, and it’s possible to send two additional feeds to external HDMI devices via the Program Out and Preview Out if needed.

The V-02HD MK II also includes a 10-channel digital audio mixer with Roland’s legendary sound quality. There are two audio inputs with 3.5 mm jacks, and each supports a microphone—including lavalier mics that require plug-in power—or stereo audio from a smartphone, mixer, or other device. Embedded stereo audio from your HDMI sources can be mixed in as well, including microphones connected to your cameras.

Out of the box, the V-02HD MK II gives you the dedicated controls you need to switch cameras and adjust video and audio sources when you go live. But if you want to dive deeper, there’s a world of advanced features and custom assignments to explore. Connecting an HDMI monitor to the Preview Out provides a display for adjusting a vast range of functions from the V-02HD MK II panel. And with our remote control apps for iPad, macOS, and Windows,* you can operate the V-02HD MK II via an intuitive graphical interface.

Video
Video Processing
- 4:4:4 (Y/Pb/Pr), 10-bit

Input Connectors
- INPUT 1--2: HDMI type A x 2
- HDCP Supported
- Multi-format Supported

Output Connectors
- PROGRAM OUT: HDMI type A
- PREVIEW OUT: HDMI type A
- HDCP Supported
- Multi-format Supported
- USB STREAM:USB Type-C (TM)

Input Formats
- 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
1080/23.98p, 1080/24p
- VGA (640 x 480/60Hz), SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz)
- WXGA (1280 x 800/60Hz), SXGA (1280 x 1024/60Hz)
- FWXGA (1366 x 768/60Hz), SXGA+ (1400 x 1050/60Hz)
- UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz)
- The refresh rate is the maximum value of each resolution.
- Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
- 1920 x 1200/60 Hz: Reduced blanking
- The input interlaced video signal is converted to progressive video signal by internal processing.
- FRAME RATE = 59.94 Hz
- FRAME RATE = 50 Hz

Output Formats
- PROGRAM OUT, PREVIEW OUT:
480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/29.97p *1
576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2
- SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
- WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
- SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
- UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
- HD (1280 x 720/60 Hz), FHD (1920 x 1080/60 Hz)
- Conforms to VESA DMT Version 1.0 Revision 11.
- The output refresh rates of 800 x 600--1400 x 1050 are 75 Hz when the unit's frame rate setting is 50 Hz.
- 920 x 1200/60 Hz: Reduced blanking
- FRAME RATE = 59.94 Hz
- FRAME RATE = 50 Hz

- USB STREAM:
1080/60p, 720/60p, 640 x 480/60p *1
1080/59.94p, 720/59.94p, 640 x 480/59.94p *2
1080/29.97p, 720/29.97p, 640 x 480/29.97p *3
1080/50p, 720/50p, 640 x 480/50p *4
1080/25p, 720/25p?640 x 480/25p *5
- Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.
- 1 FRAME RATE(USB OUT) = 60 Hz
- 2 FRAME RATE(USB OUT) = 59.94 Hz
- 3 FRAME RATE(USB OUT) = 29.97 Hz
- 4 FRAME RATE(USB OUT) = 50 Hz
- 5 FRAME RATE(USB OUT) = 25 Hz

Video Effects
Transition: CUT, MIX (DISSOLVE), WIPE (9 types)
Composition: PinP (RECTANGLE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key)
Visual Effects (14 types): MOSAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FIND EDGES, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

Audio
Audio Processing
- Sampling rate: 24 bits/48 kHz

Audio formats
- Linear PCM, 24 bits/48 kHz, 2ch

Input Connectors
Analog: AUDIO IN 1--2: Stereo miniature type x 2, plug-in power supported
Digital: USB STREAM: USB Type-C, INPUT 1--2: HDMI Type A x 2

Output Connectors
Analog: PHONES: Stereo miniature type
Digital:
USB STREAM: USB Type-C (TM)
PROGRAM OUT: HDMI type A
PREVIEW OUT: HDMI type A

Input Level
- AUDIO IN: -10 dBu (Maximum: +10 dBu)

Input Impedance
- AUDIO IN: 10 k ohms

Output Level
- PHONES: 92 mW + 92 mW (32 ohms)

Output Impedance
- PHONES: 10 ohms

Audio Effects
- Delay, Reverb, High pass filter, Noise gate, De-esser, Compressor, Equalizer, Voice changer
- Multi-band compressor, Limiter, Test tone output

Others
Other Connectors
USB STREAM: USB Type-C (TM) (for backup from PC, for remote control from PC and iPad)
CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)

Other Functions
- Preset Memory (8 types)
- Panel lock function
- EDID Emulator
- Auto Switching
- Auto Input Detect

Power Supply
- AC Adaptor

Current Draw
- 1.4 A

Power Consumption
- 12.6 W

Operation Temperature
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit

Dimensions
- 160 (W) x 108 (D) x 51 (H) mm
- 6-5/16 (W) x 4-1/4 (D) x 2-1/16 (H) inches

Weight (excluding AC adaptor)
- 0.6 kg

Accessories
- Startup Guide
- AC adaptor
- Power cord
- Cord hook
