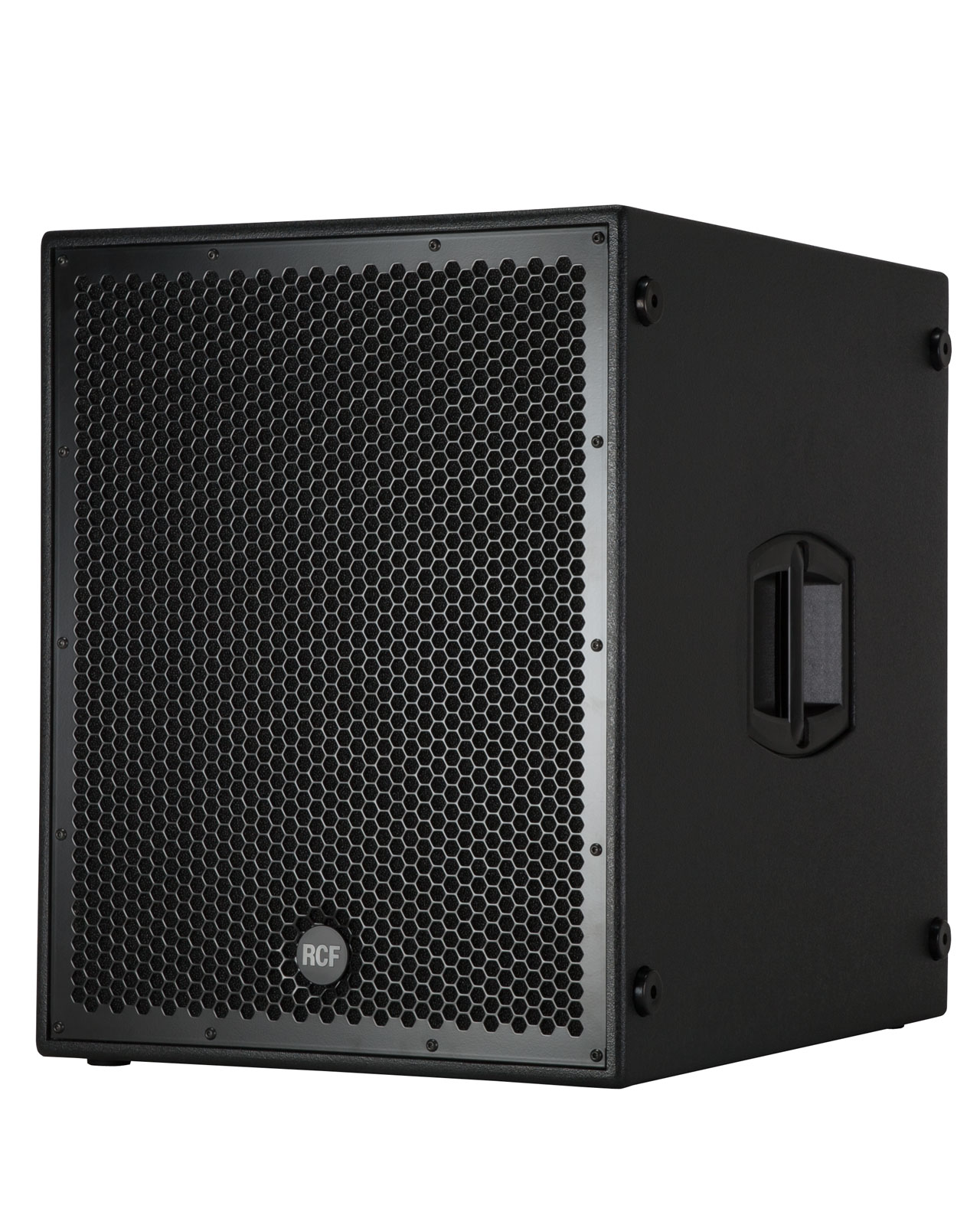

RCF SUB 8004-AS aktiivi PA-subwoofer

RCF SUB 8004-AS aktiivinen PA-subwoofer (3690,00)
- Huom ! iso ja painava laatikko. Toimitus sovittavissa erikseen !
- DSP prosessorilla säädettävä monipuolinen monojakosuodin
- kaiutintolppa-adapteri (M20) päällä ja kyljessä
- 1250 W rms, 2500 W prg
- 136 dB SPL
- 30 - 120 Hz
- 51 kg

The SUB 8004-AS is one of the most powerful 18” subwoofers in pro-sound category.

Featuring a high power, hypervented 18” woofer, with 4” inside/outside voice coils, this cabinet is designed to deliver a serious amount of low frequency. Powered by a 1250W digital amplifier module, the SUB 8004-AS can perform in the most demanding situations. The input board includes volume control, deep/punch switch, high pass switch, phase switch, cardioid, time delay.

FEATURES

2500 Watt Peak, 1250 Wat RMS
136 dB max SPL
30 Hz - 120 Hz frequency response
18" Woofer, 4.0" voice coil vented woofer
DSP controlled Input section with selectable presets
Delay control
Baltic birch tour grade cabinet
Compatible with NXL23-A (stacking)
Compatible with NXL24-A (stacking)
Multiple configurations with HDL 10-A and HDL 20-A

APPLICATIONS

• Live sound
• Rental
• Portable PA, clubs, ballrooms, live theatre
• House of worship
• Theme parks
• Music playback and sound reinforcement in small and mid-size venues
• Corporate A/V professionals and sound system hire companies

ACOUSTICAL SPECIFICATIONS
Frequency Response -3 dB:30 Hz ÷ 120 Hz
Max SPL:136 dB
Woofer:18", 4.0" v.c.

INPUT/OUTPUT SECTION
Input signal:bal/unbal
Input connectors:XLR
Output connectors:XLR
Input sensitivity:-2 dBu / +4 dBu

PROCESSOR SECTION
Crossover frequencies:Selectable 90 Hz - 120 Hz Hz
Protections:Thermal, RMS
Limiter:Fast limiter
Controls:Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid

AMPLIFIER SPECIFICATIONS
Total power:2500 W PEAK
Low frequencies:2500 W PEAK
Total power:1250 W RMS
Low frequencies:1250 W RMS
Cooling:Convection
Connections:Powercon in-out

CABINET
Cabinet Material:Baltic Birch
Hardware:2xM20, 4 x wheels mounting points
Handles:2 side
Colour:Black

PHYSICAL SPECIFICATIONS
Height:700 / 27.56 mm/inch
Width:557.5 / 21.95 mm/inch
Depth:700 / 27.56 mm/inch
Net Weight:51.0 / 112.20 kg/lbs
