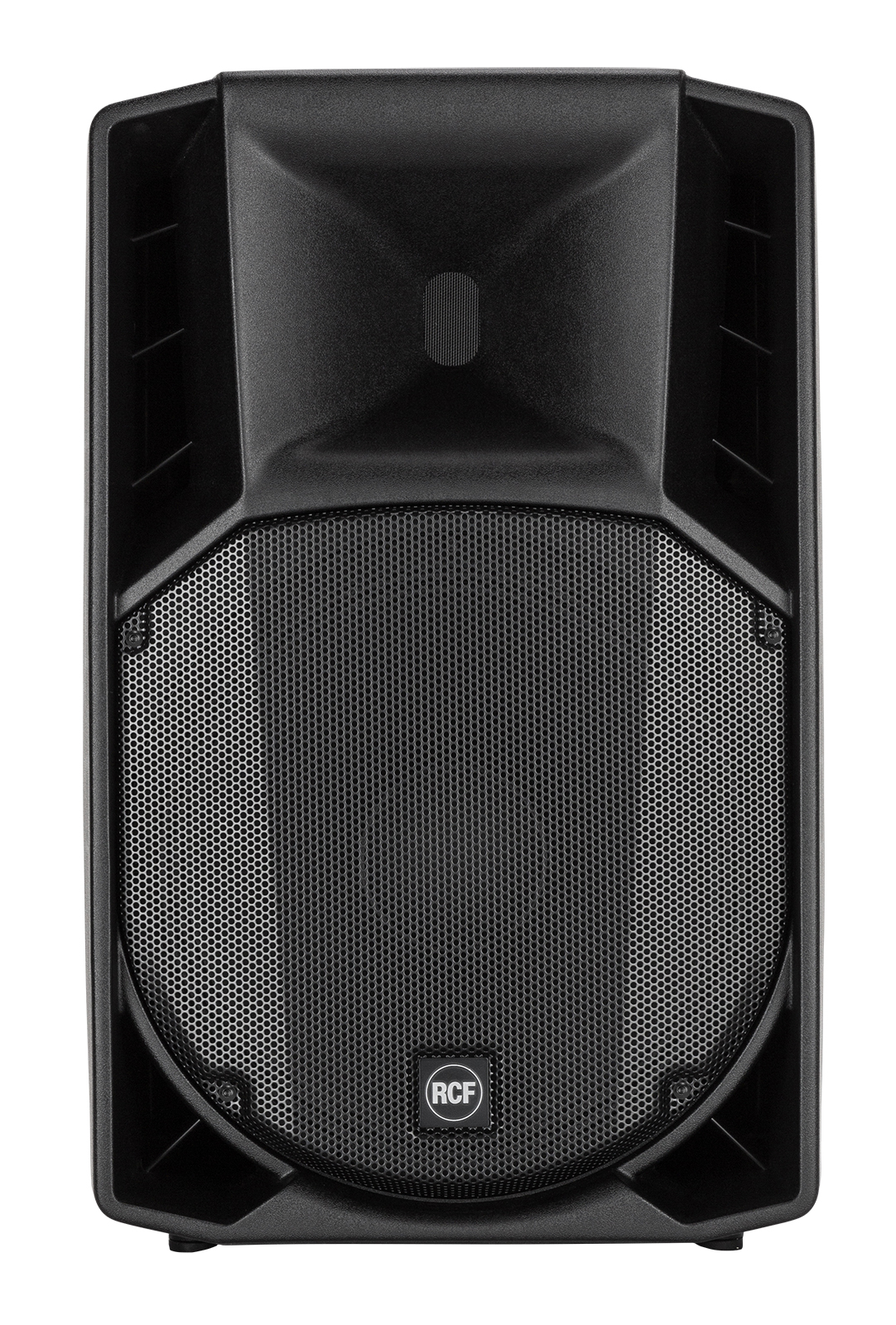

RCF ART 735-A MK IV aktiivikaiutin

RCF ART 735-A MK IV aktiivikaiutin

The ART 735-A MK4 is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.


Features

132 dB Max SPL
1400 WATT 2-way peak power
Innovative DSP Processing
1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
15" Woofer
800 Hz crossover point for perfect vocal reproduction
90°x60°, wide dispersion constant directivity horn
FiRPHASE Technology

Acoustical Specifications

Frequency Response -3 dB: 45 Hz ÷ 20000 Hz
Max SPL: 132 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 60°
Compression Driver: 1.4", 3.0" v.c.
Woofer: 15", 3.0" v.c.

Input/Output Section

Input signal: Bal / unbal
Input connectors: XLR, Jack
Output connectors: XLR
Input sensitivity: -2 dBu / +4 dBu

Processor Section

Crossover frequencies: 800 Hz
Protections: Thermal, rms
Limiter: Soft limiter
Controls: Volume, Boost, Mic/Line

Amplifier Specifications

Total power: 1400 W PEAK
High frequencies: 400 W PEAK
Low frequencies: 1000 W PEAK
Total power: 700 W RMS
High frequencies: 200 W RMS
Low frequencies: 500 W RMS
Cooling: Convection / forced
Connections: VDE connector in

Cabinet

Cabinet Material: Composite PP
Hardware: 2xM10 flying p.
Handles: 2 side, 1 top
Pole Mount/Cap: Yes
Colour: Black

Physical Specifications

Height: 708 / 27.87 mm/inch
Width: 437 / 17.2 mm/inch
Depth: 389 / 15.31 mm/inch
Net Weight: 21.4 / 47.18 kg/lbs


Applications

• Compact live sound reinforcement
• Portable PA
• Frontfill and sidefill
• Auditorium, Clubs, Ballroom, Corporate AV, Theatre
