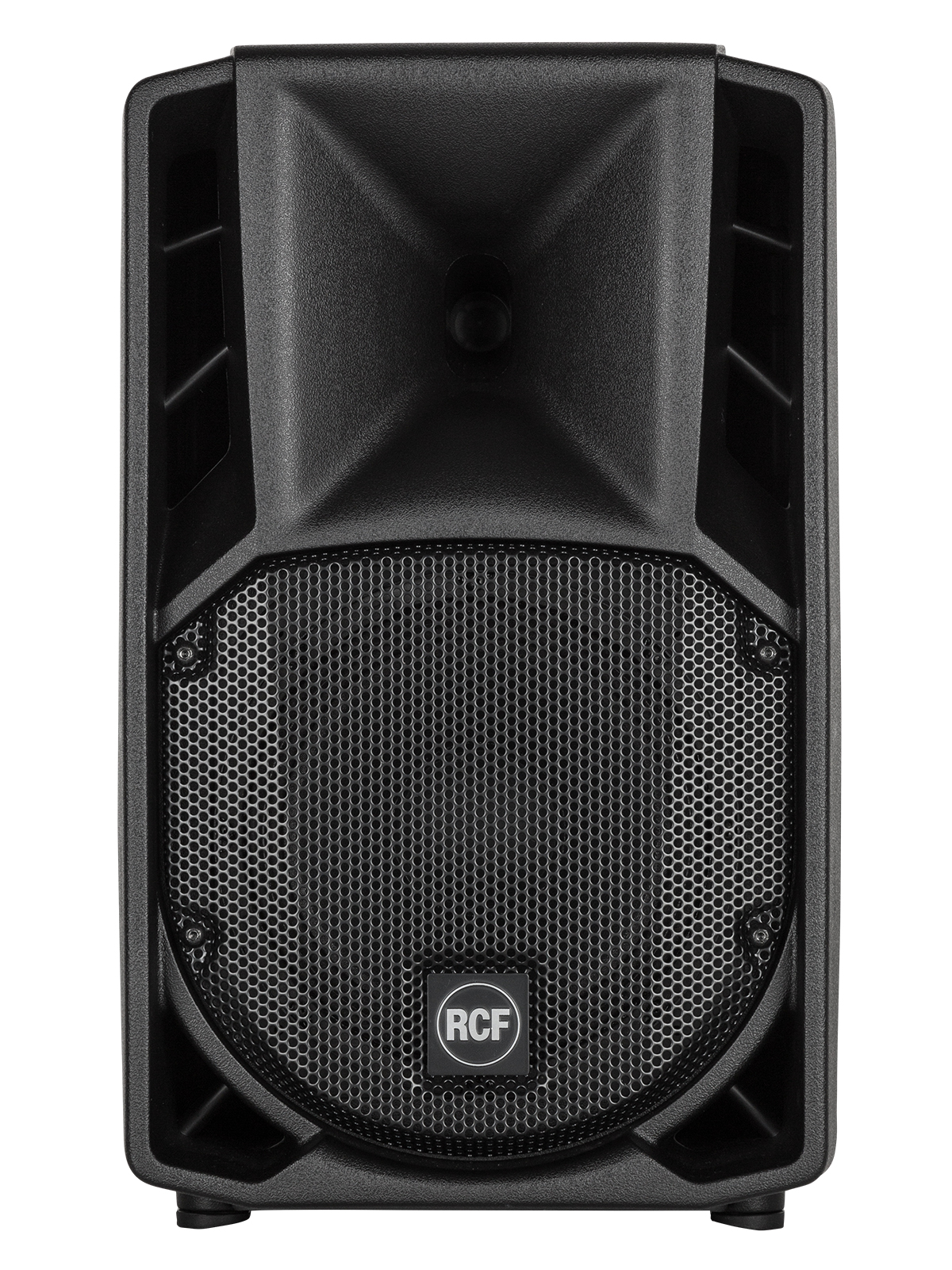

RCF ART 708-A MKIV aktiivikaiutin

RCF ART 708-A MK IV aktiivikaiutin (599,00)
- kompakti hyvä soundinen 8":n aktiivikaiutin
- FiRPHASE -teknologia mahdollistaa erittäin vaihelineaarisen toiston
- 127 dB SPL
- suuntakuvio 90º x 70º
- taajuusvaste 60 Hz - 20 kHz
- massa vain 10,6 kg
- Made in Italy

Aktiivinen 2-tiekaiutin ART 708-A MK4 tarjoaa erittäin lineaarisen vasteen 60 - 20 kHz alueella, selkeyttä lauluun ja hallittua bassotoistoa.

400W rms teholla varustetun integroidun D-luokan vahvistimen DSP huolehtii FiRPHASE-prosessoinnin avulla mm. kaiuttimen jakotaajuudesta, EQ:sta, Soft-limitoinnista ja dynaamisesta bassokorostuksesta.

8" bassoelementti ja 1" diskantti vakiosuuntaavuustorvella tarjoavat 127 dB maksimiäänenpainetta 90º x 70º dispersiolla.

Kaiuttimen mitat ovat 480 mm (K) x 291 mm (L) x 276 mm (S) ja paino10,6 kg.
ART 708-A MK4 is a unique product in its category. The 1.0" compression driver offersunique vocal clarity and sound projection. The 8” woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 800 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.


Features

127 dB Max SPL
800 WATT 2-way peak power
90 x 70, Wide dispersion constant directivity horn
Innovative DSP Processing
1" Compression Driver, 1.0" v.c.
8" Woofer
FiRPHASE Technology

Acoustical Specifications

Frequency Response -3 dB: 60 Hz ÷ 20 Hz
Max SPL: 127 dB
Horizontal coverage angle: 90°
Vertical coverage angle: 70°
Compression Driver: 1", 1.0" v.c.
Woofer: 8", 2" v.c.

Input/Output Section

Input signal: bal / unbal
Input connectors: XLR male, Jack
Output connectors: XLR female
Input sensitivity: -2 dBu / +4 dBu

Processor Section

Crossover frequencies: 1600 Hz
Protections: RMS
Limiter: Soft limiter
Controls: Volume, Boost, Mic/Line

Amplifier Specifications

Total power: 800 W PEAK
High frequencies: 200 W PEAK
Low frequencies: 600 W PEAK
Total power: 400 W RMS
High frequencies: 100 W RMS
Low frequencies: 300 W RMS
Cooling: Convection
Connections: VDE AC socket

Cabinet

Cabinet Material: Composite PP
Hardware: 2xM10 flying p.
Handles: 1 top
Pole Mount/Cap: yes
Grille: steel
Colour: Black

Physical Specifications

Height: 480/18.88 mm/inch
Width: 291/11.44 mm/inch
Depth: 276/10.86 mm/inch
Net Weight: 10.6/23.37 kg/lbs


Applications

• Nearfield & portable PA
• Foreground/background PA, distributed PA, frontfill and sidefill
• Houses of worship, video monitoring, retail, clubs, performance theatre, theme parks
• Compact voice reinforcement systems
• Stage monitoring
