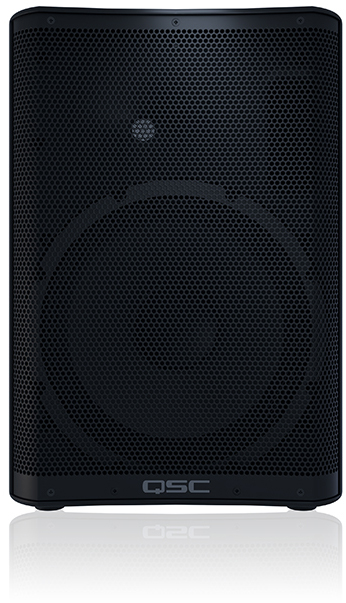

QSC CP12 aktiivikaiutin

QSC CP12 aktiivikaiutin

Korkea suorituskyky, erinomainen laatu ja luotettavuus. Nämä ovat QSC-brändin tunnusmerkkejä ja syy, miksi miljoonat ammattilaiset ympäri maailmaa ovat alkaneet luottaa QSC:hen, joka auttaa heitä tarjoamaan ylivoimaisia kokemuksia ja ikimuistoisia suorituksia. CP-sarja seuraa samaa perinnettä ja tarjoaa samalla erittäin kompaktin muodon ja luokkansa johtavan äänenlaadun.

Features
- Compact and powerful performance
- 1000 Watt peak power Class-D amplifier module
- Easily selected contours for commonly-used applications
- Advanced DSP with Intrinsic Correction? for superior sound quality and speaker protection
- Directivity Matched Transition® (DMT) for consistent frequency response across the entire coverage area
- Light weight and highly portable
- Professional appearance looks great in any application
- Use for main PA, stage monitor, or instrument amplifier
- 35 mm pole socket
- Optional yoke, tote, and outdoor cover accessories
- Complete EASE and CAD information available online

Model: CP12
Configuration: Two-way active loudspeaker
LF Transducer: 305 mm (12 in), cone
HF Transducer: 35.6 mm (1.4 in) compression driver
Frequency Response (-6 dB): 49 - 20 kHz
Frequency Range (-10 dB): 47 - 20 kHz
Nominal Coverage Angle: 75° Axisymetric
Maximum Rated SPL1: 126 dB
Amplifier: Class D
Peak: 800 W (LF), 200 W (HF)
Controls:
- Power
- 2 × Gain
- Mic Boost Push Switch
- 6-way Contour Selection Switch
Indicators:
- Power LED
- 2 × Input Signal LED
- Input B MIC selected LED
- Limiter active LED
Connectors:
- 2 × locking XLR/F ¼” combo (Line Input and Mic/Line input)
- 1 × 3.5 mm TRS (Stereo Input)
- 1 × XLR/M (Mix Output)
- 1 × IEC power connector
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption (1/8th Power): 100 VAC, 0.75A - 240VAC 0.31A
Enclosure Material: Polypropylene
Attachment Points: M8 threaded insert
Color: Black (RAL 9011)
Grille: 18 Gauge powder-coated steel
Speaker Dimensions (H×W×D): 516 × 350 × 323 mm, 20.3 × 13.8 × 12.7 in
Carton Dimensions (H×W×D): 430 × 430 × 604 mm, 17 × 17 × 23.8 in
Net Weight: 13.7 kg / 30.3 lb
Shipping Weight: 16.5 kg / 36.4 lb
Regulatory: EMC, UL, CB
Optional Accessories: CP12 Tote, CP12 Outdoor Cover, CP12 Yoke
