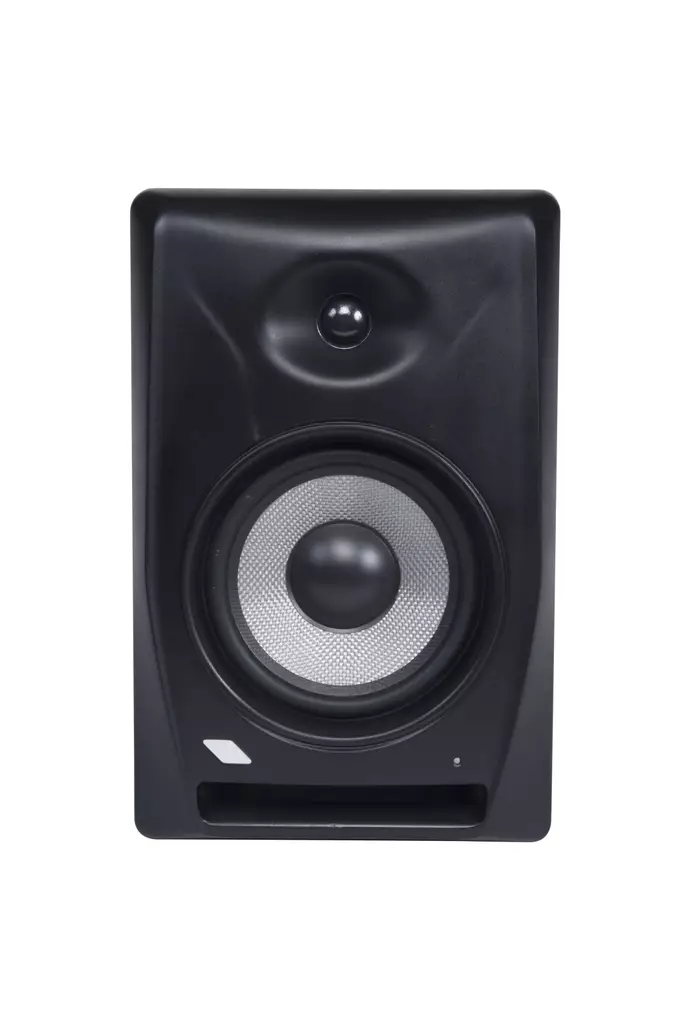

Proel Eikon 5 2-tie aktiivikaiutin

Proel Eikon 5 2-tie aktiivikaiutin

Jopa neljän vuoden takuu rekisteröimällä!

Bi-amplified 2-way system
- 0.75" soft-dome tweeter for detailed response and a high-resolution sound
- Proprietary integrated elliptical waveguide with accurate directivity control
- Long-excursion 5.25” woofer with lightweight fiber-glass composite cone
- Precisely calculated front tuning port for greater low-frequency extension
- Multiple audio input connectors for connecting any kind of source
- HF adjustment for a flexible control of high frequency
- Sophisticated, carefully designed crossover filters an improved resolution
- High-headroom Class AB 15+30W amplifiers with dual accurate CLIP LIMITER
- SPL MAX 104 dB
- Frequency response 55 Hz - 20 kHz

TECHNICAL SPECIFICATIONS
- System type: 2-way vented enclosure
- High Frequency Device: 0.75 “ dome tweeter on elliptical waveguide
- Low Frequency Device: 5.25” woofer with fiberglass reinforced cone
- Angular Coverage: 90° H x 60° V
- HF Amplifier Continuous Power: 15W Class AB
- LF Amplifier Continuous Power: 30W Class AB
- Processing: Analog
- Frequency Response: 55 Hz - 20 kHz
- Max SPL: 104 dB
- Connectors: 1/4” JACK, XLR-F, RCA
- Controls: LEVEL, HF ADJUST
- Construction: Vinyl laminated MDF cabinet with ABS front
- Cabinet Colour: Black
- Power Supply: 230 VAC or 120 VAC 50/60 Hz with LINE VOLTAGE selector
- Dimensions (W x H x D):185 x 285 x 230 mm
- Weight: 5 kg
