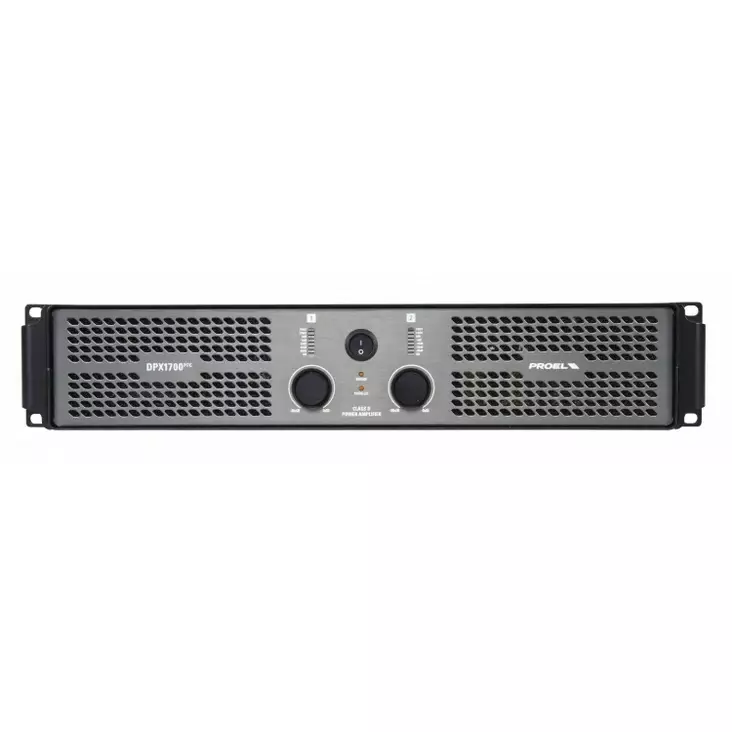

Proel DPX1700PFC päätevahvistin

Proel DPX1700PFC päätevahvistin

- High-density Class D technology
- Very efficient Switch Mode Power Supply (SMPS) with PFC
- Built-in 24dB/octave stereo crossover
- Extensive protection system for maximum reliability
- Integrated fast-attack CLIP LIMITERS
- STEREO / BRIDGE / PARALLEL mode
- XLR input and link connectors
- SPEAKON output connectors
- AC, DC, thermal, short-circuit and VHF protection
- Precise 8-segment LED ladders
- FRONT-TO-BACK cooling system with variable speed fan
- Ultra-lightweight all-aluminum chassis
- TOTAL WEIGHT less than 5kg
- Jopa neljän vuoden takuu rekisteröimällä!

Specifications:
Power 8 ohm: 500 W
Power 4 ohm: 850 W
Power BRIDGE 8 ohm: 1700 W
Output Stage: Class D
Frequency response (+0.5/-0.5 dB): 20 Hz - 20 KHz
Input Sensitivity: +2.3 dBu / 1.0 Vrms
GAIN (nominal/fixed): 38.2 dB
Input Connectors / Impedance: XLR-F (INPUT), XLR-M (LINK) / 20 Kohm (balanced), 10 Kohm (unbalanced)
Output Connectors: SPEAKON and Binding Post
Damping Factor: > 500
S/N Ratio (unweighted): > 100 dB
THD+N: < 0.15%
Controls: INPUT LEVEL, STEREO/BRIDGE-PARALLEL, FLAT/BI-AMP/HPF
LED Indicators: 7-LED BAR (ON, LIMIT, PROTECTION, -5dB / -10dB / -20dB / -40dB SIGNAL)
Cooling: Variable speed DC fan, air flow from front to rear
Protections: AC low power, DC, thermal, short circuit, VHF, CLIP limiter
Mains Supply Voltage: 100-240 VAC 50/60 Hz (+-10%)
Dimensions (W x H x D): 483 x 89 x 255 mm (19" x 3.5" x 10")
Weight: 3.8 Kg (8.4 lb)
