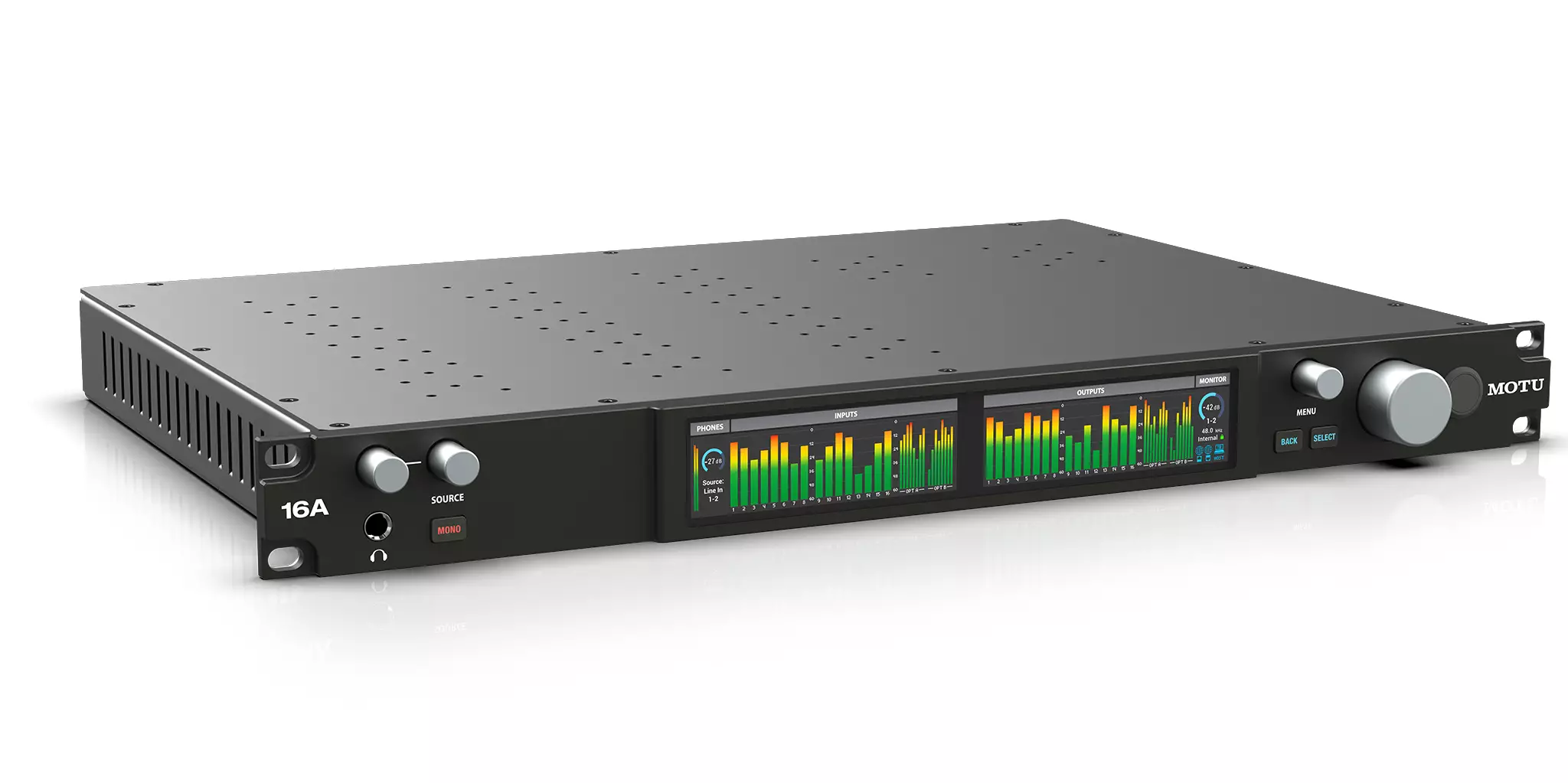

MOTU 16A äänikortti

MOTU 16A audio interface (2289,00)
- 32 x 34 Thunderbolt 4 / USB4 / AVB -äänikortti
- Täysin uudistunut MOTU 16A (2025)
- ESS Sabre32 Ultra DAC-Technology
- 32 tuloa ja 34 lähtöä
- 16 balansoitua/balansoimatonta plugisisääntuloa ja -ulostuloa
- 2 x 8-kanavaista ADAT -optista liitäntää (16 ADAT-kanavaa)
- Wordclock sisään/ulos
- Kuulokeulostulo omalla tasonsäädöllään
- 24-bit / 192 kHz
- Mitat: 482 x 311 x 44 mm
- Paino: 5 kg

Myyntipakkaus sisältää:

- MOTU 16A -äänikortti
- 40 Gbps USB-C-kaapelin (yhteensopiva Thunderbolt 3/4:n, USB4:n, USB3:n ja USB2:n kanssa)

Mukana tulevat ohjelmistolisenssit:

CueMix Pro for macOS, Windows and iOS Drivers for macOS, Windows and iOS** MOTU Performer Lite for macOS and Windows 6GB of loops and sounds from Big Fish Audio, LucidSamples, Loopmasters and MOTU

16A Feature Highlights:

- Thunderbolt 4 / USB4 audio interface with DSP, mixing, effects and networking
- Two bright, 24-bit RGB LCDs provide 480 x 128 pixel high-resolution metering for all analog and digital I/O, plus detailed status info and access to hardware settings from a simple and convenient menu.
- Renowned ESS Sabre32 DAC technology delivers 125 dB dynamic range. Support for all standard sample rates up to 192 kHz.
- Round-trip latency (RTL) performance as low as 1.8 ms at 96kHz with high-performance DAW hosts.
- Universal Thunderbolt/USB-C connectivity
- 32 inputs and 34 outputs, including 16 TRS analog (line-level) in/out, two banks of 8-channel optical I/O, and a front-panel headphone output.
- Powerful 32-bit floating point DSP delivers 64-channel mixing with 64 inputs, 32 busses, and effects processing, including reverb, 4-band double-precision EQ, high-pass filter, gate and compression at all sample rates up to 96 kHz.
- AVB Networking
- Patchbay routing and splitting
- Wi-Fi control
- Precision boost/trim for analog I/O
- Control room features
- Flexible headphone output
- Word clock in/out/thru

66 simultaneous audio channels

Sixteen balanced/unbalanced TRS analog inputs and outputs, 2 x 8-channel ADAT optical ports, and an independent stereo headphone output deliver a total of 32 inputs and 34 outputs. Use the 16A for expanded analog I/O for your computer, or as a flexible, comprehensive patchbay and mixer. Or both!

The 16A is equipped with a 64-channel mixer designed just like a large format mixing console. The 64 inputs can take signal from anywhere: the physical inputs on the 16A interface itself, audio channels from host software on your computer, audio network streams, or even mixer outputs. The mixer provides 26 aux busses, plus main, reverb, monitor, and solo buses.

All inputs and output buses provide 4-band double-precision parametric EQ and a compressor. Additionally, input channels include a High-Pass Filter and Gate. In essence: capable and transparent mixing.

Patchbay routing and splitting:

Using intuitive, virtual patch cords, you can easily route any source signal to any destination. Sources can be analog or digital inputs on the interface, computer channels, mixer bus outputs, or audio network streams from other devices on the network. Destinations include interface outputs, host software inputs, mixer inputs, or any other device (or computer) on the network. You can even split any single source (or stereo pair) to unlimited multiple output destinations.
