Mojave MA-300 putkimikrofoni

Mojave MA300 putkimikrofoni
- Laadukas, ääneltään lämminsävyinen, laajakalvoinen putkimikrofoni tuo upean vintage-fiiliksen instrumenttien ja laulun äänittämiseen.
- Isokalvoinen kondensaattori putkimikrofoni
- Valittava, erikseen säädettävä suuntakuvio (pallo, kardioidi, kahdeksikko)
- 15dB pad
- Kytkettävä bassoleikkuri
- 132 dB SPL
- Myyntipakkaus sisältää mikrofonin lisäksi kuljetuslaukun, virtalähteen, joustokehdon ja kytkentäkaapelit.

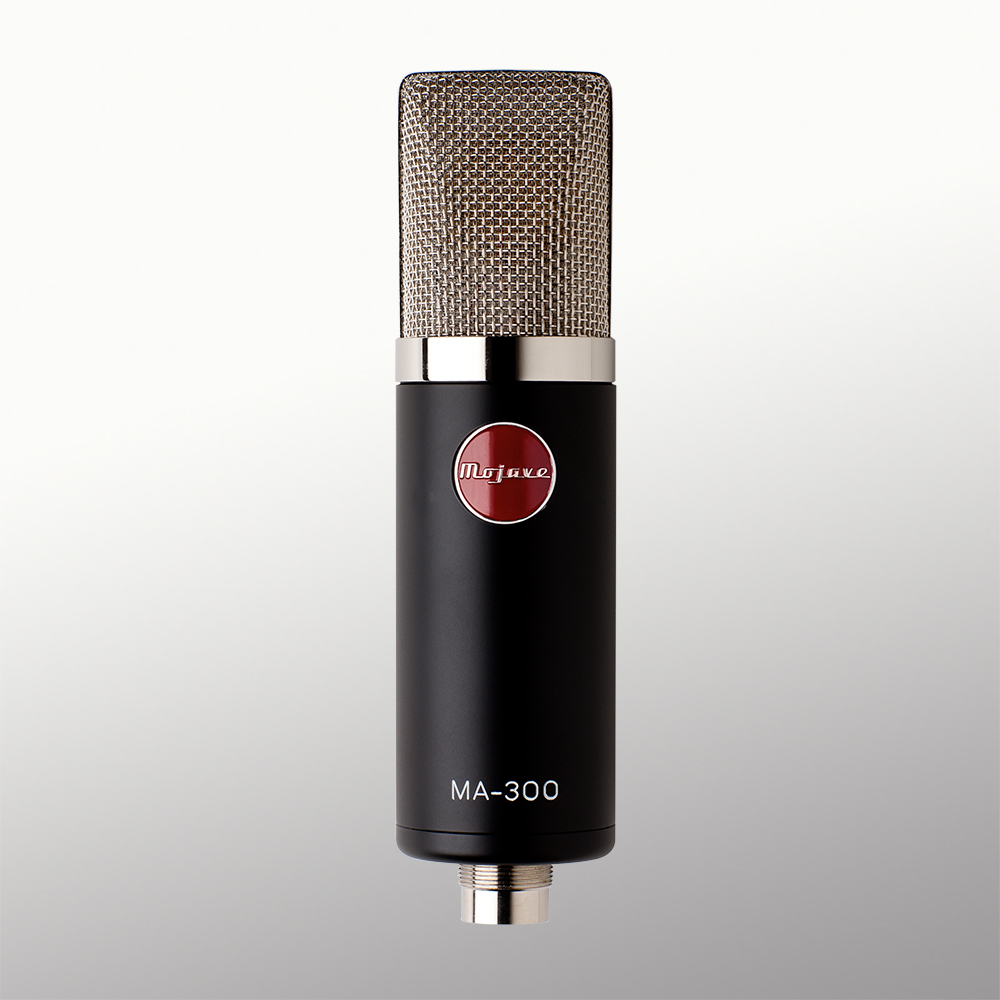

The MA-300 is a multi-pattern large diaphragm, vacuum tube condenser microphone. Based upon the widely accepted MA-200 designed by David Royer, the MA-300 adds a continuously variable pickup pattern selector, 15dB pad and a switchable bass roll-off. The MA-300 gives warm, full-bodied reproductions of vocals and instruments, with none of the shrillness and high frequency distortion artifacts that are often encountered with modern condenser microphones.

Utilizing hand-selected, double diaphragm 3-micron capsules, high-quality Jensen audio transformers and military-grade JAN 5840 vacuum tubes, the MA-300 performs at a level reminiscent of some of the best loved classic condenser microphones. The MA-300 power supply can be set for 115V and 230V, 50 or 60 Hz, through an internal switch (100V is also available). Each MA-300 microphone, power supply and cable set is burned in for 24 hours, carefully tested and evaluated, then packaged in its protective case-within-a-case.

Features

Remotely controlled, continuously variable polar pattern selector
Switchable 15dB pad
Switchable Bass Roll-off
Hand-selected 3-micron double diaphragm capsule
Jensen audio transformer
Military grade JAN 5840 vacuum tube
Internal switchable power supply voltage
Ultra clean signal path

Recommended Applications

Use anywhere you would use a large diaphragm tube microphone.

Vocals
Voice Over and Broadcast
Acoustic Instruments
Piano
Drum Overheads, Drum Rooms
Orchestral Recording
Choral Recording

Technical Specifications

TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor – double diaphragm.
DIAPHRAGM: 1-inch diameter, gold sputtered
DIAPHRAGM THICKNESS : 3-microns
POLAR RESPONSE: Continuously variable from omnidirectional to figure-eight.
FREQUENCY RESPONSE: 20 Hz to 20 KHZ, +/-3 dB at “flat” setting of bass cut switch. Bass cut switch provides 6 dB per octave attenuation below 100 Hertz in “cut” setting
SENSITIVITY: -37dB re 1V/pa
MAXIMUM SPL: 120 dB with pad off, 135 dB with pad on.
DISTORTION:< 1% @ 117 dB SPL , < 3% @ 125 dB SPL with pad off, < 1% @ 132 dB SPL, < 3% @ 140 dB SPL with pad on
SELF NOISE: 14db nominal, not to exceed 16db (A Weighted)
PAD: 15 dB
BASS CUT: 6 dB per octave below 100 hertz.
DIMENSIONS AND WEIGHT:
Carrying case with microphone, power supply, shock mount
and cables: 13 lbs.
Microphone: 7 5/8? X 2?, 1 lb.
