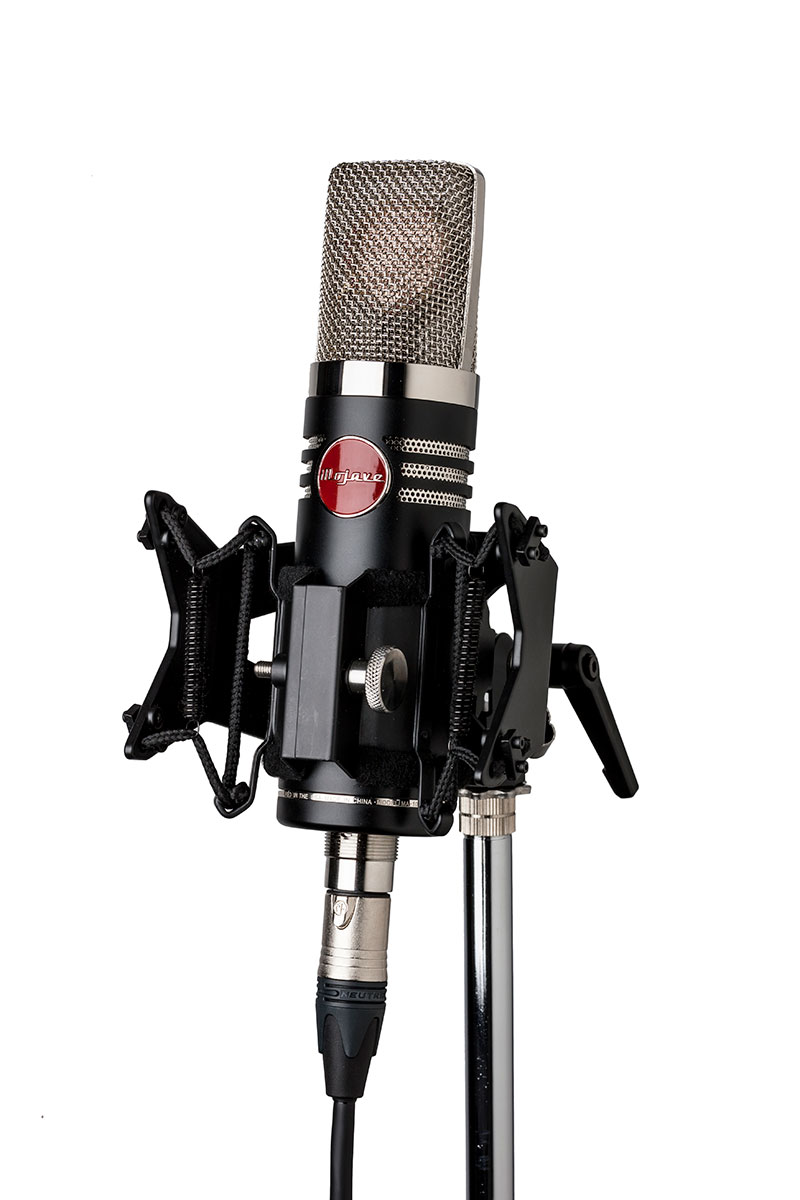

Mojave MA-1000 putkimikrofoni

Mojave MA-1000 putkimikrofoni
- Upea moderni toteutus klassisesta, laajakalvoisesta putkimikrofonista.
- Isokalvoinen kondensaattori putkimikrofoni
- Myyntipakkaus sisältää mikrofonin lisäksi virtalähteen, Royer Labsin joustokehdon, Mogamin laadukkaat kytkentäkaapelit ja kuljetuslaukun.
- Valittava, erikseen säädettävä suuntakuvio (pallo, kardioidi, kahdeksikko)
- 251-tyylinen kapseli
- 5840 putki

Drawing inspiration from some of yesterday’s most revered microphones, Technical Grammy® award winning microphone designer David Royer has created a thoroughly modern tube microphone that features an original new old-stock 5840 tube, 251-style capsule, and custom designed transformer built by Coast Magnetics. The result? A sweet, airy top end, ‘you-are-there’ realism in the mids and an accurate yet authoritative bottom end.

The Signature Series has been exhaustively field tested against microphones often costing $20K or more – universally evoking the same ‘Wow’ response usually reserved for only the most prized vintage mics. Push up the fader and say ‘Ahhh!’ With performance, reliability, and quality like this, we are sure you’ll agree that Mojave’s new Signature Series microphone is a New American Classic.

Features:

Original new old-stock 5840 tube
251-style capsule
Custom designed transformer by Coast Magnetics
Remotely controlled, continuously variable polar
pattern selector, located on power supply
Switchable 15dB pad
Switchable Bass Roll-off
Internal switchable power supply voltage
American Classic Design
Comes with Sling-Shock® licenced from Royer Labs
Premium Cable made with Mogami Cable
and Neutrik connectors

Recommended Applications:

Vocals and Voice-overs
Broadcast
Acoustic Instruments
Piano
Drum Overheads, Drum Rooms
Orchestral Recording
Choral Recording

TECHNICAL DATA

TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor – double diaphragm.
DIAPHRAGM: 1-inch diameter, gold sputtered
DIAPHRAGM THICKNESS: 3-microns
POLAR PATTERN: Continuously variable from omnidirectional to figure-eight.
FREQUENCY RESPONSE: Bass cut switch provides 6 dB per octave attenuation below
100 Hertz in “cut” setting
SENSITIVITY: Omni -37.5 dB, Cardioid -36.0 dB, Figure-8 -34.0 dB re. 1V/pa
MAXIMUM SPL: 120 dB with pad off, 135 dB with pad on.
DISTORTION: < 1% @ 117 dB SPL , < 3% @ 125 dB SPL with pad off
< 1% @ 132 dB SPL, < 3% @ 140 dB SPL with pad on
SELF NOISE: 14dB nominal, not to exceed 16dB (A weighted)
PAD: 15 dB
BASS CUT: 6 dB per octave below 100 hertz.
IMPEDANCE: 200 O
POWER REQUIREMENT: 6 VDC @ 150 mA. 125 VDC @ .7 mA
(from dedicated power supply)
DIMENSIONS AND WEIGHT:
Carrying case with microphone, power supply, shock mount and cables: 13 lbs. (5.9Kg)
Microphone: 7 5/8” X 2” (194mm x 51mm), 1 lb. (0.45Kg)
