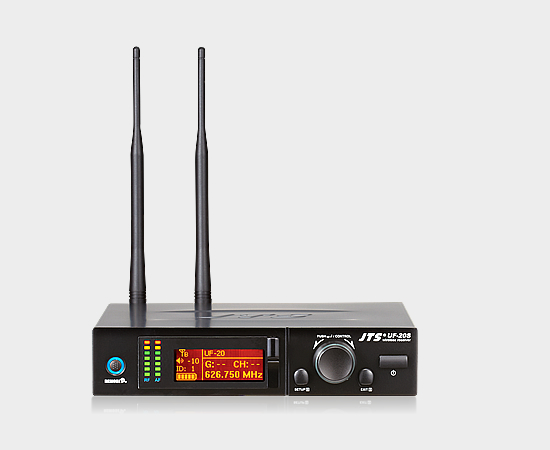

JTS UF-20S diversity vastaanotin

JTS UF-20S vastaanotin (689,00)
Rajoitettu tarjous!
- Diversity 70 MHz:n UHF-laajakaista vastaanotin taajuusaluella 624-694 MHz
- 2800 valittavaa taajuutta
- Ammattikäytöön!

- UHF True diversity technology renders 200-480 meters of operation distance
- Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
- Preset 15 groups each of up to 63 compatible channels
- User programmable 6 groups each of 64 channels
- Free space scan function
- JTS Patented obstacle-free RF
function synchronizes a transmitter by pushing a button
- JTS LCX circuit design technology minimizes companding noise

NEWEST FEATURE:
- The is now not only sends the
frequency data but also transmitter’s RF power, sensitivity, low cut, key lock and user's name.
- RF "NO SIGNAL" alert function.
- AF "MUTE" alert function.
- Transmitter "LOW BATTERY" alert function.
- Built in equalizer

SPECIFICATIONS
UF-20S
Frequency Preparation: PLL Synthesized Control
Frequency Setting : JTS patented obstacles-free RF REMOSET
Carrier Frequency Range: UHF 470~960 MHz
Channel: Single
Bandwidth: 60~75MHz Wideband
S / N Ratio: > 108dB (A)
T.H.D: <0.5% @ 1KHz
Chassis: 1U/2U standard metal chassis
Preset Channels / Group:
- From group 1 ~ 15 up to 63 interference-free compatible channels.
- 844 preset channels / group and 3000 selectable frequencies across 63 to 75 Hz Bandwidth.
- User programmable from U1 ~ U6 each of 64 channels reserved.
Display: LCD
Display Contents: Group, Channel, Frequency, Antenna A / B, RF / AF Level Meter, Mute Display, Transmitter Battery Status, REMOSET ID Number, User Name, Squelch
Sensitivity: 6dBµV, at S / N> 80dB
Receiving Mode: True diversity
Audio Output Level: Maximum 6dBu
Receiving Mode: True diversity
Audio Output Level: Maximum 6dBu
AF Output Impedance: 600Ohm
Frequency Response: 50Hz ~ 18kHz, with high-pass filter
Squelch: Pilot Tone & Noise Mute
Power Supply: 100 ~ 240V or 12V DC
Output Connector: 1 XLR Balanced Socket
1 Ø6.3mm Unbalanced: phone jack
Dimension (m / m): 212mm(W)x44Mmm(H)x213.9mm(D)
