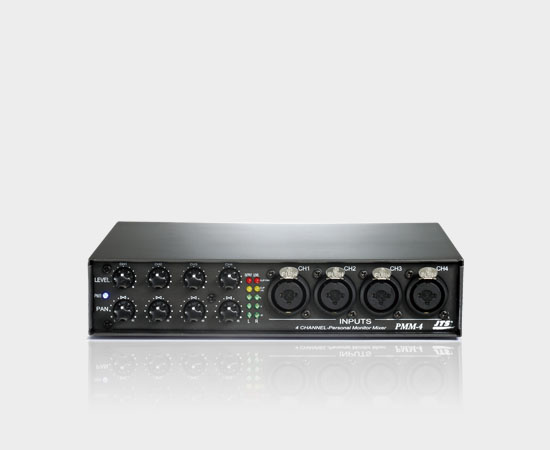

JTS PMM4, 4-kanavainen monitorimikseri

JTS PMM4 4-kanavainen monitorimikseri (269,00)
- Rajoitettu tarjous!
- Näppärä pikkumiseri split outputeilla moneen käyttöön
- 4 inputtia (XLR ja 6,3 mm TS plugi)
- 2 AUX lisätuloa
- 4 split outputtia

The PMM-4 is ideal as a primary or submixer for meeting rooms, Houses of Worship, broadcast and educational public address systems.
Four inputs with XLR 1/4” phone jack combo connecter. Two additional auxiliary inputs and four split outputs are provided for expansion capabilities.

* Personal Monitor Mixing
* Courtrooms, Meeting Rooms
* Restaurants, Schools
* House of Worship
* Aerobics/Health Club

Frequency Response22~22,000 Hz
Distortion<0.025%
Noise.<-61dB
CMRR>70dB
Power Supply12~18VDC, 600mA
Dimensions (mm)205(D)*212(W)*43.5(H)
Net Weight1.41kgs
Input ConnectorXLR / 1/4” balance phone jack combo
Input Impedance5.9KO
AUX Input Connector1/4” phone jack (left / right channel)
AUX Input Impedance18.2 KO(MONO:9.1 KO)
Main Mix Output Connector1/4” phone jack (left / right channel)
Main Mix Output Impedancebalanced:1KO, unbalanced:500O
Output level (Max)6.5±0.3dB (INPUT CH1~4)
Split Output ConnectorXLR
Split Output Noise<-110dB
