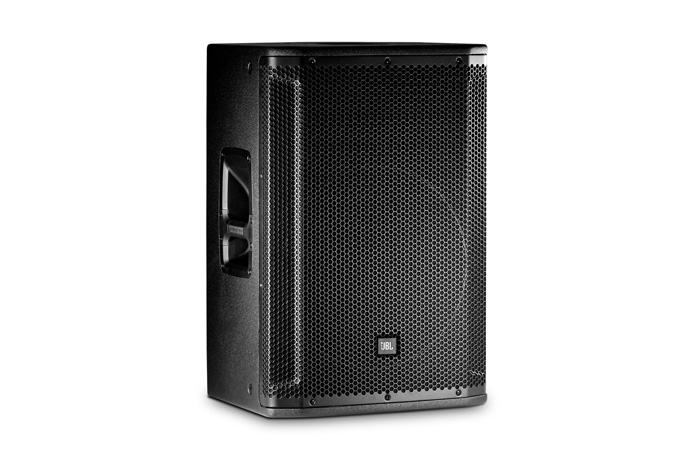

JBL SRX815 2-tie passiivikauitin

JBL SRX815 2-tie passiivikauitin

15" Two-Way Bass Reflex Passive System
SRX815 is a two-way full range speaker with a 15” woofer made for use as a light to medium duty main PA, monitor, or rear or side fill. Featuring M10 suspension points and feet for both floor standing and monitor use, the SRX815 is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.

FEATURES

Premium JBL Transducers
Rugged, versatile enclosures
Tunings available for Crown amps and dbx signal processors
Fully supported in Audio Architect
Power Handling: 3200W Peak, 1600W Program, 800W Continuous
Frequency Range: 41Hz-20kHz
Frequency Response: 56Hz-20kHz
Max SPL: 136dB
Coverage Pattern: 90 x 50
Amplification options: Passive/Bi-Amp

APPLICATIONS

Live performance systems.
Mobile and fixed DJ systems.
Sound system rental and tour.
Permanent installations.

SPECIFICATIONS
^
System TypePassive 15”, two-way, bass-reflex
Maximum SPL Output136dB
Frequency Range (-10dB)41hz - 20khz
Frequency Response (- 3dB)56hz - 20khz
Sensitivity (1W/1m)95dB
System Power Rating3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance8 Ohm
ConnectorsNL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational ModesPassive/Bi-Amp
LF Driver2275H
HF Driver2432H
Coverage Pattern90 x 50
Crossover Frequency1.9khz
Enclosure Material18mm plywood
Monitor Angle50°
Suspension/MountingDual 36mm pole socket, 12 x M10 Suspension points
Handles3
FinishObsidian Duraflex™ finish
GrillePowder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (L x W x H)18.82" x 18.03" x 27.20" (478mm x 458mm x 691mm)
Weight57.0 lbs (25.9kg)
Shipping Weight67.0 lbs (30.4kg)

SRX-sarjan takuut:
-5 vuotta: Kaiutinelementti ja jakosuodin
-3 vuotta: Vahvistinmoduli
-2 vuotta: Kotelo
