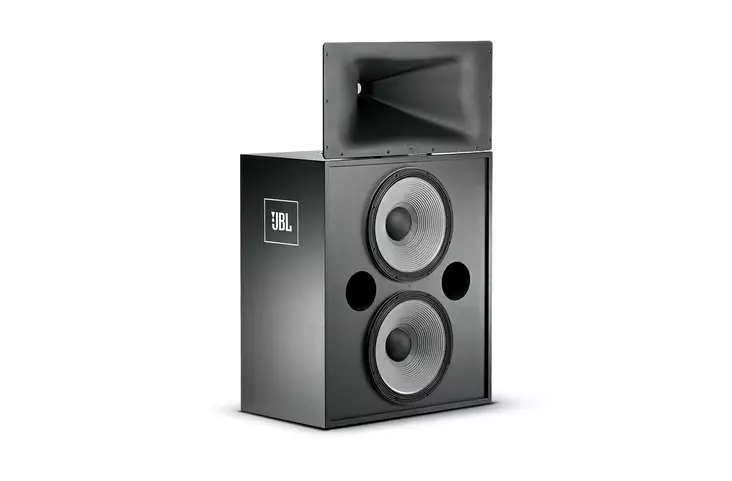

JBL Sreen Array 4722N elokuvateatterikaiutin

JBL Sreen Array 4722N elokuvateatterikaiutin (2980,00)
Huom! iso painava paketti. Toimitus sovittava erikseen!
- järeä 2-tie ScreenArray elokuvateatterikaiutin
- pasiivijakosuotimella, jakotaajuus 800 Hz
- 30 Hz - 20 kHz
- 800 W rms, 2,4 kW peak
- herkkyys 104 dB/W/m
- 4 ohm
- 136 dB SPL
- mitat: 1265 x 762 x 450 mm (H x W x D)
- paino: 55,8 kg

- Kaiutin koostuu kahdesta yksiköstä:
Basso-osa (JBL 4739 Cinema Low Frequency Section)
2 x 15"
Diskanttiosa (JBL 4722N-HF High Frequency Section)
1 x 3" kompressiodriveri isossa torvessa

Two-Way ScreenArray Cinema Loudspeaker System

The 4722 provides smooth and accurate reproduction of cinema soundtracks in a compact and very costeffective system

Features

- Two-way system provides smooth and accurate reproduction of cinema soundtracks
- 4722 is available as a Passive model with a network (4722N) or the Bi-amp Ready 4722
- Dual 380mm (15 in) low frequency transducers
- Power capacity: 600 W continuous IEC pink noise

Specifications

Frequency Response (±3 dB) 40 Hz - 19 kHz
Frequency Range (-10dB) 30 Hz - 20 kHz
Sensitivity 104dB @ 2.83V
Nominal Impedance 4722N: 4 Ohm, 4722: HF 8 Ohm, 4722: LF 4 Ohm
Maximum SPL (1m) 130dB, @ 1m (3.3ft) 136 dB peak
Bi-Amp System Input Power Rating LF: 808W HF: 85W
Crossover Frequency 4722: 630Hz 4722N: 800Hz
Dimensions (H x W x D) 1265 x 762 x 450mm(49.9 x 30 x 17.75in)
Net Weight (each) 123 lbs (55.8 kg)
Shipping Weight 144 lbs (65.4 kg)
4739 Low Frequency 2 x 26SH-1 380 mm (15 in) dia., 76 mm (3 in) edgewound ribbonvoice coil transducers mounted in 4509 LF enclosure
4722-HF High Frequency Pack One 2432H compression driver, One2384 horn, one adjustable bracket
Power Handling (2Hr AES Rating)
