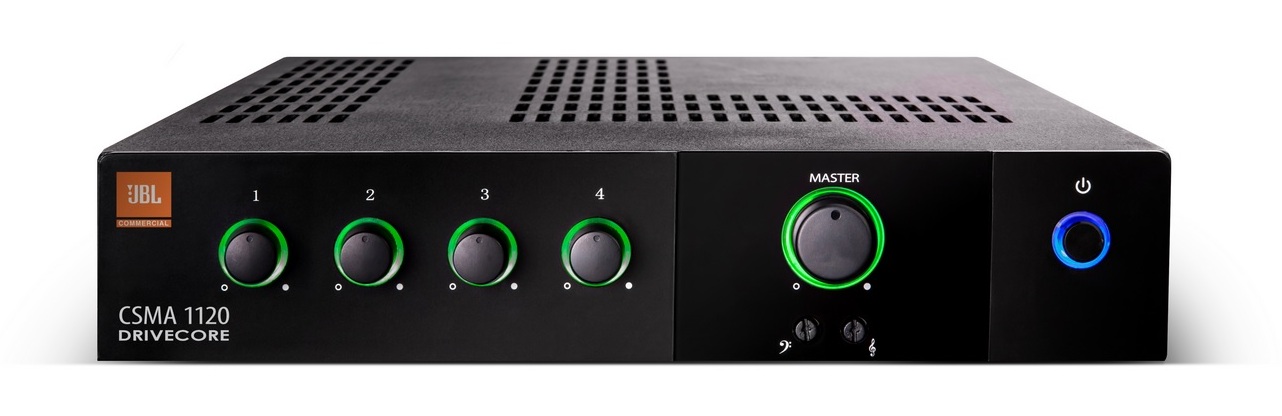

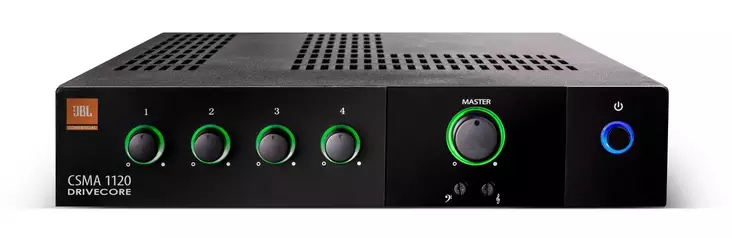

JBL CSMA-1120 mikserivahvistin

JBL CSMA 1120 mikserivahvistin (845,00)
- 4 sisään / 1 ulos
- 120 W tehoa
- Euro-block tyyppiset sisään ja ulostuloliitännät (mikki/linja)
- Basso- ja diskanttisäädöt
- Kompakti koko
- 1 U räkkikorkeus, räkkiasennussarja mukana
- Passiivinen jäähdytys, ei tuuletinta

Output 120W @ 4/8 Ohms (1kHz Power, THD+N<0.5%
Frequency Response +/- 1dB (@1W into 4 or 8 Ohms)
Load Impedance Stable from 2 - 16 Ohms
Sensitivity 1.4Vrms
Signal to Noise Ratio Greater than 100 dB - 1kHz, A-weighted
Input Impedance Balanced 20K Ohms/Unbalanced 10K Ohms
Max Input +20dBu Typical
Included Accessories Rack mounting kit
Dimensions 1.7" x 8.6" x 11.9" (43.3 mm x 218.5 mm x 303.4 mm)
Shipping Weight 180: 9.9 lbs (4.5 kg); 1120: 10.1 lbs (4.6 kg)

The JBL® CSMA series of Mixer-Amplifiers are a professional tool with a sleek industrial look that is designed and built for commercial sound applications. Utilizing Crown’s DriveCore technology enables significantly reduced size and weight – all mixer/amps are highly efficient, fanless and just 1U rack space high. There are both single channel and two channel models with four or eight mixer channels, respectively.

The CSMA mixer/amps offer unmatched ease of use, with a clean, front panel featuring only volume controls for each channel, master volume adjustment, adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.
