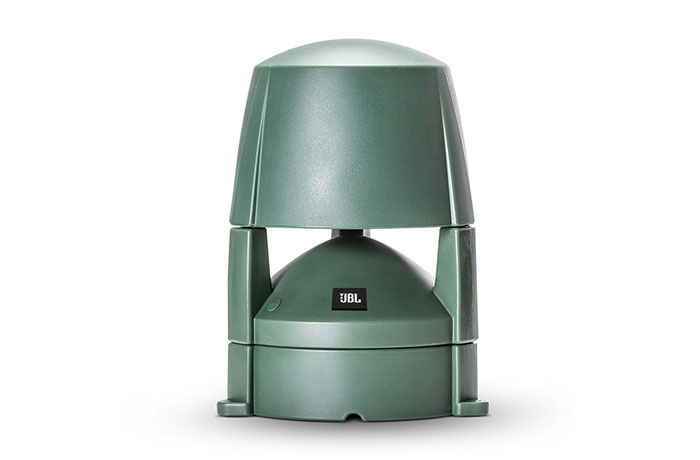

JBL Control 85M maastokaiutin

JBL Control 85M säänkestävä maastokaiutin (498,00)
- 80 W, 2-tie 5,25" + 0,75" luontoon mukautuva pasiivikaiutin
- 8 ohm hifikäyttöön tai 70V/100V järjestelmiin
- suuntakuvio 360 astetta
- 55 Hz - 18 kHz

JBL Control 85M on uunniteltu ulkokäyttöön, erittäin säänkestävät Control 80-sarjan maisemakaiuttimet tarjoavat erinomaisen täyden kaistan äänentoiston ja 360 asteen peittoalueen. Control 80-sarjan maisemakaiuttimia voidaan käyttää useissa sovelluksissa, kuten ostoskeskuksissa, teemapuistoissa, urheiluareenoilla, hotelleissa, kasinoissa, lomakohteissa, ravintoloissa, vapaa-ajanviettopaikoissa, julkisissa sisäänkäynneissä, ja missä tahansa, missä tarvitaan korkealaatuista musiikkia ja/tai kuulutuskaiutinta. Kaiutin on huomaamaton ja helposti naamioitavissa ympäristöön. Kova polyetyleenikotelo kestää nurmikonhoitolaitteiden ym. kaltoinkohtelun ja kotelon väri ulottuu koko materiaaliin, joten kaiutin säilyttää värit jopa raaputettuna tai naarmuuntuneena.

Two-Way 5.25 inch (135mm) Coaxial Mushroom Landscape Speaker

• 5¼" highly weather-resistant driver
• ¾" soft-dome highly weather-resistant tweeter
• 80W Pink Noise Power Handling (160W program) in direct 8Ώ setting, plus built-in 30W 70V/100V multi-tap transformer
• Tough polyethylene highly weather resistant enclosure
• Fully isolated center chamber for wiring protection
• High fidelity sound character with broad frequency range of 55Hz - 18kHz

SPECIFICATIONS:
Frequency Response (-10dB)	55 Hz – 18 kHz
Power Rating	160 W Continuous Program (2 hrs)
	80 W (320W peak), Continuous Pink Noise (2 hrs)
	45 W (180W peak) Continuous Pink Noise (100 hrs)
Transformer Taps	70V: 30W, 15W, 7.5W & 3.8W
	100V: 30W, 15W, 7.5W
Frequency Response (±3 dB)	65Hz - 16 kHz
Maximum Input Voltage	23.3 V
Sensitivity	86 dB, 1W @ 1m (ave. 80Hz - 16kHz)
Nominal Coverage Angle	360° horizontal, 160° vertical (primary listening 10° to 50° up from ground).
Directivity (Q)	2.2
Directivity Index (DI)	3.4 dB
Maximum SPL	105 dB @ 1m
Nominal Impedance	8Ω (at 8Ω setting)
Insertion Loss
Thru Setting	8Ω nominal
Crossover Type	2nd Order LPF on LF and 2nd Order HPF on HF
Recommended Protective High-Pass	65 Hz for 8Ω operation, 24 dB/oct
	60 Hz for 30W tap, 24 dB/oct
	50 Hz for 15W, 7,5W, and 3.7W taps, 24 dB/oct
Low Frequency Driver	135 mm (5.25 in) diameter LF driver, Kapton™ former, 35.5mm (1.4 in) voice coil, polypropylene cone and polyurethane surround.
High Frequency	19mm (0.75 in) diameter HF driver Polyetherimide (PEI) dome.
Enclosure Material	LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.
Grille	Powder coated stainless steel.
Environmental	IP-55 rating per IEC529 (dust protected and protected against jets of water). Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.
Agency Ratings	UL1480, Transformer UL Recognized per UL1876, ROHS compliant.
Terminals	Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section).
Wiring	Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22 mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections. Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For installation instructions see Installation Guide (# IS C80MLS).
Colors	Hunter Green, RAL6018
Dimensions (H x W x D)	432 x 291 x 291mm (17 x 11.5 x 11.5 in.)
Net Weight	5.5 kg (12 lb)
Shipping Weight	7.3 kg (16 lb)
Included Accessories	(2) wire nuts, (2) gland nuts, (1) right-angle screwdriver
Installer-Supplied Required Tools	22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
