JBL Control 128WT asennuskaiutin

JBL Control 128WT asennuskaiutin (429,00)
Upotettava seinäasennuskaiutin, valkoinen.
- 2-tie passiivikaiutin
- 8" woofer 1" tweeter

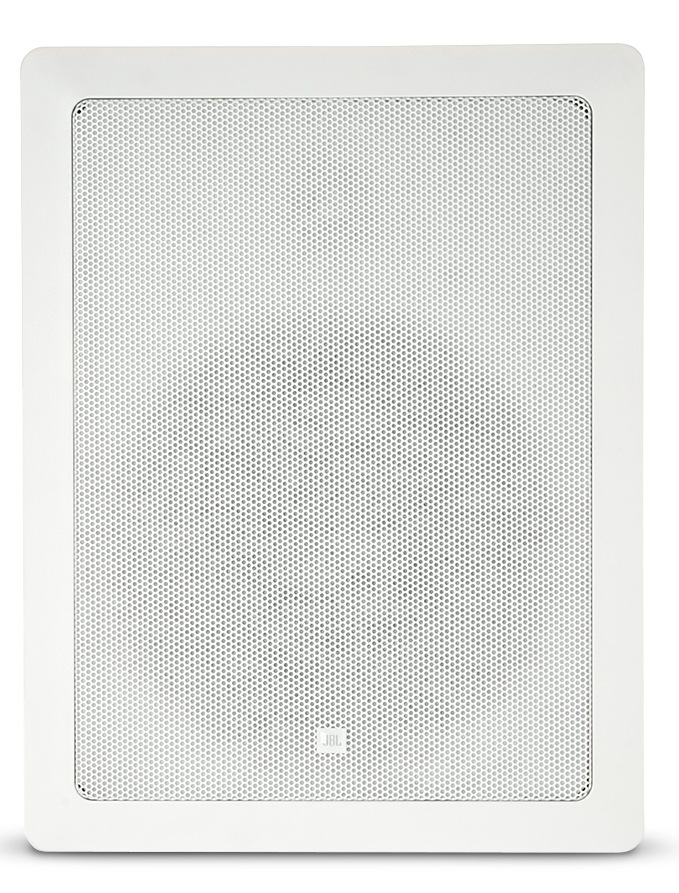

The Control 128WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

Components:

- 200 mm (8 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround.
- 25 mm (1 in) pure-titanium dome low-diffraction swivel aimable titanium tweeter.
- High-slope crossover for natural midrange sound.
- Extended bandwidth performance of 30 Hz – 20 kHz.
- 60 W continuous (120 W program, 240 W peak) power handling (128 W)


- Frequency Range38 Hz - 20 kHz (-10 dB)
- Power Capacity200 W Peak
- 100 W Continuous Program Power
- 50W Continuous Pink Noise
- Transformer Taps70 V: 50 W, 25 W, 12 W & 6 W
- 100 V: 50 W, 25 W, & 12 W
- Nominal Impedance8 ohms
- Low Frequency200 mm (8 in) polymer-coated aluminum cone, pure butyl rubber surround.
- High-Frequency25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
- TerminationsScrew-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
- Crossover Network2nd order Low Pass to the woofer and 2nd order High Pass to the tweeter.
- Optimum Air Cavity Behind Speaker40 to 80 liters (1.4 to 2.8 cu ft)

Outside Dimensions
- (H x W x D)334 x 257 x 110 mm (13.1 x 10.1 x 4.3 in), 102 mm (4.0 in) front of wall to back of speaker.
- Maximum Wall Thickness32 mm (1.25 in)
- Cutout Size (H x W)300 x 225 mm (11.9 x 8.9 in)
- Cutout template included.
- Net Weight (ea)3.3 kg (7.2 lb)
- Shipping Weight (ea)7.8 kg (17.2 lb)
- Included AccessoriesCutout template & paint shield
- Optional AccessoriesMTC-128RIF Rough-In Frame for new construction installation to wallstuds.
