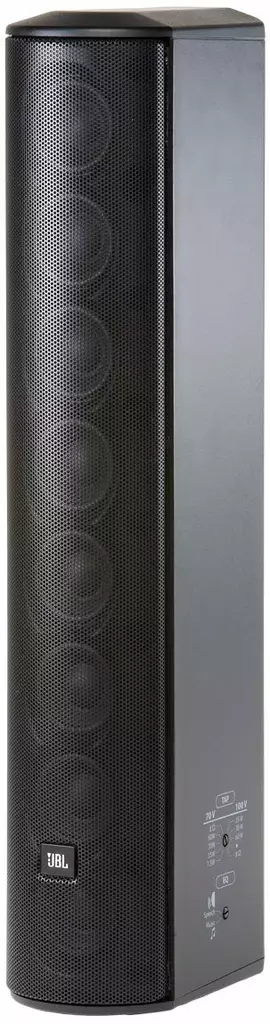

JBL CBT50LA, asennuskaiutin (musta)

JBL CBT50LA, asennuskaiutin (musta)
Passiivinen asennuskaiutin, väri musta.

Constant Beamwidth Technology™ Line Array Column Loudspeaker with Eight 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.
The CBT 50LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control, utilizing analog delay beam-forming and amplitude tapering to accomplish consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor passive column speakers.

FEATURES

-Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
-Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
-Dynamic SonicGuard™ overload protection
-Built-in 70V/100V transformer, plus 8 ohm direct capability.
-Swivel (pan) / tilt wall bracket included.

SPECIFICATIONS
-Components Eight 50 mm (2 in) Full-Range

-Frequency Range (-10 dB) 80 Hz – 20 kHz

-Coverage Pattern Vertical 20° (1.5 kHz - 16 kHz, ±10°)
Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)

-Sensitivity (2.83V@ 1m) 93 dB (speech mode, 2 kHz - 14 kHz)
89 dB (music mode, 300 Hz - 18 kHz)

-Nominal Impedance 8 ohms

-Power Capacity (8 ohm setting) 150W (600W peak), 2 hrs, 100 W (400W peak), 100 hrs

-Max SPL Speech mode: 115 dB cont ave (121 peak), Music mode: 111 dB cont ave (117 peak)

-70V/100V Transformer Taps 60W, 30W, 15W, (7.5W at 70V only), and 8O thru, via switch

-Enclosure Fiberglass reinforced ABS cabinet, painted aluminum grille

-Outdoor Capability IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.

-Colors Black or White (-WH)

-Insert Points Ten M6 insert points on back panel.

-Mounting Included swivel (pan) / tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points within the range. Ten threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.

-Dimensions (H x W x D) 528 x 99 x 153 mm (20.8 x 3.9 x 6.0 in)

-Net Weight 4.1 kg (9.0 lb)

-Included Accessories Swivel (pan) / tilt wall bracket
