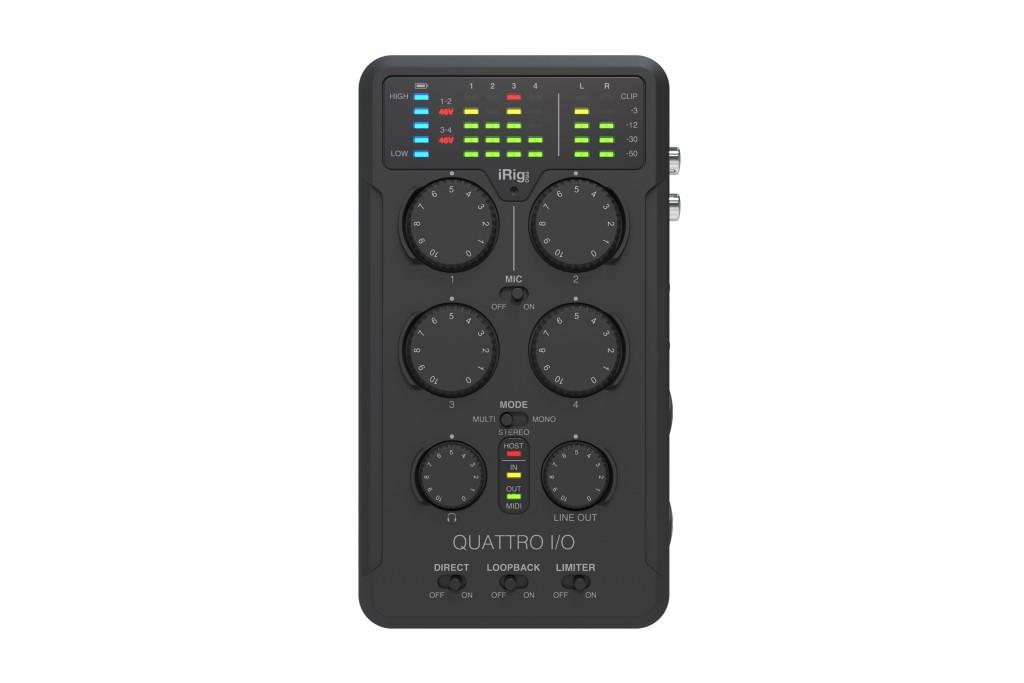

IK Multimedia iRig Pro Quattro I/O äänikortti

IK Multimedia iRig Pro Quattro I/O äänikortti (549,00)

Irig Pro Quattro I/O on ammattitason kannettava 4-in/2-out-ääni- ja MIDI-liitäntä, joka on täynnä kaikkea mitä tarvitset koskemattomaan kenttätallennukseen, sisällön luomiseen, suoratoistoon, podcasteihin ja esiintymiseen. Käsittele kaikkea, mitä elämä sinulle heittää.

iRig Pro Quattro I/O löytää helposti kodin kameralaukustasi tai repustasi. Sen mukana tulee kaikki mitä tarvitset aloittamiseen, mukaan lukien sarja akkuja, kaapeleita ja kameratelineen sovitin.

Ominaisuuksia:
- Ammattimainen mobiili tallennusliitäntä / mikseri
- iPhonelle, iPadille, Androidille, Macille/PC:lle, erillinen
- 24-bittinen, 96 kHz toiminta
- 4 x XLR / 1/4" mikrofoni, kitara, linjatulo phantom-teholla
- 2 x RCA, 3,5 mm linja sisään
- Sisäänrakennettu mikrofoni
- 2 x balansoitua XLR-lähtöä
- Kuulokelähtö suoralla valvonnalla
- Moniraita-, stereo- tai monokäyttö
- Itsenäinen mikseritila
- Sisäänrakennettu rajoitin ja -12 dB turvatila
- USB, 9VDC tai akkuvirta

Specifications:

Microphone Inputs 1-2
- 2 x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Input impedance: 1 kOhms
- Input level, min gain: 0 dBFS is obtained with a -1.5 dBu signal at the XLR input
- Input level, max gain: 0 dBFS is obtained with a -55 dBu signal at the XLR input
- Frequency response: from 10 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
- Dynamic Range: 103 dB(A), min gain
- Phantom power: 48V / -4V

Built-in microphone
- Type: MEMS
- Polar pattern: omnidirectional
- Frequency response: from 30 Hz to 20 kHz
- Max SPL: 110 dBSPL
- Sensitivity: -41.5 dB (1 kHz, 94dB SPL)

Instrument Inputs 1-2
- 2 x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
- Input impedance: 1 MOhms
- Input level, min gain: 0 dBFS is obtained with a +10 dBu signal at the TS input
- Input level, max gain: 0 dBFS is obtained with a -43 dBu signal at the TS input
- Frequency response: from 7 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
- Dynamic range: 103 dB(A), min gain

Microphone Inputs 3-4
- 2 x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Input impedance: 1 kOhms
- Input level, min gain: 0 dBFS is obtained with a -3 dBu signal at the XLR input
- Input level, max gain: 0 dBFS is obtained with a -54 dBu signal at the XLR input
- Frequency response: from 10 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
- Dynamic range: 101 dB(A), min gain
- Phantom power: 48V / -4V

Line Inputs 3-4 (balanced)
- 2 x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Input impedance: 1 kOhms
- Input level, min gain: 0 dBFS is obtained with a -3 dBu signal at the XLR input
- Input level, max gain: 0 dBFS is obtained with a -54 dBu signal at the XLR input
- Frequency response: from 10 Hz to 46 kHz within 3 dB (96 kHz sample rate), min gain
- Dynamic range: 101 dB(A), min gain
- Phantom power: 48V / -4V

Line Inputs 3-4 (unbalanced)
- Unbalanced, TRS 3.5 mm stereo Jack and RCA
- Input impedance: 2.1 kOhms
- Nominal input level: -3.5 dBV (-10 dBV with 6.5 dB of headroom)
- Frequency response: from 16 Hz to 46 kHz within 3 dB (96 kHz sample rate)
- Dynamic range: 93 dB(A)

Line Outputs (balanced)
- 2 x balanced, 3-pin XLR, Pin 2: hot / Pin 3: cold / Pin 1: ground
- Floating balanced outputs with automatic level compensation when working in unbalanced mode
- Output impedance: 150 Ohms balanced
- Output level: 0 dBFS corresponds to +12 dBu
- Frequency response: from 5 Hz to 44 kHz within 3 dB (96 kHz sample rate)
- Dynamic range: 100 dB(A)
- Channels crosstalk: 88 dB(A)

Stereo Output (unbalanced)
- Unbalanced, TRS 3.5 mm stereo Jack
- Output impedance: 150 Ohms balanced
- Output level: 0 dBFS corresponds to +12 dBu
- Frequency response: from 5 Hz to 44 kHz within 3 dB (96 kHz sample rate)
- Dynamic range: 100 dB(A)
- Channels crosstalk: 88 dB(A)

Headphones Output
- TRS 3.5 mm stereo Jack
- Output impedance: 22 Ohm
- Output level: 26 mW/channel (32 Ohm load)
- Frequency response: from 15 Hz to 44 kHz within 3 dB (96 kHz sample rate)
- Dynamic range: 100 dB(A)
