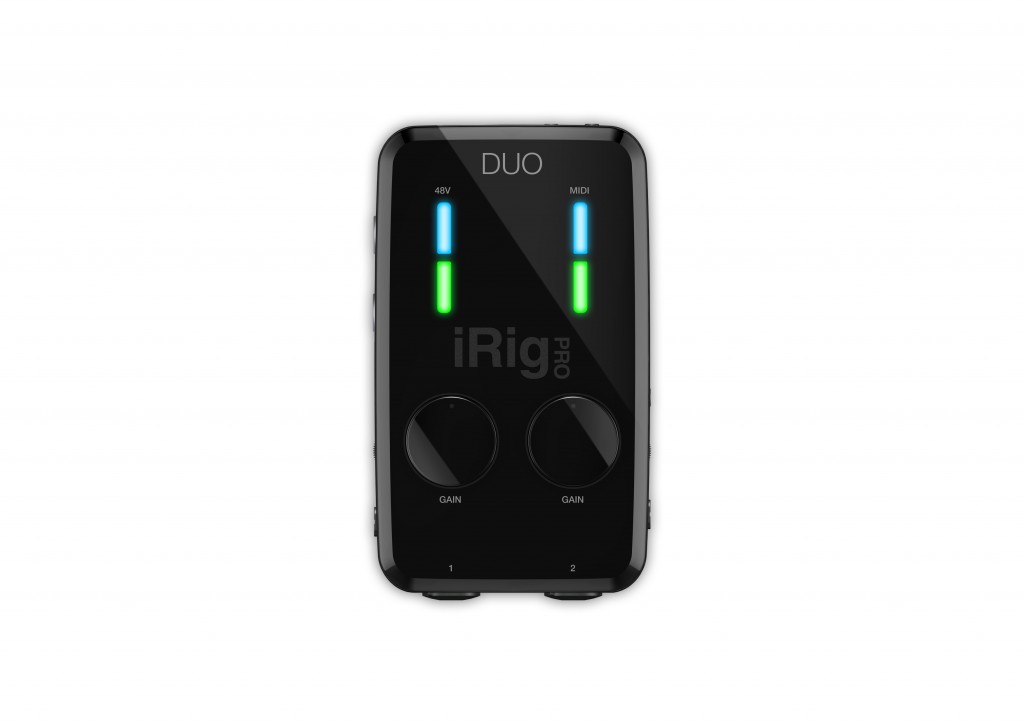

IK Multimedia IRig Pro Duo I/O äänikortti

IK Multimedia IRig Pro Duo I/O äänikortti

Record anywhere, on any device. Mobile 2-channel audio/MIDI interface. Whether you’re recording music, videos, podcasts or live-streams, sometimes you just have to get out of the studio. Whether you’re on location or on vacation, iRig Pro Duo I/O packs everything you need to capture high-quality music and audio into an ultra-portable, easily packable box. Say hello to a full-featured studio in the palm of your hand.

Microphone Input
- Microphone Input: 2x balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
- Microphone Input Level: from 6 mVpp to 1.4 Vpp
- Microphone Input Impedance: approx 2 kOhms
- Gain Range: 48 dB
- Phantom Power: +48V ± 4V
- Frequency Response:
- from 5 Hz to 21 kHz (-3dB) Gain @ min
- from 30 Hz to 21 kHz (-3dB) Gain @ max
- Input Noise: -103 dB(A) Gain @ min
- 86 dB(A) Gain @ max

Instrument Input
- Instrument Input: 2x unbalanced, Hi-Z, TS 1/4” Jack, Tip: signal / Shield: ground
- Instrument Input Level: from 30 mVpp to 6.9 Vpp
- Instrument Input Impedance: 1 MOhms
- Gain Range: 27 dB
- Frequency Response:
- from 2 Hz to 21 kHz (-3dB) Gain @ min
- from 5 Hz to 21 kHz (-3dB) Gain @ max
- Input Noise:
- -104 dB(A) Gain @ min
- -102 dB(A) Gain @ max

Line Output
- Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
- Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
- Maximum Output Level: +16 dBu into 600 Ohms balanced load
- Frequency Response: from 10 Hz to 21 kHz (-3dB)
- Output Dynamic Range: 106 dB(A)
- Output Impedance: 150 Ohms balanced

Common
- AD and DA Resolution: 24-bit
- Sampling Rate: 44.1 kHz and 48 kHz
- Power: USB bus power, battery power (2xAA - included), or DC power supply (9VDC, from 500mA up, positive outside - not included)
- Metering: Multicolor LED)
- Size: 75mm/2.95" x 127mm/5" x 37mm/1.46"
- Weight: 197.2g/6.96oz (batteries excluded)
- Battery Life:
- Recording - Max load*: 3 hours, 30 minutes (NiMH rechargeable); 45 minutes (Alkaline)
- Playback - Min load**: 10 hours (NiMH rechargeable); 3 hours (Alkaline)
*Max load condition: both inputs connected to two 1,5mA phantom powered loads, input gains set to maximum, outputs set to maximum.
**Min load condition is as follows: music playing, phantom power OFF.
