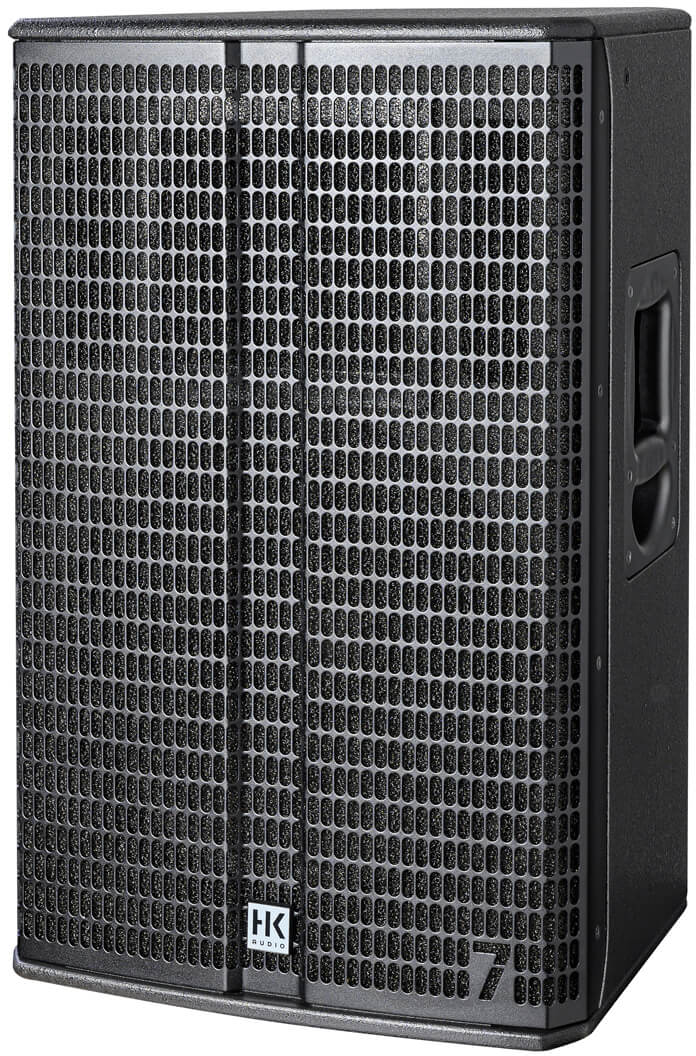

HK Audio Linear 7 115 FA

HK Audio L7 115 FA
- While midrange and high frequencies are naturally more directional, low frequencies tend to radiate in all directions. Excessive bass levels can be quite the problem on and behind the stage. The more serious issue, though, is that promoters are increasingly making demands to limit the sound distribution range. And there is no alternative to cardioid technology when it comes to meeting specifications for low-range frequencies. With its hardware appointments and filter sets, the 18” LINEAR 7 subwoofer provides a fast, easy way to configure effective cardioid setups.
- The L7 effectively maximizes sound pressure level thanks to high-performance loudspeakers, drivers and muscular 2000 watts Pascal Class-D amplifiers and delivers ultra-precise coverage of frequency spectrum thanks to minimized distortion and optimized directivity. Includes a state-of-the-art DSP platform with integrated fully parametric 10-band EQ, delay and limiting for uncompromised individual configuration that offers the latest networking technology to control Theo DSP of every LINEAR 7 cabinet from that one central FOH spot.
- Additional DSP-Out that lets you integrate an added non-network-compatible powered cabinet (such as your LINEAR series active subwoofers) into the network and remotely control it with all the parameters of the LINEAR 7 DSP that´s easy to control with the direct access to easy selectable presets for use as full range cabinet or in a system, even in a non-network setup. The futureproof Audio-Streaming (Certification for MILAN is in the works) operates in high resolution 96 kHz AD/DA converters, FIR-filtering and low latency.
- L7 provides a full range housing for maximum bass output and a user friendly rigging and mounting option.

Technical
- Peak Power: 2.000 watts
•- Power Amp: Class-D, Bi-Amped
•- Woofer: 15" (3" Voice Coil)
•- Tweeter: 1" (1.75" Voice Coil)
•- Horn: 60° x 40° CD, rotatable
•- X-over: ca. 1.8 kHz, FIR
•- Analog inputs : XLR / ¼“ Jack
•- Analog Thru: XLR
•- DSP Out: XLR
•- Network connectors: 2x Ethercon
•- DAN-Protocol (Audio-Streaming): Milan (Certification in progress)
•- DSP-functions fully parametric 10-band EQ with variable filter-characteristics, high pass filter, low pass filter, polarity, level, delay, limiter
•- Operating system for remote software: Windows, Mac OS (app for iPad will follow)
•- Sampling-Rate: 96 kHz
•- Latency: 2.6 ms
•- Mains input: Powercon
•- Power supply : automatic switching power supply (100 to 240 volts)
•- Rigging points : 3 x M8 for use with AP-8
•- Rigging frame : TB + TA-45NQ
•- Setup angle: 35°
•- Front grille: 2 mm powder coated metal grille, black acoustic foam
•- Housing: 15 mm birch multiplex / MDF-hybrid
•- Finish : Environment-friendly Warnex acrylic enamel
•- Handles: 2x MultiGrip
•- Pole mount: Duo Tilt (3° / 7°)
•- Dimensions: 45 x 71 x 45 cm
•- Weight: ca. 31 kg
