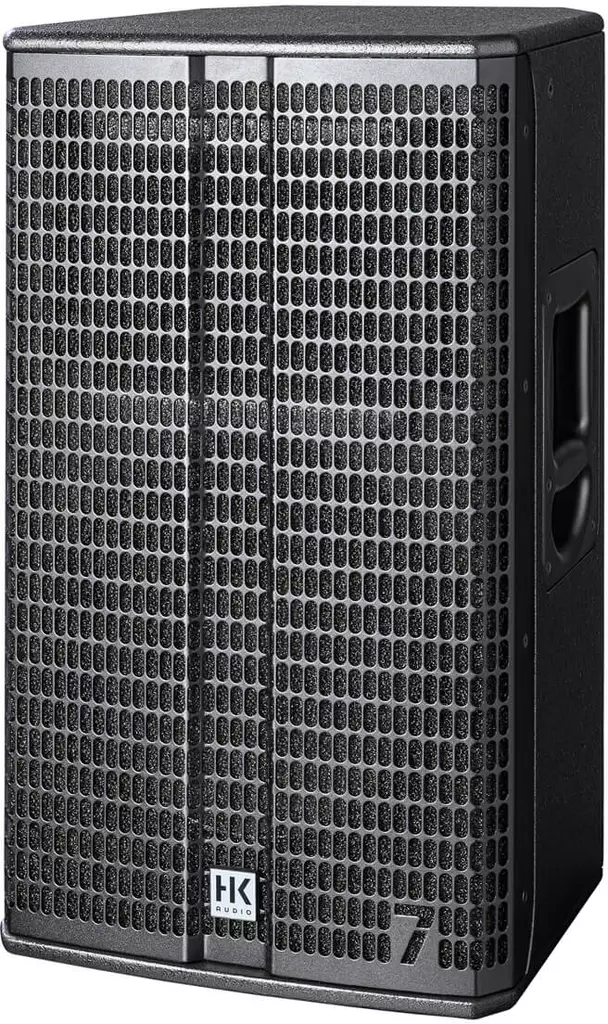

HK Audio Linear 7 112 FA

HK Audio L7 112 FA
- The L7 effectively maximizes sound pressure level thanks to high-performance loudspeakers, drivers and muscular 2000 watts Pascal Class-D amplifiers and delivers ultra-precise coverage of frequency spectrum thanks to minimized distortion and optimized directivity. Includes a state-of-the-art DSP platform with integrated fully parametric 10-band EQ, delay and limiting for uncompromised individual configuration that offers the latest networking technology to control Theo DSP of every LINEAR 7 cabinet from that one central FOH spot.
- Additional DSP-Out that lets you integrate an added non-network-compatible powered cabinet (such as your LINEAR series active subwoofers) into the network and remotely control it with all the parameters of the LINEAR 7 DSP that´s easy to control with the direct access to easy selectable presets for use as full range cabinet or in a system, even in a non-network setup. The futureproof Audio-Streaming (Certification for MILAN is in the works) operates in high resolution 96 kHz AD/DA converters, FIR-filtering and low latency.
- L7 provides a full range housing for maximum bass output and a user friendly rigging and mounting option.

Technical
- Peak Power: 2.000 watts
•- Power Amp: Class-D, Bi-Amped
•- Woofer: 12" (2.5" voice coil)
•- Tweeter: 1" (1.75" Voice Coil)
•- Horn: 70° x 50° CD, rotatable
•- X-over: ca. 1.8 kHz, FIR
•- Analog inputs: XLR / ¼“ Jack
•- Analog Thru: XLR
•- DSP Out: XLR
•- Network connectors: 2x Ethercon
•- DAN-Protocol (Audio-Streaming): Milan (Certification in progress)
•- DSP-functions fully parametric 10-band EQ with variable filter-characteristics, high pass filter, low pass filter, polarity, level, delay, limiter
•- Operating system for remote software: Windows, Mac OS (app for iPad will follow)
•- Sampling-Rate: 96 kHz
•- Latency: 2.6 ms
•- Mains input: Powercon
•- Power supply automatic switching power supply (100 to 240 volts)
•- Rigging points: 3 x M8 for use with AP-8
•- Rigging frame : TB + TA-45NQ
•- Clustering angle: 35°
•- Front grille: 2 mm powder coated metal grille, black acoustic foam
•- Housing: 15 mm birch multiplex / MDF-hybrid
•- Finish : Environment-friendly Warnex acrylic enamel
• - Handles: 2x MultiGrip
•- Pole mount: Duo Tilt (3° / 7°)
•- Dimensions: 37 x 67 x 36.5 cm
•- Weight: ca. 24 kg
