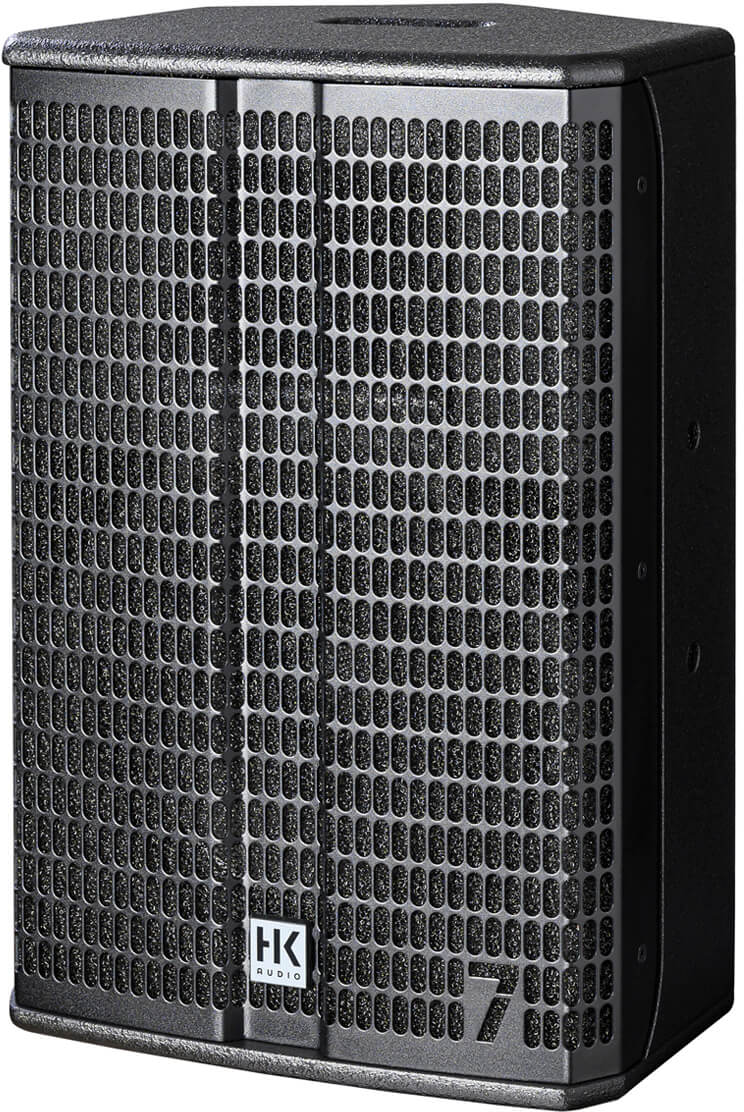

HK Audio Linear 7 110 XA

HK Audio L7 110 XA
- The L7 effectively maximizes sound pressure level thanks to high-performance loudspeakers, drivers and muscular 2000 watts Pascal Class-D amplifiers and delivers ultra-precise coverage of frequency spectrum thanks to minimized distortion and optimized directivity. Includes a state-of-the-art DSP platform with integrated fully parametric 10-band EQ, delay and limiting for uncompromised individual configuration that offers the latest networking technology to control Theo DSP of every LINEAR 7 cabinet from that one central FOH spot.
- Additional DSP-Out that lets you integrate an added non-network-compatible powered cabinet (such as your LINEAR series active subwoofers) into the network and remotely control it with all the parameters of the LINEAR 7 DSP that´s easy to control with the direct access to easy selectable presets for use as full range cabinet or in a system, even in a non-network setup. The futureproof Audio-Streaming (Certification for MILAN is in the works) operates in high resolution 96 kHz AD/DA converters, FIR-filtering and low latency.
- L7 provides a full range housing for maximum bass output and a user friendly rigging and mounting option.

Technical
- Peak Power: 2.000 watts
•- Power Amp: Class-D, Bi-Amped
•- Woofer: 10" (2" Voice Coil)
•- Tweeter: 1" (1.75" Voice Coil)
•- Horn: 80° x 60° CD, rotatable
•- X-over: ca. 1.8 kHz, FIR
•- Analog inputs : XLR / ¼“ Jack
•- Analog Thru: XLR
•- DSP Out: XLR
•- Network connectors: 2x Ethercon
•- DAN-Protocol (Audio-Streaming): Milan (Certification in progress)
•- DSP-functions fully parametric 10-band EQ with variable filter-characteristics, high pass filter, low pass filter, polarity, level, delay, limiter
•- Operating system for remote software: Windows, Mac OS (app for iPad will follow)
•- Sampling-Rate: 96 kHz
•- Latency: 2.6 ms
•- Mains input: Powercon
•- Power supply : automatic switching power supply (100 to 240 volts)
• - Rigging points : 5 x M8 for use with AP-8 or tilt adapter
• - Rigging frame : TB + TA-28N
• - Setup angle: 33°
• - Front grille: 2 mm powder coated metal grille, black acoustic foam
• - Housing: 15 mm birch multiplex / MDF-hybrid
• - Finish : Environment-friendly Warnex acrylic enamel
• - Handles: 2x Bar-Handle
• - Pole mount: Duo Tilt (3° / 7°)
• - Dimensions: 35 x 62 x 30 cm
• - Weight: ca. 20 kg
