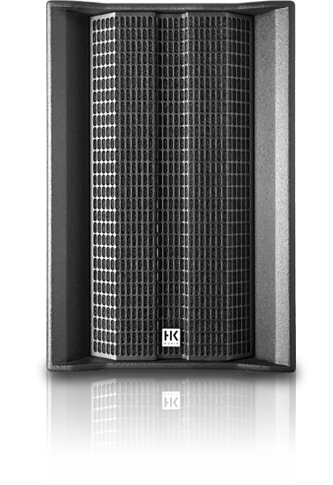

HK Audio Linear 5 LTS A aktiivikaiutin

HK Audio L5 LTS A aktiivikaiutin (2689,00)
- Rajoitettu tarjous!
- suuntaava aktiivi yläpään PA-kaiutin
- kykenee isoihin äänenpaineisiin
- 3 x 8" korvikuorimitteinen kotelo + 1,75" multicell driveri
- 60° x +5°/-25° MCT horn
- 1000 W rms
- 138 dB SPL

Linear 5 LTS A:n salainen ase on Multicell Transformer Technologie (MCT), jonka avulla koko taajuuskaista kantautuu jopa yli 30 metrin päähän.
Se tekee pa-työskentelystä kannattavampaa, sillä suuristakin keikoista selviää pienemmillä kaiuttimmilla.

- 3 x 8" (16 ohms) Neodymium
- 1 x 1,75" (16 ohms) Neodymium
- 1000W Class D (650 W + 350 W, biamped)
- Taajuusalue +/- 3dB: 115Hz - 14kHz
- Taajuusalue -10dB: 100Hz - 20kHz
- Max SPL Peak: 138dB
- Massa: 25 kg


Technical data
Max. SPL @ 10% THD133 dB half space (100 Hz – 12 kHz averaged)
Max. SPL peak @ 10 % THD138 dB half space
Frequency response +/-3 dB115 Hz - 14 kHz
Frequency response -10 dB100 Hz - 20 kHz
Power amp output (peak power)1000 W
Amp typeClass D - biamped
Active protective circuitsUnder-voltage, thermal, short circuit, and over-current protection, Subsonic 24 dB/oct. peak limiter
Low-/mid speaker3x 8", 2" voice coil (neodymium)
HF driver1", 1.75" voice coil
Horn directivity60° x +5°/-25° MCT horn
Active crossover frequency1.7 kHz FIR X-over with 24 dB/Oct.
Analog inputs1x XLR combo balanced
Analog outputs1x XLR Thru balanced
Input sensitivity+4 dBu @ Gain center-notched / L5 System Level
Filter presetsEQ switch: Flat/Contour
Mains connector1x IEC socket with V-Lock cord retainer
Power consumption3.3 A / 230 V nominal according to EN 60065
Pole mountMonoTilt 0°
Rigging points5x M8 (AP-8)
Carrying handles2x MultiGrip
HousingBirch multiplex
FinishBlack acrylic enamel
Front grille2 mm metal grille backed with black acoustic foam
Dimensions (WxHxD)44 x 68 x 46.1 cm 17-5/16 x 26-25/32 x 18-5/32"
Weight24.9 kg / 54.9 lbs
