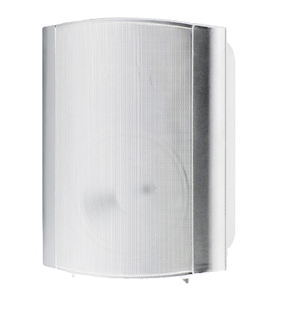

HK Audio IL80 TW valkoinen asennuskaiutin

HK Audio IL80 TW valkoinen asennuskaiutin (328,00)
- julkistiloihin, terasseille tai kotiin esim. karaokekaiuttimeksi
- 2-tie rakenne, 8" + 1" elementeillä
- 50 Hz - 20 kHz
- 60 W rms, 120 W prg, 180 W peak
- joko 70/100 V linjakäyttöön
- tai mataimpedanssi käyttöön, jolloin impedanssi 8 ohm
- 110 dB SPL
- mukana seinä-/ kattoteline
- väri valkoinen
- saatavissa samaan hintaan myös mustana

This two-way fullrange speaker delivers excellent audio quality that belies its compact dimensions.
It is ideal for covering short to middle distances such as in foyers or bars.
The IL 80 TB/TW"s polymer housing is trapezoidal to prevent the formation of standing waves as well as to
facilitate corner mounting and inconspicuous installation in many different kinds of rooms.
This enclosure provides satisfying fullrange sound even without a subwoofer.
It features an 8" woofer and a 1” tweeter with neodymium magnets.
The two are configured in twin axial array and addressed via an internal passive crossover.
The switchable 100V transformer provides five power taps, selectable via rotary switch.
Its nominal power handling capacity is 60 watts RMS.
This enclosure is available in white (TW) and in black (TB).
A bracket for wall and ceiling mounting is included.

Product ClassInstall Sound
Power-handling nominal (RMS)60 W
Power-handling, program120 W
Power-handling, peak180 W
Nominal impedance8 ohms
Maximum SPL, @ 10% THD 109 dB
Maximum SPL, 1W/1m (@ 3% THD) 107 dB
Sensitivity 1W/1m89 dB
Frequency response +/- 3 dB60 Hz bis 20 kHz
Frequency response -10 dB50 Hz bis 20 kHz
Low/Mid Speaker8"
HF Driver1" tweeter
Crossover frequency2,5 kHz
Connectionsbinding posts 2, 5, 10, 20, 40 W, Off
Enclosurepolymer
Grillemetal grille
FinishWhite or Black
Dimensions (WxHxD)27 cm x 37 cm x 22 cm
Weight5,4 kg / 11.88 lbs.
