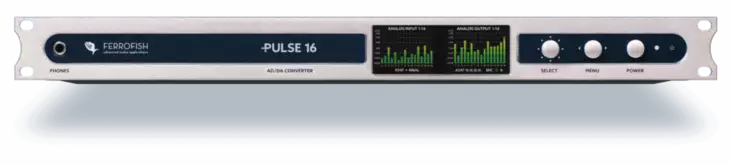

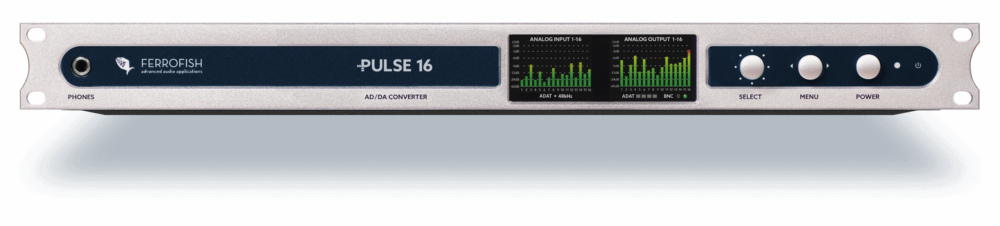

Ferrofish Pulse16 konvertteri

Ferrofish Pulse16 AD/DA converter
- Pulse16 muuntaa 16 x 16 studiotason balansoitua analogista tuloa ja lähtöä 96 kHz saakka ADAT I/O: ksi
- Low Latency Cirrus Logic -muuntimet
- Pulse16 tarjoaa jopa + 20dBu: n studiotasot, yksitellen säädettävissä 1dB: n välein, 32 TRS-liittimeen

The PULSE16 converts 16 x 16 studio-grade balanced analog inputs and outputs up to 96kHz to ADAT I/O. As a cost-effective and mature interface, ADAT is already available almost everywhere – so expanding your studio with the PULSE16 by 16 x 16 analog channels is done in a few steps.
The Low Latency Cirrus Logic converters, accompanied with a temperature-compensated clock and jitter reduction PLL, guarantees best crystal clear sound. All this packed in a compact 1HU, the PULSE16 delivers studio levels of up to +20dBu, individually adjustable in 1dB steps, brought to 32 TRS connectors. Thanks to the 4 x 4 ADAT interfaces, 16 x 16 channels can still be converted without any problems even at 96kHz.
Configuring the device is a breeze thanks to the two TFT screens. No need to consult the manual, every information is displayed clearly on the screens. Remote control via MIDI and MADI is also possible.
The headphone can be connected to any analog or digital input or output: ideal for control or monitoring.
If your studio grows, the PULSE16 grows with it: MADI I/O can be added via a MADI-SFP module together with an upgrade of the firmware. The PULSE16 then becomes a full-fledged PULSE16 MX.
Keep track of all 32 analog channels at any time: Everything is shown clearly on two TFT screens.

Specs:
MADI I/O (AES10)
PULSE 16 MX (Multimode included)
PULSe 16 optional via SFP
SFP port for MADI optical Multimode or Singlemode SFP module
- 64 channels @32kHz, 44.1kHz, 48kHz
- 32 channels @64kHz, 88.2kHz, 96kHz
- 16 channels @128kHz, 176.4kHz, 192kHz
Support of MIDI over MADI.
Latency: 2 samples

Analog Inputs (AD)
2 x CS5368 (Cirrus Logic)
16 x TRS ¼” (6.3mm), female
- Analog switches: +20dBu, +13dBu, +4dBu
- Digital gain: +20dBu … -8dBu, 1dB steps
Latency
- @48kHz: 12/fs, 0.25ms
- @96kHz: 9/fs, 0.09ms
- @192kHz: 5/fs, 0.03ms
OpAmps
RC4580
Level indicator
TFT screen, 28 levels

Analog Outputs (DA)
2 x CS4385 (Cirrus Logic)
16 x TRS ¼” (6.3mm), female
- Digital gain: +20dBu … -8 dBu, 1dB steps
Latency
- @48kHz: 7.8/fs, 0.16ms
- @96kHz: 5.4/fs, 0.06ms
- @192kHz: 6.6/fs, 0.03ms
OpAmps
RC4580

Headphones Out
- 1 x ¼” (6.3mm) TRS jack, stereo.
- Selectable mono or stereo source.
- Digitally controlled volume level.

ADAT I/O
4+4 optical ports (8 channels each with 48 kHz)
- 16 channels @32kHz, 44.1kHz, 48kHz
- 16 channels @64kHz, 88.2kHz, 96kHz
- 8 channels @128kHz, 176.4kHz, 192kHz (SMUX4 – only with installed MADI MX option)
Latency: 2 samples

MIDI I/O
- 2 x DIN5 connector for remote control of the unit
- Conversion MIDI <> MIDI over MADI possible (MADI MX option required.)

Wordclock I/O
- BNC: 1 x input, 1 x output
- 75 Ohm Termination switchable for input

Power Supply
12V, 3A
- 1 x input jack with screw lock.
- Power required: 12VA in operation, 0,1VA in standby mode (Efficiency Level VI)
- Internal resettable polyfuse
- 1 x power supply included

Dimensions
- 1HU
- Depth: 19cm (7.5”) (including connectors)
- 2 kg
