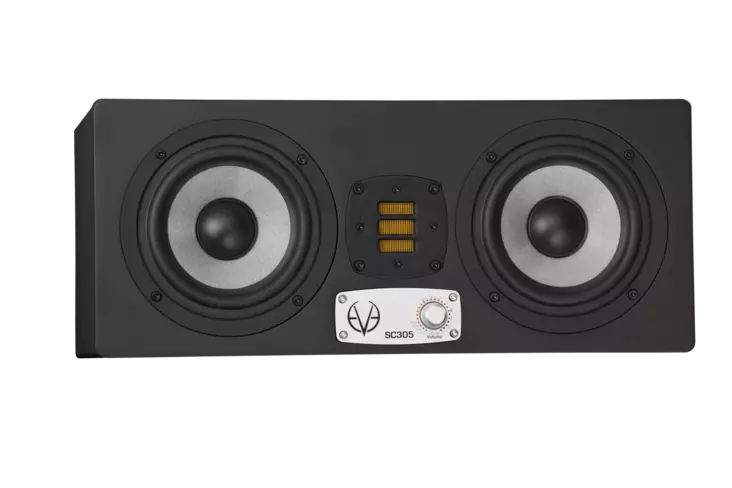

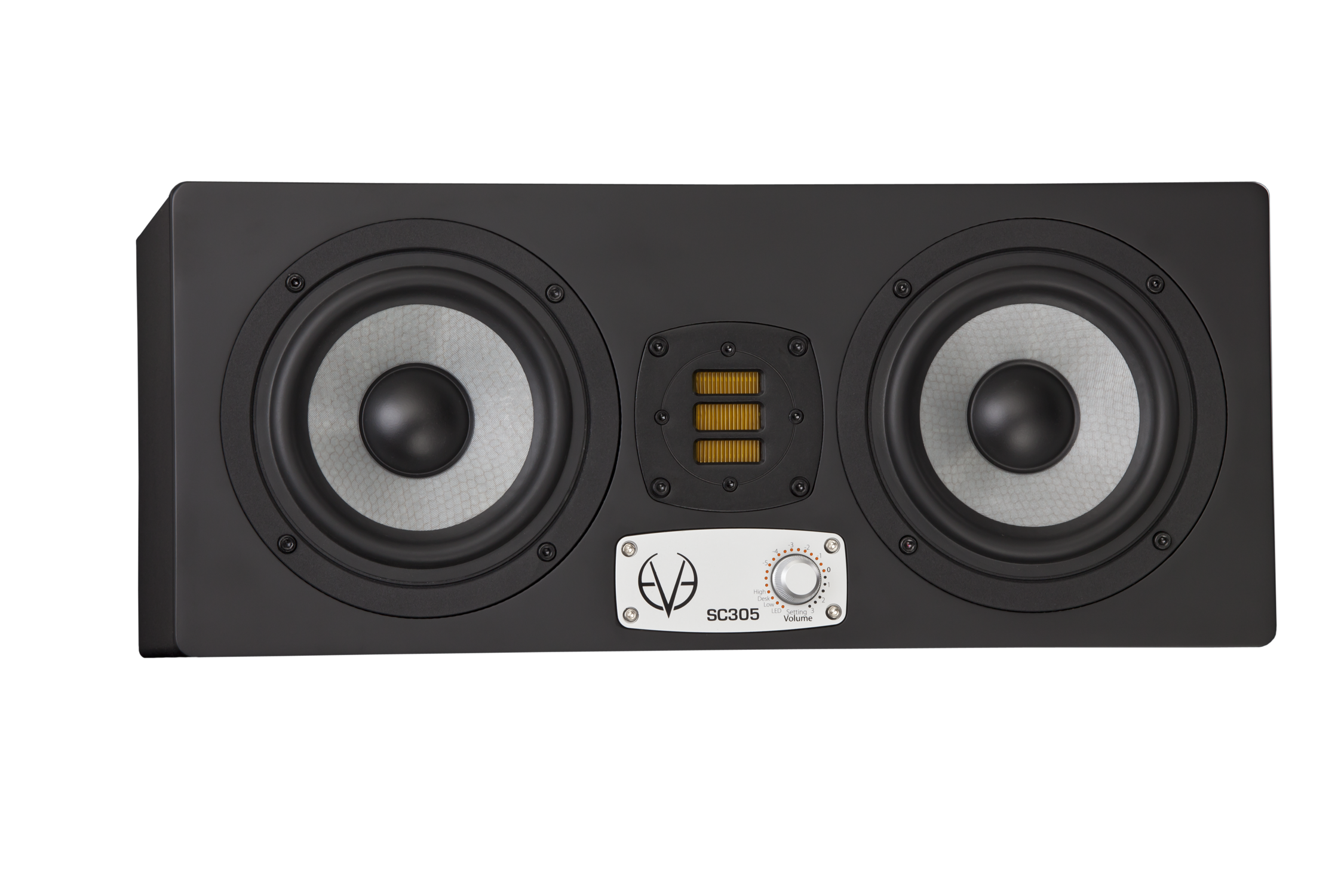

Eve Audio SC305 aktiivikaiutin

Eve Audio SC305 aktiivikaiutin
- Aktiivinen ja kompaktin kokoinen 3-tie studiomonitori
- Stereo- ja surround-sovelluksiin sekä keskikaiuttimeksi
- Lähikenttä ja midfield
- Kehittynyttä DSP-signaaliprossesointitekniikkaa
- 5" SilverCone lasikuituvahvisteinen bassoelementti
- 5" SilverCone lasikuituvahvisteinen basso/keskiäänielementti
- AMT RS3 nauhadiskantti
- Taajuusvaste (- 3 dB, vapaakenttä): 50 Hz - 21 kHz
- Äänenpaine: 108 dB SPL
- Teho: 150 W, tri-amped
- Vahvistimet: 3 x 50 W PWM
- DSP ohjattu volumesäätö, EQ sekä huonekorjaussäädöt (Burr-Brown 24-bit/192kHz)
- Diskantti- ja bassosäätö sekä pöytäheijastumien korjaussäädöt
- Jakotaajuudet: 350 Hz, 3000 Hz
- Bassoelementille dippikytkin (vasen/oikea) stereokäytössä puolesta riippuen
- Sisääntulot: XLR (balansoitu), RCA (balansoimaton)
- Suojalimitteri
- Taakse aukeavat refleksiportit
- Mitat: 425 x 180 x 250 mm
- Paino: 8.5 kg
- Kappalehinta.

Our three-way systems are designed around the concept to distribute the frequencies properly between all individual components and raise the efficiency of your speakers effectively.

With the SC305 one of the woofers is delivering sound only up to 350 Hz, functioning as a kind of "bass woofer". The other woofer gives you a fuller range up to the 3000 Hz crossover frequency as a bass-midrange driver.

This means less effective physical work being made by each individual woofer, which in turn will result in less mechanical inertia and a more efficient sound transmission. Both woofers consist of our proprietary 5" SilverCone, the same that is used in the smaller SC205 model and features our sophisticated low distortion copper cap magnet system. However, due to the fact that two of these woofers are being used simultaneously, you get a bigger frequency response - down to 50 Hz.

The SC305 also makes use of the proprietary AMT RS3 tweeter, which uses a bigger front plate and a bigger internal magnet to drive the AMT tweeter with greater efficiency.

The three 50 W PWM power amplifiers won't leave you lacking any power either. All in all, the SC305 will probably be regarded as the single most detailed three-way monitor speaker in the market for its specific size and price range.

And no worries determining how to place the SC305 in your room or studio properly. Our DSP section will assist you in choosing the speaker for left and right hand side. So you will always get proper symmetry between your speakers, instead of having to move them around as usual. With a DIP switch, located on rear of the speakers these settings for room adaption can be temporarly locked.

As with every other EVE Audio speaker, you get both balanced XLR inputs and unbalanced RCA inputs for greater convenience.

With every EVE Audio speaker, you also get high resolution DSP electronics. One push knob operation and you will have access to accurate volume control and several different filter settings that will help you tailor your monitors to the way you work. And if you always avoid digital processing, we've got you covered. The DSP engine is supported with a high quality A/D converter (24bit/192kHz) from Burr-Brown, which delivers a pristine signal to the DSP section. And since the PWM amplifiers are directly connected to the DSP, no additional conversion is necessary.
