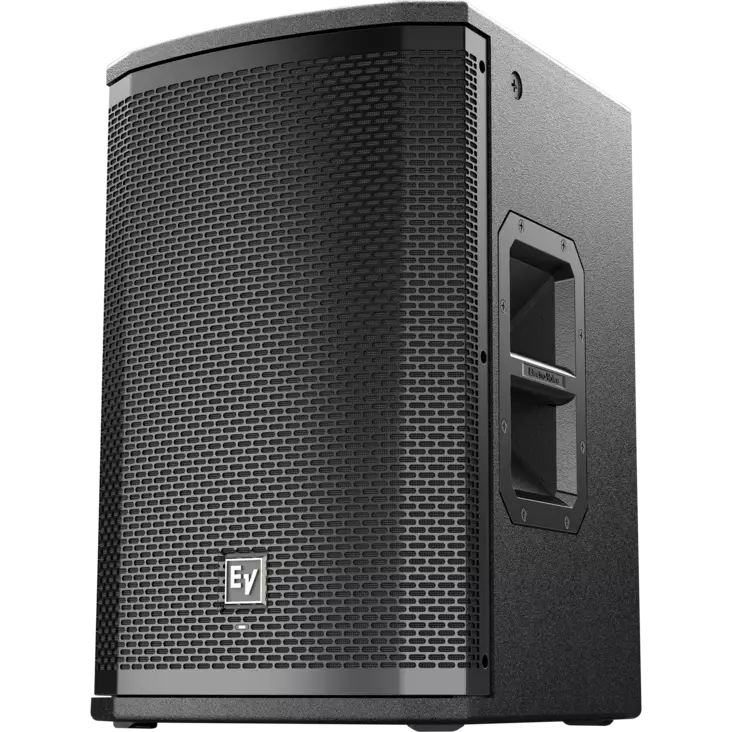

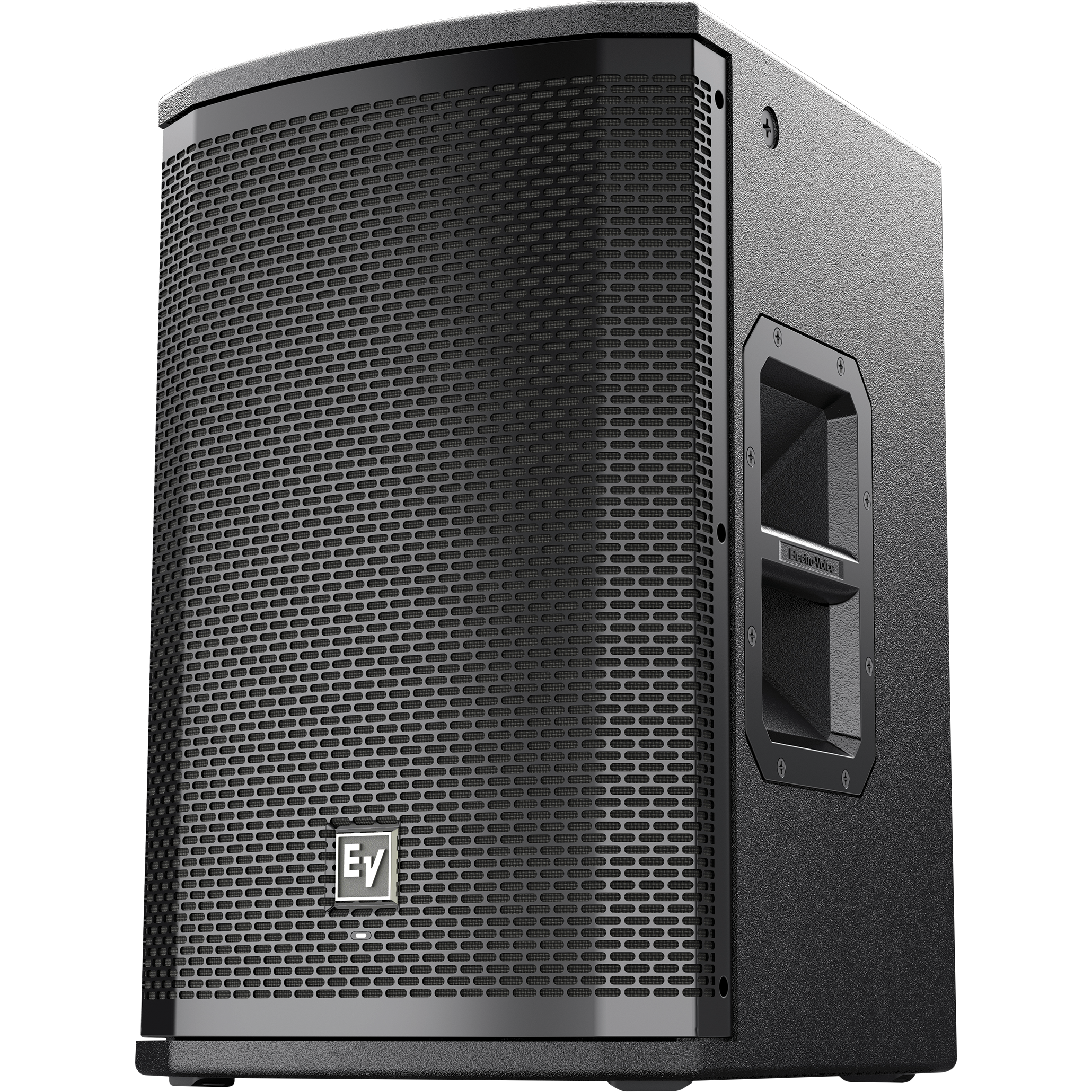

EV ETX-10P aktiivikaiutin

EV ETX-10P aktiivikaiutin

- 10-inch LF SMX woofer
- 1.25-inch HF titanium compression driver
- 2000 W Class-D power amplifier with integrated FIR-Drive DSP
- 134 dB peak SPL

Frequency Range	65 Hz – 20 kHz Full space measurement using the music DSP preset and 150 Hz low pass.
Maximum SPL	134 peak dB Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
Power Consumption	100 – 240 V~, 50 – 60 Hz, 1.6 – 0.8 A Current rating is 1/8 power.
Power Rating	2000 W
Frequency Response	85 Hz – 20 kHz Full space measurement using the music DSP preset and 150 Hz low pass.
Coverage (Nominal -6 dB) H	90 °
Coverage (Nominal -6 dB) V	60 °
LF Transducer	SMX2100 254 mm (10 in)
HF Transducer	DH3-B 1.25-in titanium compression driver
Crossover Frequency	1700 Hz
Connector Type	(2) XLR/TRS combo jack and (1) XLR link output
Enclosure Material	18-mm, 13-ply birch plywood with EVCoat
Grill	16AWG steel with powdercoat
Suspension	(8) M10 suspension points
Height	526 mm (20.71")
Width	330 mm (12.99")
Depth	365 mm (14.37")
Weight Net	20.3 kg (44.75 lbs)
Shipping Weight	22.9 kg (50.49 lbs)
