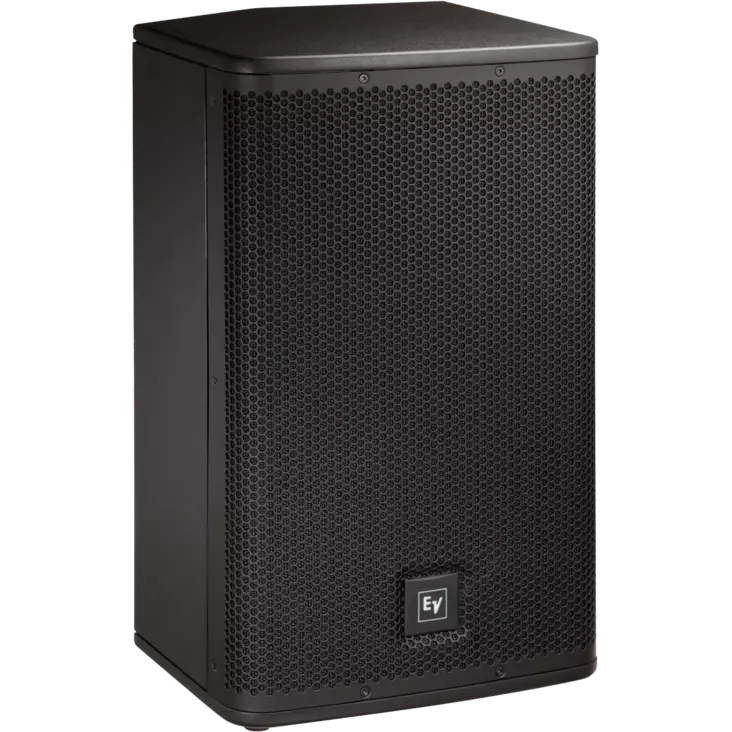

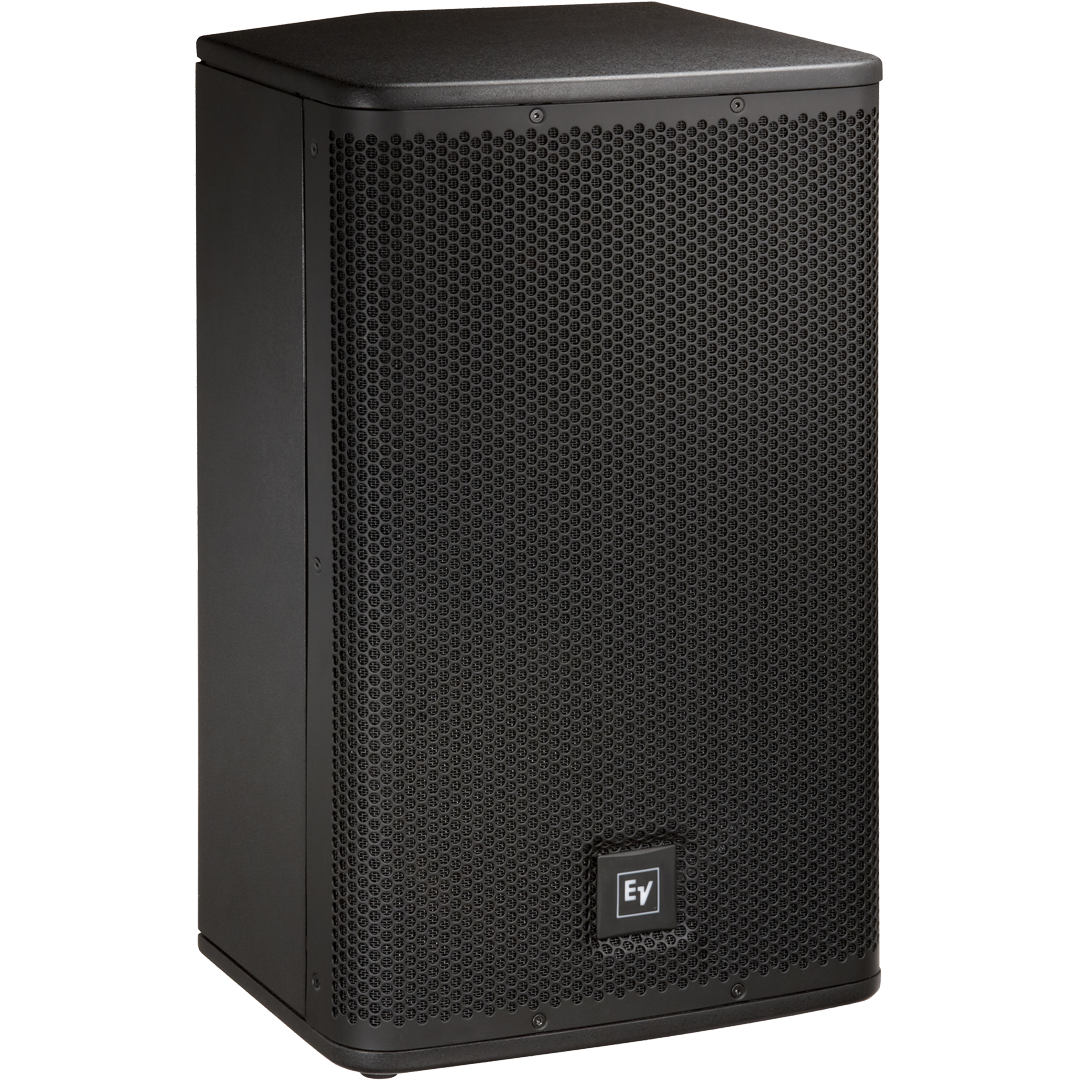

EV ELX 112 passiivikaiutin
- Tuotekoodi: EV-ELX112
- Takuu: 1 vuosi
- Paino pakattuna: 16 kg
- Loppuunmyyty
Electro-Voice ELX 112 PA-kaiutin (590,00)
EV ELX 112, passiivinen 2-tie PA kaiutin, 12" kartioelementti, 1,5" diskantti, taajuusvaste 55Hz - 20 kHz, 132 dB Max äänenpaine, 250W RMS (1000 W Peak) , 90° x 50° säteilykulma, Pole Mount, Mitat 607 x 362 x 340, Paino 15,8 kg
Tekniset tiedot:
| Rakenne | 2-tie |
| Elementit HF/LF | 1" / 12" |
| Suuntakuvio (H ° / V °) | 90 x 50 |
| Taajuusvaste (Hz) [-10db] | 82 - 18,000 |
| Maksimi äänenpaine (dB SPL) | 132 |
| Tehonkesto (W RMS/PRG) | 250/- |
| Herkkyys (dB 1W/1m) | 94 |
| Nimellis impedanssi (ohm.) | 8 |
| Liitännät | Speakon |
| Mitat (cm K x L x S) | 60,7 x 36,2 x 34 |
| Paino (kg) | 16 |
Technical Specification:
Axial Sensitivity (SPL, 1 W @ 1 m) 94 dB
Case Material 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
Color Black
Speaker Type Full-range, two-way, wedges
Woofer Size 304.8 mm (12")
Frequency Response (-3 dB) 82 - 18000 Hz
Frequency Response (-10 dB) 55 - 20000 Hz
Internal Crossover Yes
Recommended High-Pass Frequency 45 Hz
Max. SPL/1m (calc) 132 dB Half Space
Coverage (Nominal -6 dB) H 90 ° Coverage (Nominal -6 dB) V 50 °
System Power Handling (Continuous/Program/Peak) 250//1000 Watts
LF Transducer (1) EVS-12K, 305mm (12") Woofer
HF Transducer DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
Crossover Frequency 21000 Hz
Nominal Impedance (Passive) 8 Ω
Minimum Impedance 7 Ω
Connector Type Parallel Neutrik® NL4
Grill 18GA Steel with Black Powdercoat
Height 607 mm; Width 362 mm ;Depth 340 mm ; Weight Net 16 kg
